Holder C250 - Operating Elements to the Right of the Op; Operating Elements Behind the Seat, con

Description C250 ... C370
60 Translation of Original Operating Manual 156319-04

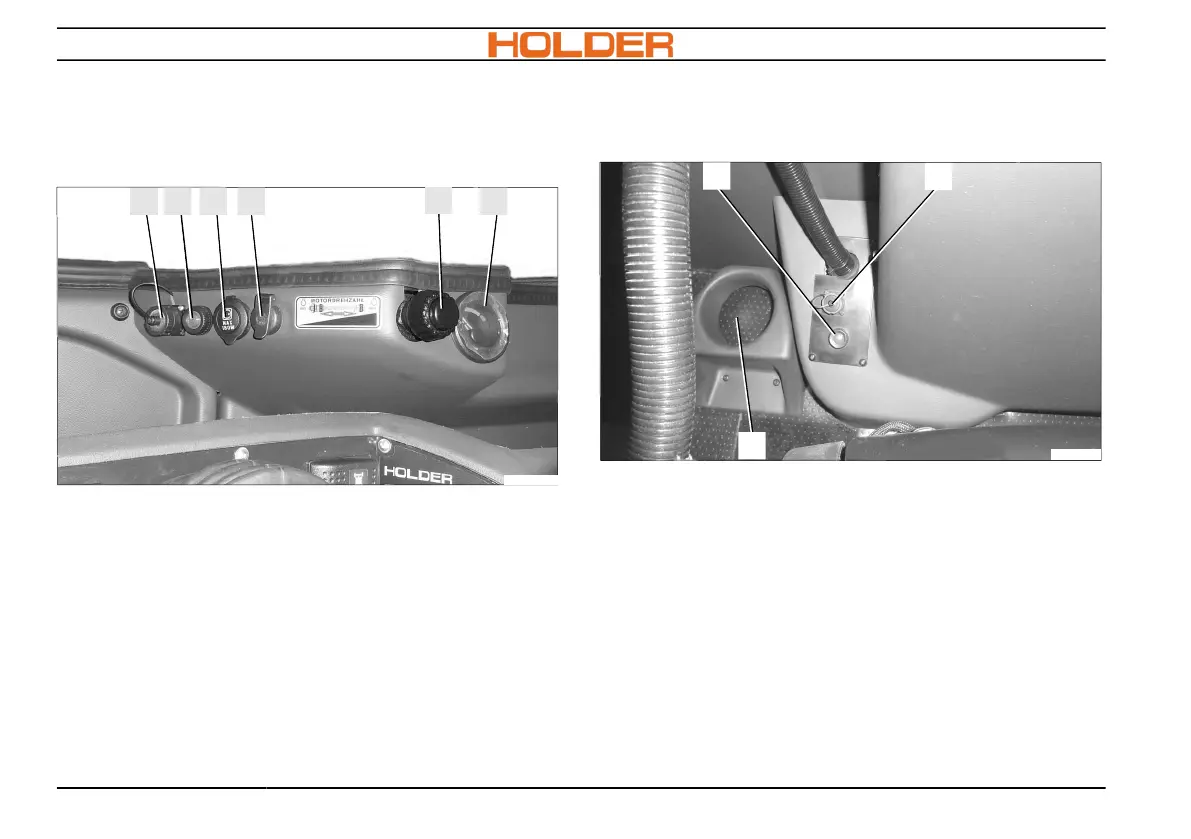

Operating elements to the right of the oper-
ating console
C250, C270
1
C270_007a
2 3 4
5
6
C250, C270
1 Diagnosis socket for vehicle electronics
2 Indicator lamp for faults in the drive con-
troller
3 12 V vehicle socket (cigarette lighter)
4 12 V vehicle socket (2-pole)
5 Engine speed fine adjustment control
6 Hydraulic oil temperature indicator
Operating elements behind the seat, console
Behind the seat C350, C370
C370_003
2
1
10
1 Diagnosis plug for vehicle electronics
2 Indicator lamp for faults in the drive con-
troller
10 Cup holder
