• To move awning out of carport position reverse above steps.
Securing Awning for T
ravel
Before travel, check the following:
• Awning is fully retracted to side of motor home.
• Black locking knobs are tightened.
• Storage locks are down in locked position.
• Brake control is in full down (locked) position and no red warning is showing.
• Bottom of front and rear arms are latched properly into bottom brackets.
• Catch rod is stored away.

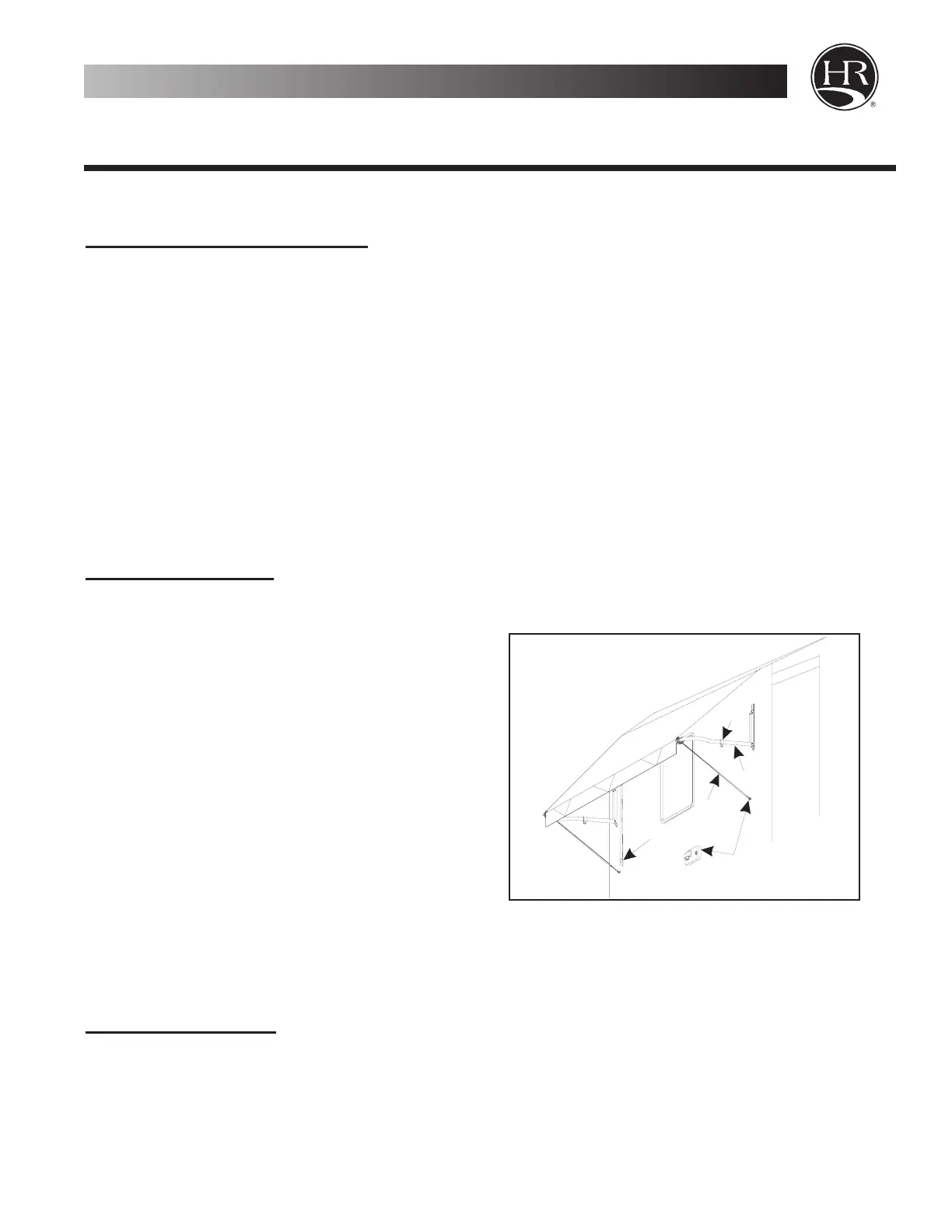

Slide-Out Awning
T
o Extend Awning
Slide-out room must extend equally at both ends so that awning fabric will be taut
when room is fully extended.
• Move slide-out room all the way out.
• Find pull rod.
• Using pull rod push arm locks (one
on each end arm) up all the way to
the unlocked position.
• Hook pull rod end into pull strap of
awning and pull awning and arms
out all the way.
• Hook end of side strap loops (one on
each end of awning) on to side strap
hooks on slide-out room.
• Slowly release awning.
• Pull strap to one side, remove pull rod and store strap.
• Store pull rod.
To Retract Awning
• Find pull rod.
• Using pull rod, position pull strap in center of awning.
• Pull awning out all the way.
Admiral 3-17
Appliances & Equipment
Appliances & Equipment
