Holiday 2000 - Dash Panel Controls

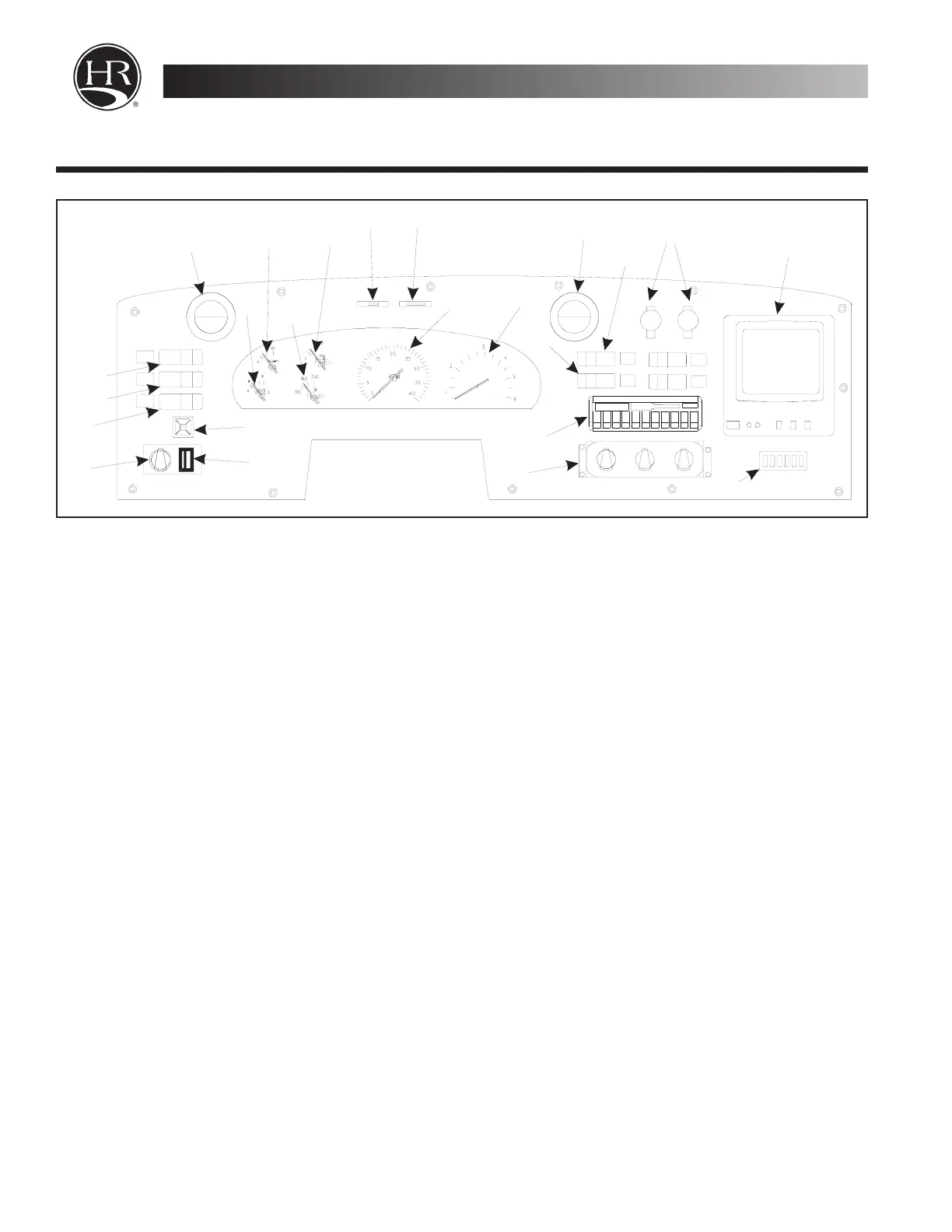

Dash Panel
1. Headlight Switch - Turns headlights on and off.
2. Panel Light Switch - Dims dash lights.
3. Power Mirrors Controls - Left lever controls movement of driver’s side mirror and
right lever controls movement of passenger’s side mirror.
4. Mirror Defrost Switch - This switch will turn on heater in the exterior power mir-
rors to defrost them for better visibility.
5. Accessory Switch
6. Auxiliary Start Switch - If chassis battery cannot start the motor home you can
push this switch to borrow from the coach battery to jump start motor home.
7. Air Conditioner Vent - Louvers in vent will direct air either right, left, up or down.
8. Voltmeter - Shows voltage of chassis electrical system.
9. Oil Pressure Gauge - Registers oil pressure of engine. A reading in midrange area
at average engine temperature is considered average.
10. Engine Temperature Gauge - Normal operating temperatures is 190
o
F to 240
o
F.
