mum fuse sizes allowable. Installing fuse sizes other than those listed can cause elec-
trical wiring to become overloaded and create hazardous situations.
Fuse assignments are as follows:
1. Slide-Out Room - 15 amp C.B. 20. Rear Vision (Opt) - 5 amp Fuse
2. LP Detector - 3 amp Fuse 21. Leveling Jacks (Opt) - 5 amp Fuse
3. Power Seat (Opt) - 15 amp C.B. 22. Accessory Switch - 15 amp Fuse
4. Power Seat (Opt) - 15 amp C.B. 25. Air Conditioner - 20 amp Fuse
5. Storage Lights - 15 amp Fuse 26. Jack/Antenna Warning Lamp - 5
6. Bedroom Slide-Out - 15 amp C.B. amp Fuse
7. Auxiliary Start/TV Amp - 7.5 amp Fuse 27. TV Cutout Relay - 7.5 amp Fuse
8. Cigarette Lighter - 15 amp Fuse 28. Galley Slide-Out Room Ign. Relay -
9. Map Lights - 7.5 amp Fuse 7.5 amp Fuse
10. C.B. Radio - 2 amp Fuse 29. Mirror Heaters - 15 amp Fuse
11. Service Light - 7.5 amp Fuse 30. Mirror Motors - 1 amp Fuse
12. 12V Receptacle - 15 amp Fuse 33. Step/Isolator Relay - 7.5 amp Fuse
13. Step Switch - 7.5 amp Fuse 34. Marker Lights - 7.5 amp Fuse
14. Step Motor - 25 amp Fuse
NOTE: Number’s 15, 16, 17, 18, 19, 23, 24, 31, 32 are not used.

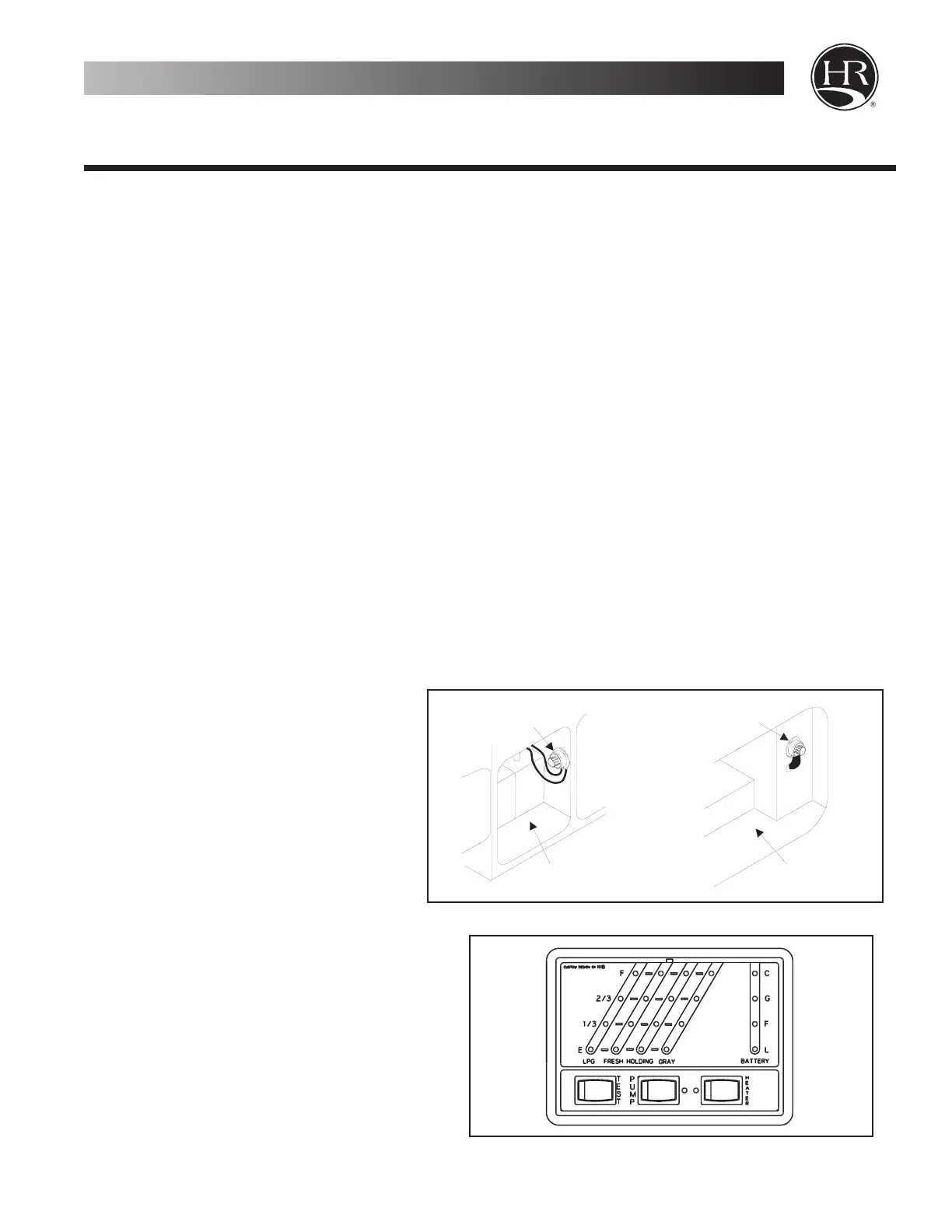

Power Disconnects
The disconnects are mounted
in outside roadside compartments:
HOUSE BATTERY disconnect turns
power ON or OFF from the house
batteries and CHASSIS BATTERY
disconnect turns power ON or OFF
from chassis battery. Both discon-
nects supply 12V DC power to fuses
and circuit breakers inside distri-
bution panel.
Batteries
House batteries power level can be
check by pushing the test button on the
left side of the control panel.
Batteries are located on the curb
side of the motor home and are charged
two ways:
Admiral 6-7
HOLIDAY RAMBLER
2000
Electrical Systems
Electrical Systems
