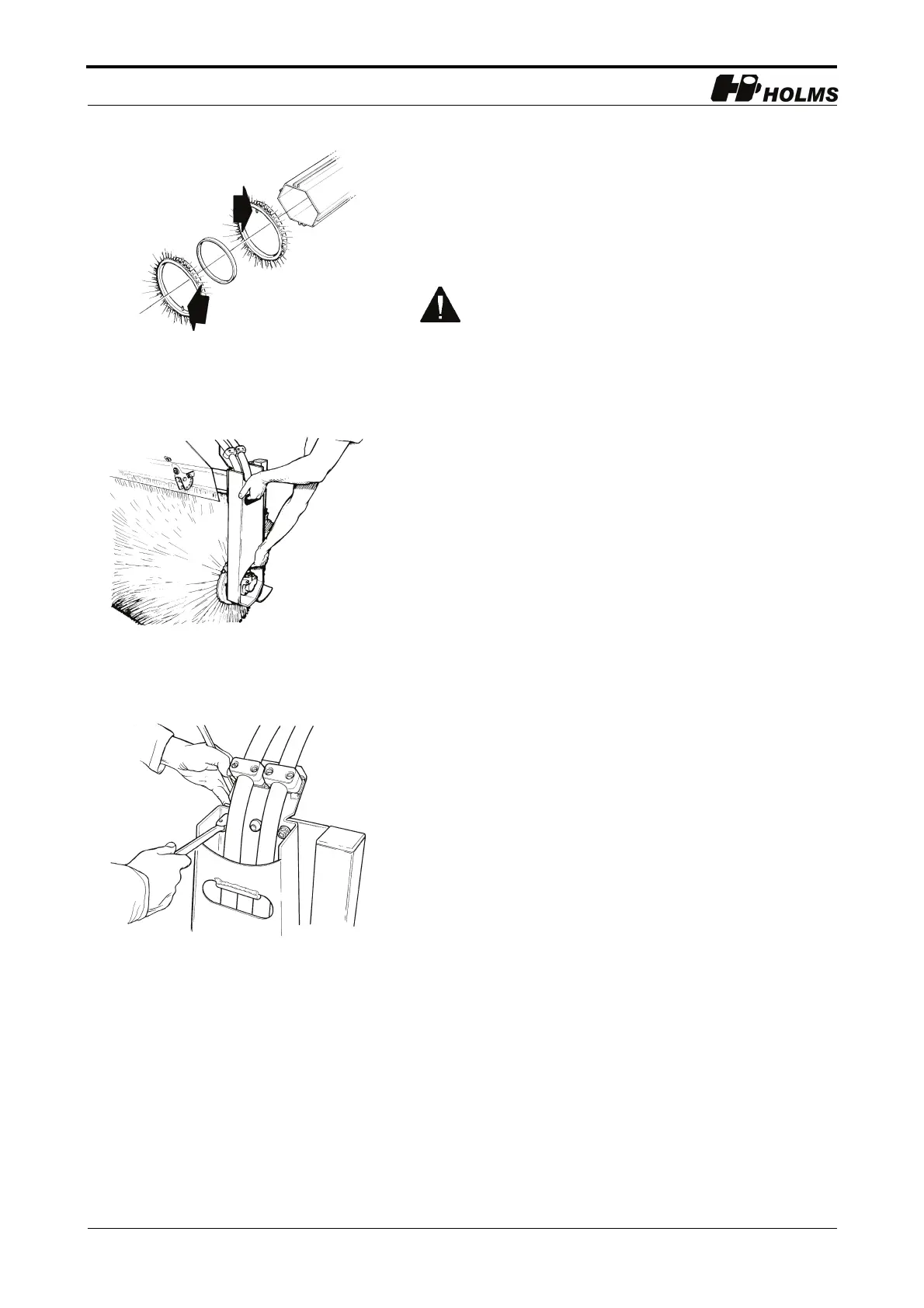

Attaching the roller brush
1. Push the roller brush into place on the carrier housing
at the fixed end.
2. Lift the end with the hydraulic motor and carrier onto
the two guide pins (figure 26).
3. Fit the four fixing screws on the end. See figure 27.
4. Fit the attachments for the hydraulic hoses on the bar
tube.
Risk of crushing.
25.Placement of the brush
rings’ pins
