2English
Refer to the “ATEC Breast Biopsy and Excision System Operator’s Manual” for detailed
console instructions.
Device Preparation – Firing or Non-ring Device (all
steps to be performed per standard interventional
technique)
1. Assemble canister, place in the canister holder on the top of the console and connect
vacuum-line assembly from console to the top port of canister lid. Ensure canister lid
and large port cap are secure and sealed to avoid vacuum leaks.
WARNING: Before use, inspect the protective packaging and needle to verify that
neither has been damaged during shipment. If it appears that the packaging or needle
has been compromised, do not use the needle.
2. Place device package on console workspace.
3. Open package. Leave protective sheath on the device tip.
4. Open the saline bag, remove cap, spike saline bag and place the bag on the hook on
the side of the console. Place saline line through pinch valve.
5. Connect tubing set to console and canister. Attach red sleeve to red device receptacle
on console, black sleeve to black device receptacle on console and blue vacuum
into the “Vacuum” port on the canister lid. For more detailed console connection
instructions, please refer to the “ATEC Breast Biopsy and Excision System Operator’s
Manual.”

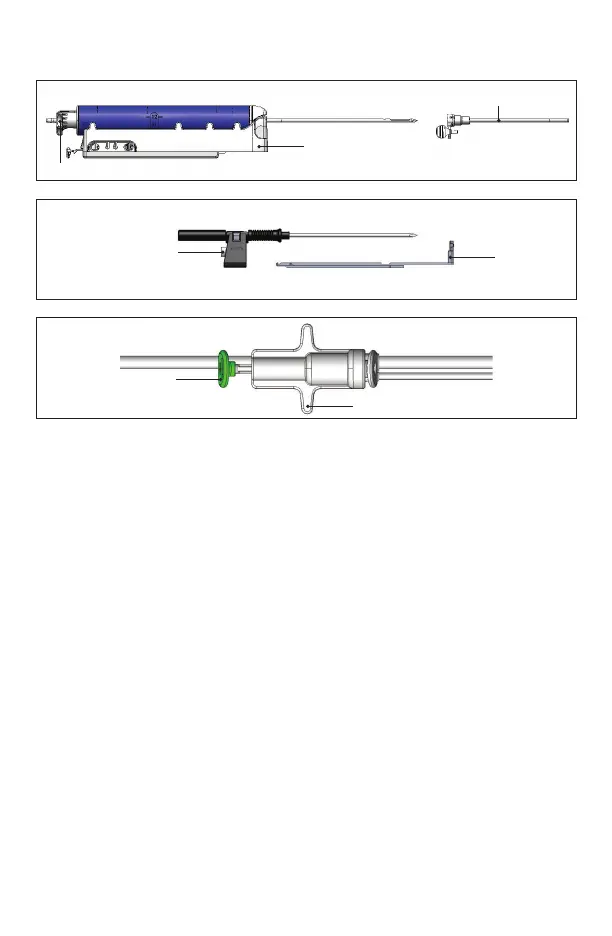

Figure A
Figure B
Figure C
Eviva Image
Stylet & Adapter
Remote Valve: Pre-re Position
Thumb Wheel
Eviva Device
Introducer
Adapter
Stylet Bracket
Green Button
Remote Valve
