Assembly Instructions 2/5
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* After assembly, item must be level to work properly. Use the included adjustable levelers to level.
* Use a soft cloth between these parts and the floor.

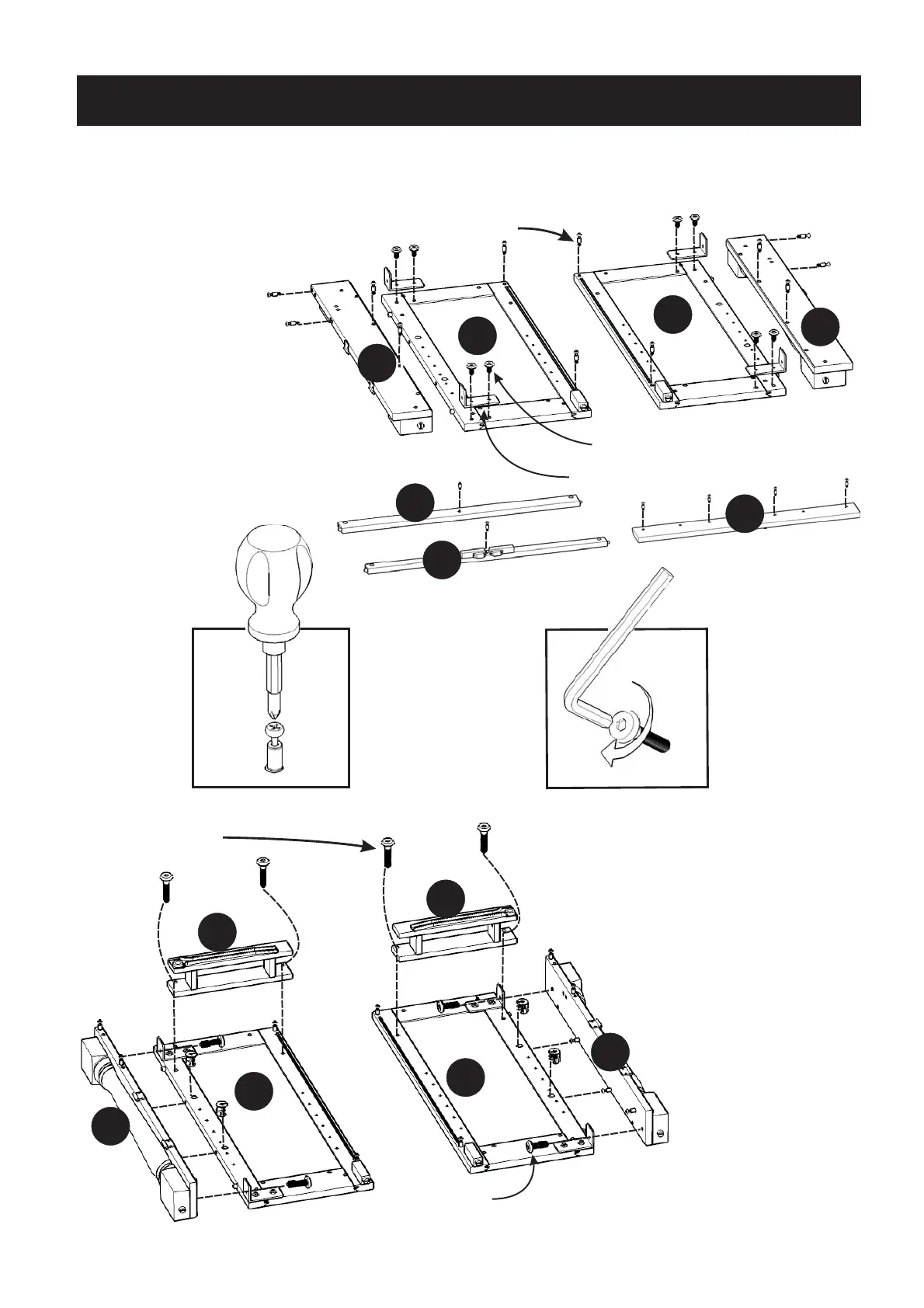

Figure 1
Head Cap Bolt (short)
D
E
C
L
K
B
J
Figure 2
STEP 1
Insert Cam Lock
Screws into the
pre-drilled holes of
Front Post (B), (C)
and Side Panels (D), (E)
and Front Rail (J), (K) and (L).
(see Figure 1)
Attach Steel Connectors to
Side Panel (D) and (E) with
Head Cap Bolts (short).
STEP 2
Attach Front Post (B) to
Side Panel (D) and Front
Post (C) to Side Panel (E)
with Cam Locks and Head
Cap Bolts (long).
(see Figure 2)
Attach Support Runner (G)
to Side Panel (D) and
Support Runner (H) to
Side Panel (E) with
Head Cap Bolts (long).
D
E
H
G
Head Cap Bolt
(long)
Cam Lock
Steel Connector
Head Cap Bolt
(long)
B
C
