UK - Page 25

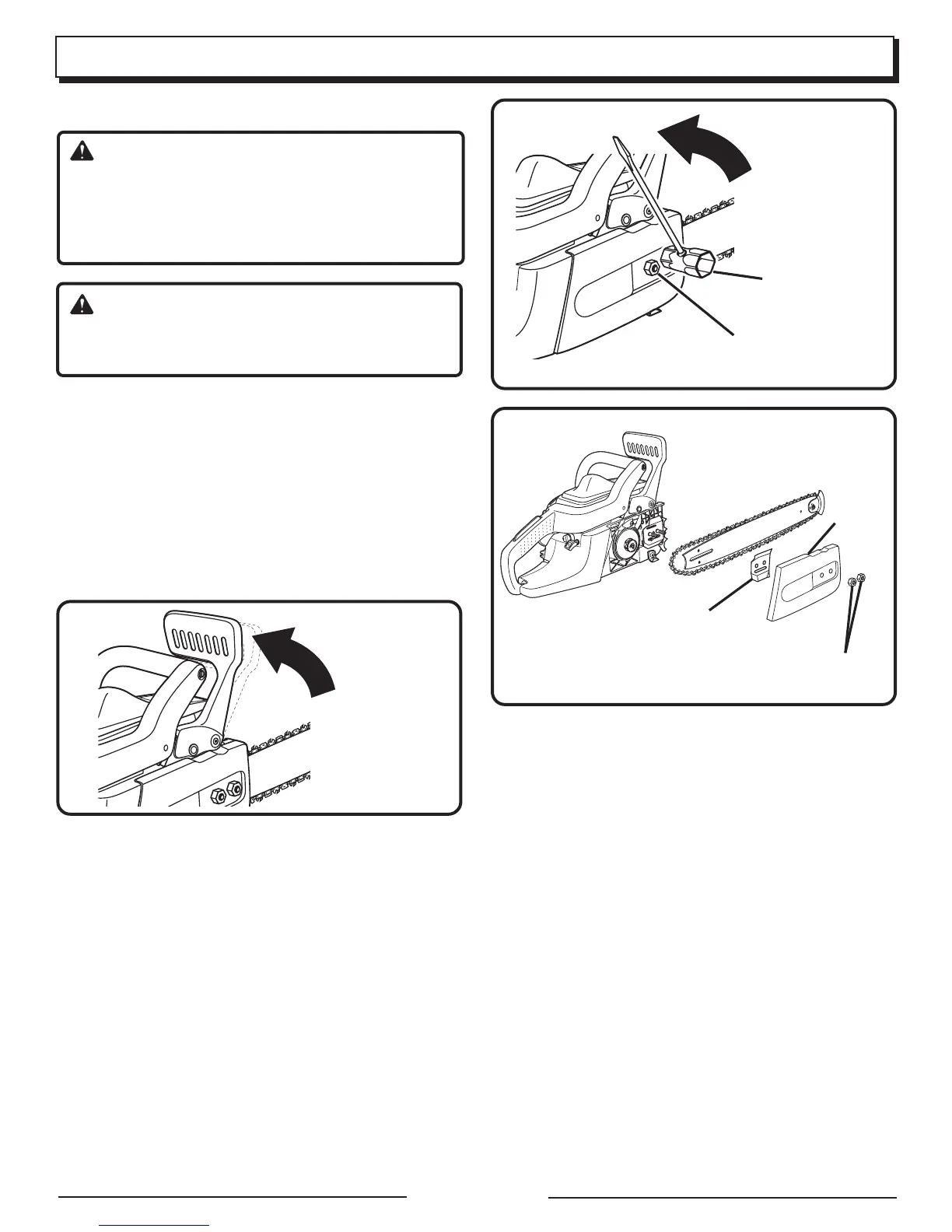

ASSEMBLING THE BAR AND CHAIN
DANGER:
Never start the engine before installing the guide bar,
chain, drive case cover, and clutch drum. Without all
these parts in place, the clutch may fly off or explode,
exposing the user to possible serious injury.
WARNING:
To avoid serious personal injury, read and understand
all the safety instructions in this section.
1. Always place the switch in the stop ìOî position before
you work on the saw.
2. Make sure the chain brake is not set by pulling the chain
brake lever/hand guard towards the front handle to the
RUN position.
3. Wear gloves when handling the chain and bar. These
components are sharp and may contain burrs.
4. Remove the bar mounting nuts using a combination
wrench or a 5/8 in. spanner.
5. Remove the clutch cover and the outer guide bar plate.
BAR MOUNTING NUTS
COMBINATION
WRENCH
CLUTCH
COVER
GUIDE BAR
PLATE
BAR MOUNTING NUTS
Fig. 41
RUN POSITION
Fig. 42
Fig. 43
MAINTENANCE
A low-kick-back saw chain is a chain which has met the
kick-back performance requirements of ANSI B175.1-2000
(American National Standard for Power Tools - Gasoline-
Powered Chain Saws - Safety Requirements) when tested
on the representative sample of chain saws below 3.8 c.i.d.
specified in ANSI B175.1-2000.
