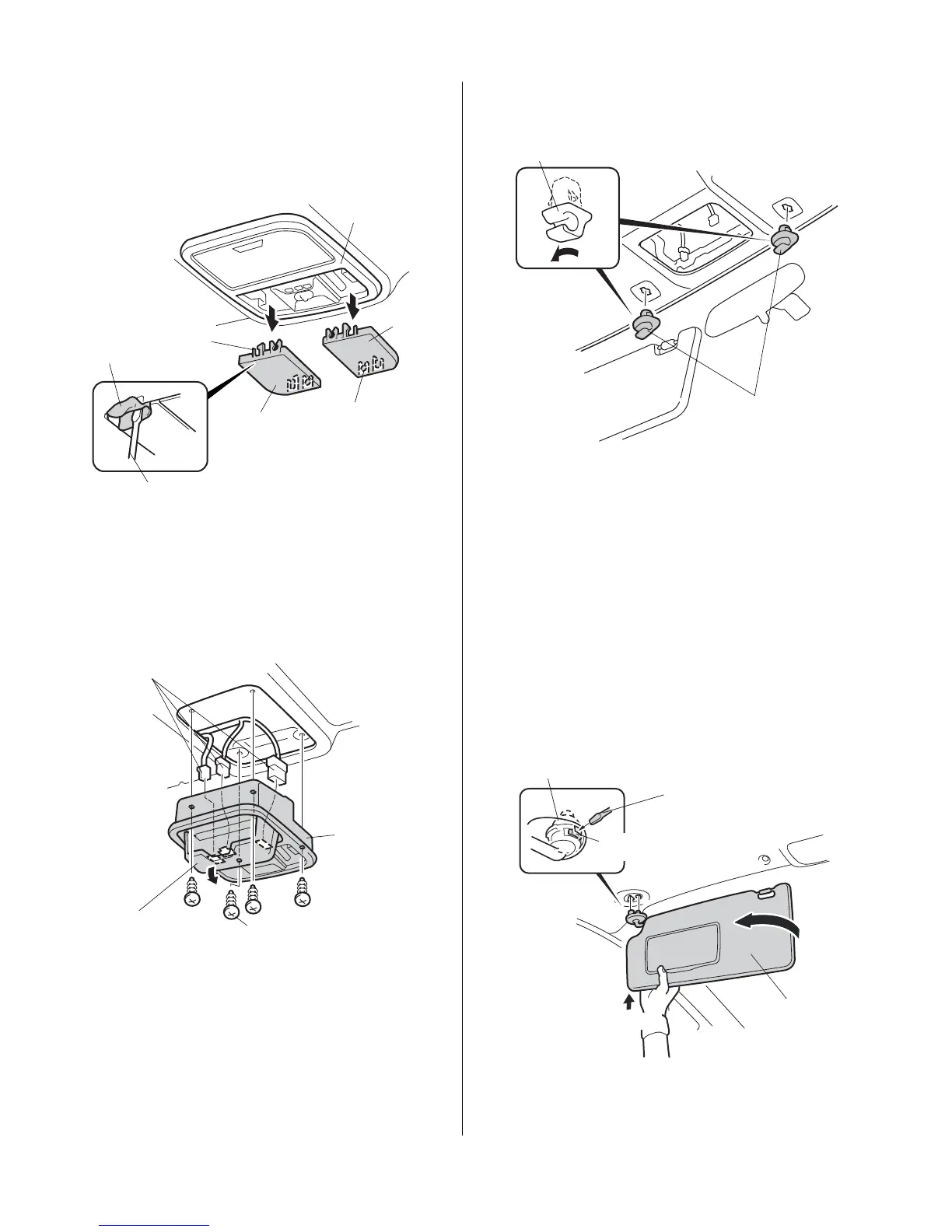

13. Remove the roof console:
• Using a small flat-tip screwdriver wrapped with a
shop towel, pry out and remove the left and right
lens (four retaining tabs each).
• Open the sunglass holder and remove the four
screws.
• Disconnect the vehicle connectors to remove
the roof console.
7215010Y
ROOF
CONSOLE
LEFT
LENS
4 RETAINING
TABS
RIGHT
LENS
4 RETAINING
TABS
SHOP
TOWEL
FLAT-TIP
SCREWDRIVER
7215020Y
4 SCREWS
ROOF
CONSOLE
SUNGLASS
HOLDER
(Open.)
VEHICLE
CONNECTORS
14. Turn the sunvisor holder 45°, and remove the two
sunvisor holders.
15. Remove the driver’s sunvisor.
• Turn the left sunvisor toward the driver’s seat.
• Locate the slot in the sunvisor holder, and insert
a flat-tip screwdriver into the slot. Push in and
hold the retaining tab.
• While holding the retaining tab, push up on the
left sunvisor and rotate toward the door to
remove.
NOTE: If the retaining tab did not stay pushed in, return
the left sunvisor to its original position and repeat the
steps above.
6D1806BY
761804AB
LEFT
SUNVISOR
(Turn rearward.)
Push upward.
FLAT-TIP
SCREWDRIVER
HOLDER
Push and
hold tab.
Rotate
towards
the door.
