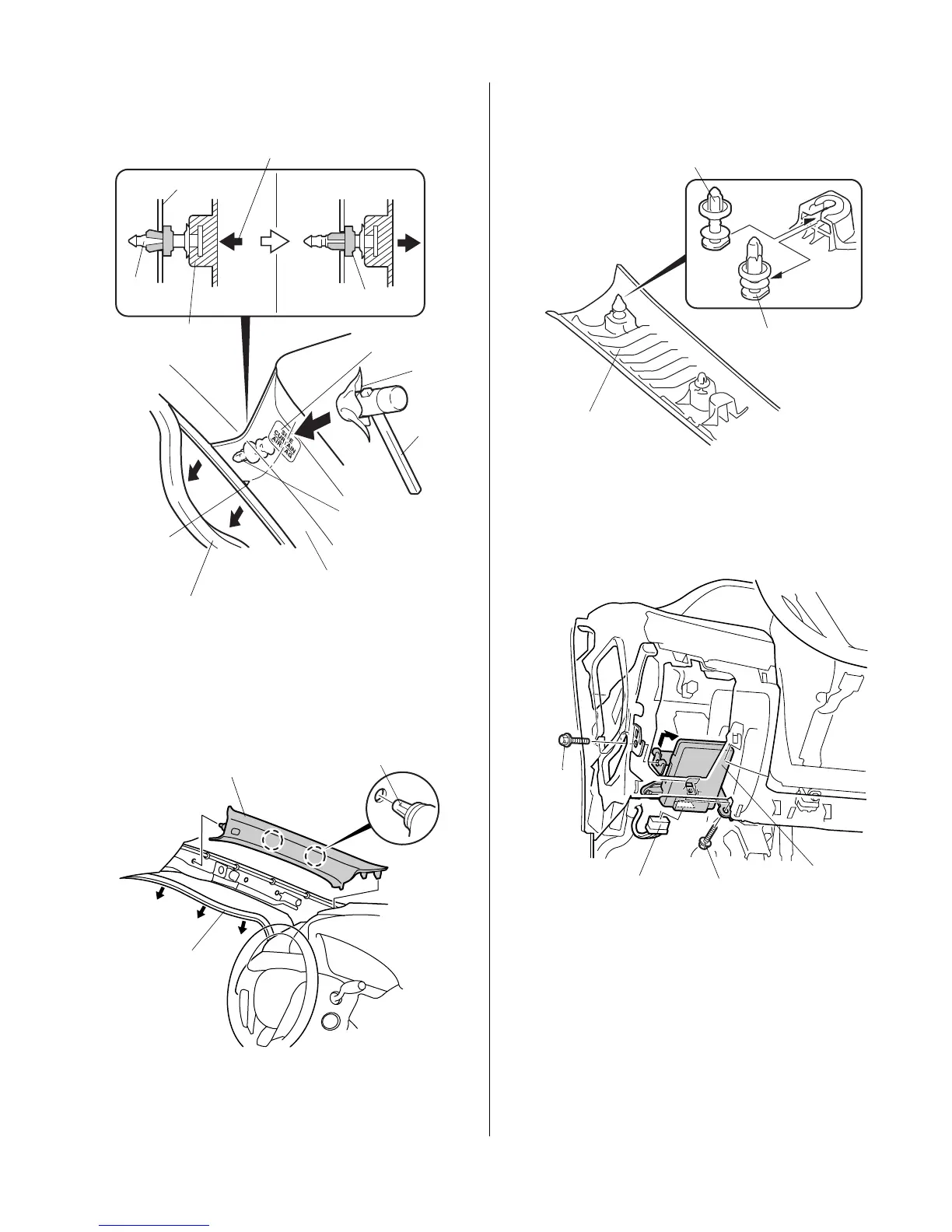

16. Pull away the weatherstrip from the left front A-pillar
trim.
17. Using a small rubber mallet and a shop towel, gently
tap the left front A-pillar trim at the position shown to
release the clip.
18. Pull away the weatherstrip from the left front A-pillar
trim. Remove the left front A-pillar trim (two clips).
732820BY
CLIP
FRONT A-PILLAR
TRIM
FRONT PILLAR
PIN
STRIKE POINT
SHOP
TOWEL
RUBBER
MALLET
LEFT FRONT
A-PILLAR TRIM
CLIP
WEATHERSTRIP
Strike perpendicular to
the vehicle.
TRIANGLE
MARK
6D18070Y
2 CLIPS
WEATHERSTRIP
LEFT FRONT
A-PILLAR TRIM
19. Remove and discard the clip from the left front
A-pillar trim, and install a new A-pillar clip (supplied)
on the left front A-pillar trim.
20. If equipped remove the HandsFreeLink control unit
(two bolts and disconnect the vehicle 28-pin
connector).
6D18080Y
CLIP (Discard.)
LEFT FRONT
A-PILLAR
TRIM
NEW A-PILLAR CLIP
732903BY
BOLT
VEHICLE
28-PIN
CONNECTOR
HANDS-
FREELINK
CONTROL
UNIT
BOLT
