Routing the Engine Starter Harness

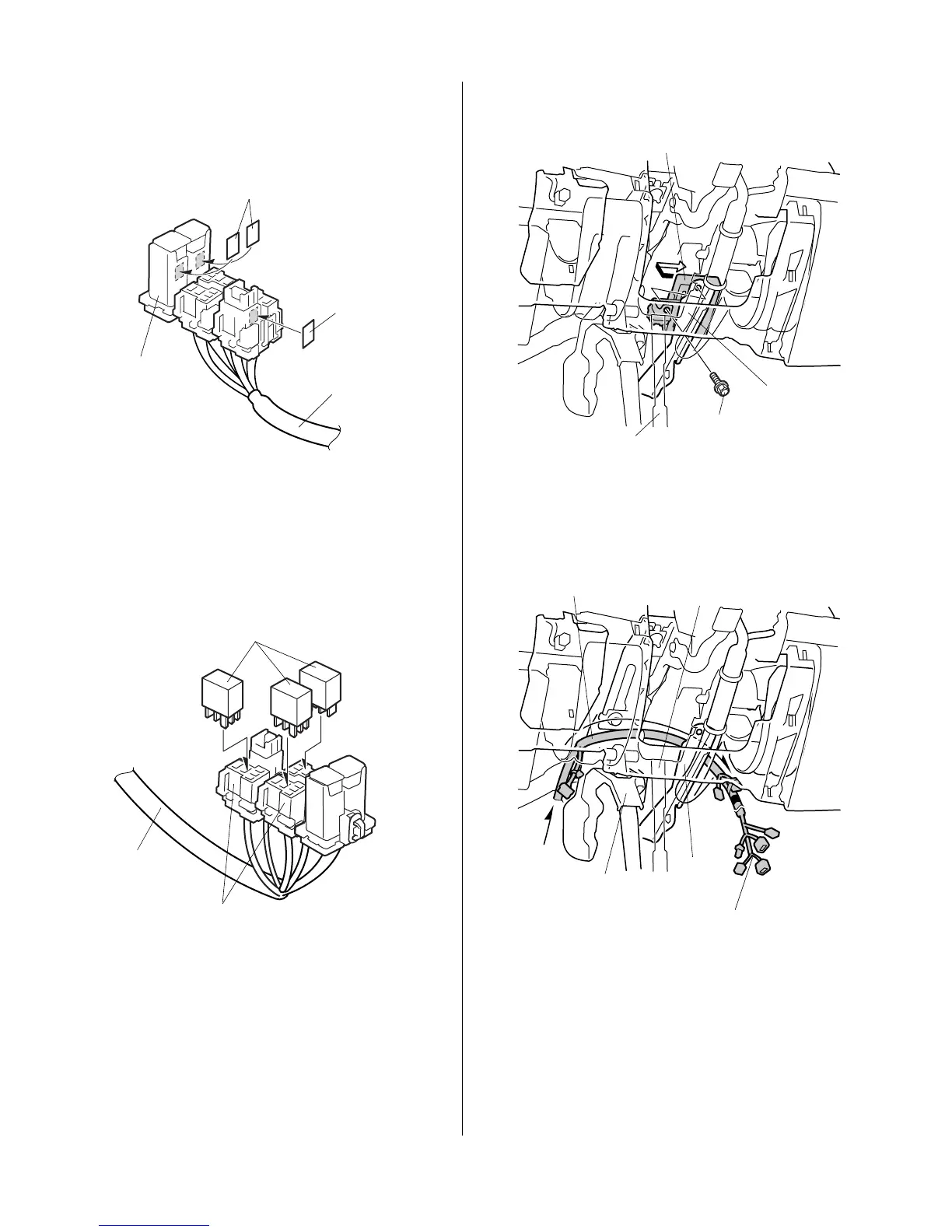

21. Attach the two 40 A fuse labels to the engine starter
fuse block.
22. Attach the 3 A fuse label to the engine starter relay
block.
23. Install the three relays to the engine starter relay
blocks.
732821BY
ENGINE
STARTER
HARNESS
FUSE BLOCK
3 A FUSE
LABEL
40 A FUSE LABELS
6D1802BY
ENGINE
STARTER
HARNESS
RELAY
BLOCKS
3 4-PIN
RELAYS
24. Remove the vehicle bolt and remove the TPMS
control unit from the vehicle bracket.
25. Route the 12-pin/8-pin/5-pin connector end of the
engine starter harness over the brake pedal bracket
towards the center of the vehicle.
6D18091Y
VEHICLE
BRACKET
VEHICLE
BOLT
TPMS CONTROL
STEERING
SHAFT
6D1810AY
BRAKE PEDAL
BRACKET
ENGINE STARTER
HARNESS
12-PIN/8-PIN/5-PIN CONNECTOR
STEERING
SHAFT
VEHICLE
BRACKET
