© 2008 American Honda Motor Co., Inc. – All Rights Reserved. AII 38576-38846 (0802) 9 of 23

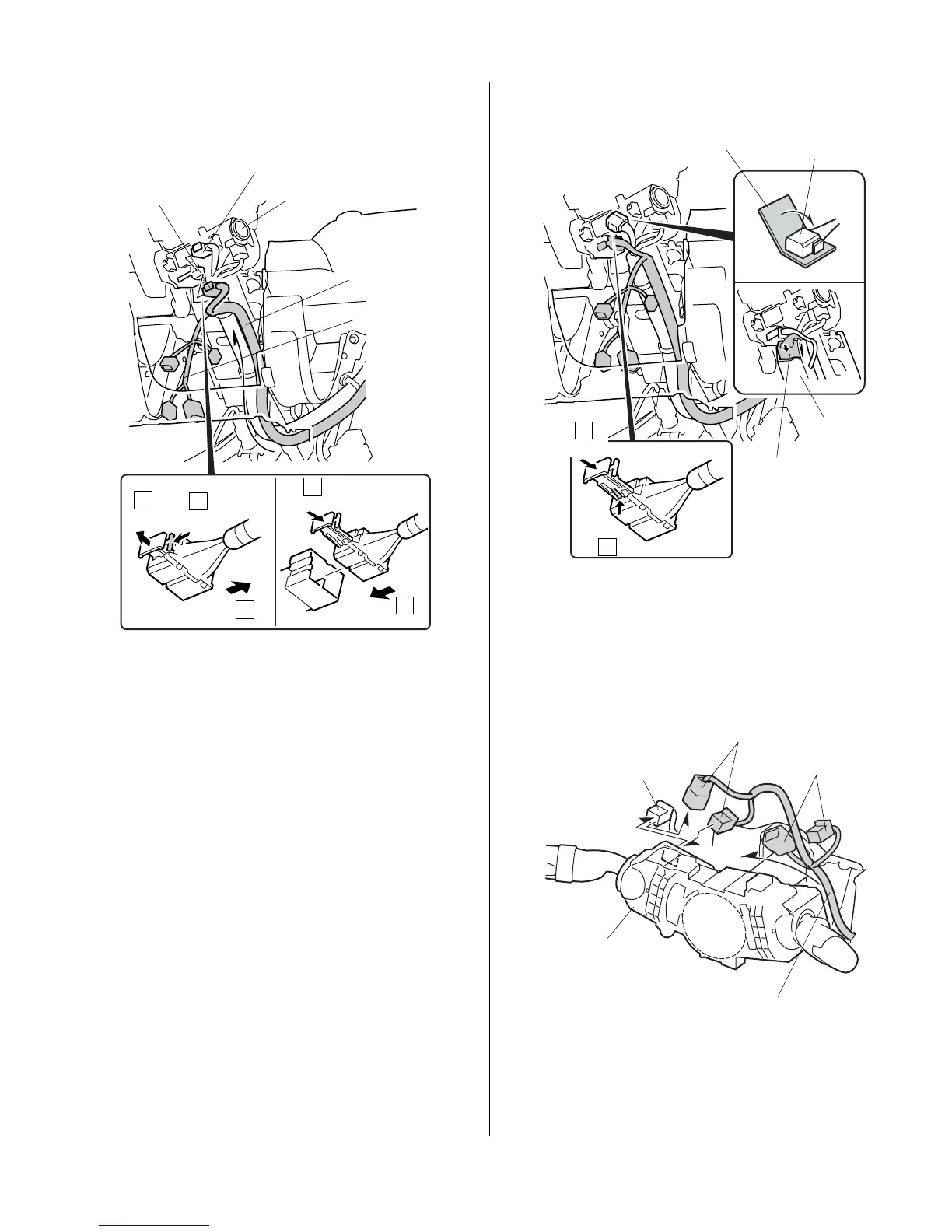

26. Route the 12-pin/8-pin/5-pin connector end of the
engine starter harness to the ignition switch.
27. Disconnect the vehicle 5-pin connector from the
ignition switch, and plug the engine starter harness
5-pin connector into the ignition switch.
NOTE: Check that the engine starter harness 5-pin
connector is connected to the vehicle connector and
locked securely. A loose connector can cause the
engine to stall
6D1812DY
12-PIN/8-PIN/5-PIN
CONNECTOR
IGNITION
SWITCH
ENGINE STARTER
HARNESS
5-PIN
CONNECTOR
Unlock Connector
Lock Connector
Push.
VEHICLE 5-PIN
CONNECTOR
Push.
Pull.
1
2
3
1
2
28. Wrap one urethane tape around the vehicle 5-pin
connector, and tuck it into the area shown.
29. Disconnect the turn signal switch 12-pin connector
and plug it into the engine starter harness 12-pin
connector. Plug the remaining engine starter
harness 12-pin connector into the turn signal switch.
6D1813AY
URETHANE
TAPE
VEHICLE 5-PIN
CONNECTOR
VEHICLE 5-PIN
CONNECTOR
VEHICLE
BRACKET
Push.
Push.
Lock Connector
1
2
6D18141Y
2 8-PIN
CONNECTORS
BODY
SWITCH
2 12-PIN CONNECTORS
VEHICLE 12-PIN
CONNECTOR
ENGINE STARTER
HARNESS
