8 of 28 AII 44367 (1008) © 2010 American Honda Motor Co., Inc. – All Rights Reserved.

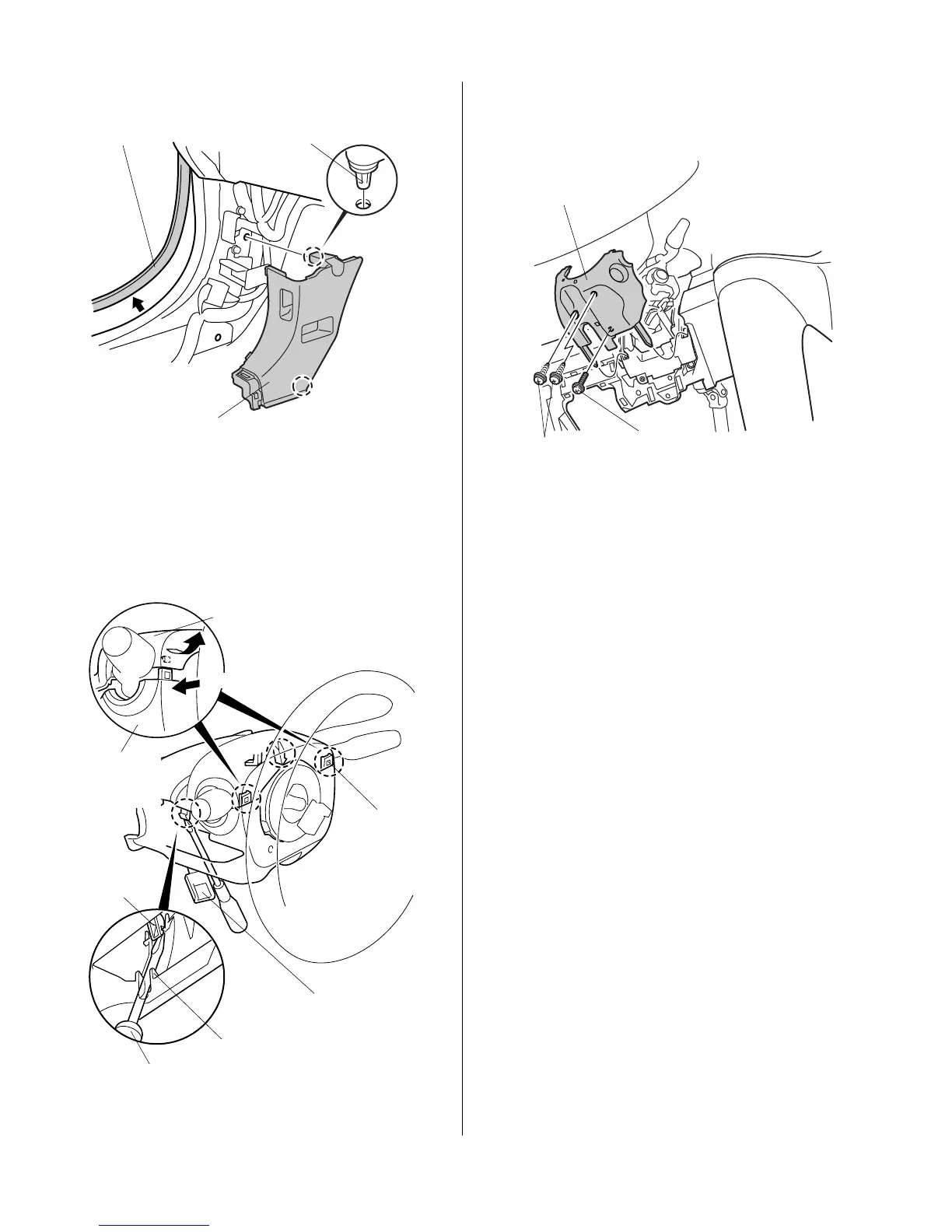

17. Pull away the weatherstrip.
18. Remove the left kick panel (two clips).
19. Lower the tilt lever and pull the steering wheel
outward. Insert a flat-tip screwdriver into the guide
on the underside of the steering column lower cover
and release the retaining tab.
20. Remove the steering column upper cover (three
retaining tabs).
2 CLIPS
WEATHERSTRIP
Pull away.
LEFT KICK
PANEL
Push.
FLAT-TIP SCREWDRIVER
STEERING COLUMN
UPPER COVER
RETAINING
TAB
STEERING
COLUMN
LOWER
COVER
GUIDE
TILT
LEVER
3 RETAINING
TABS
21. Remove the steering column lower cover (two self-
tapping screws and one screw).
SELF-TAPPING
SCREW
SCREW
STEERING COLUMN
LOWER COVER
To Next Page
