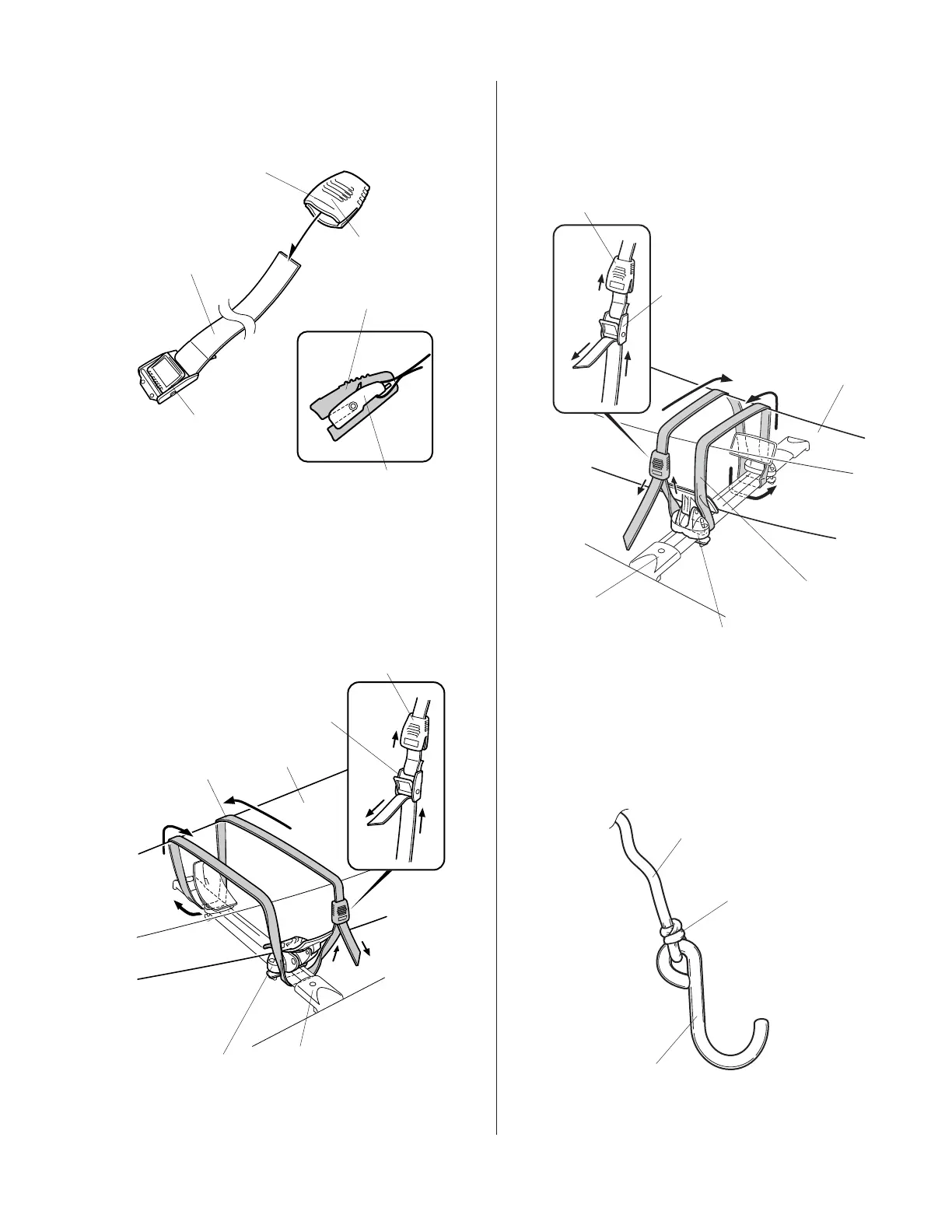

6. Route each strap with buckle through the buckle
cover with the ribbed side facing up as shown.
BUCKLE
COVER
RIBBED
END
STRAP
BUCKLE
BUCKLE
BUCKLE COVER
4617060Y
STRAP
BUCKLE COVER
BUCKLE
KAYAK
FRONT
CROSSBAR
SADDLE
7. Route the strap under the front crossbars and
around the kayak as shown. Slide the buckle
cover away from the buckle, route the strap
through the buckle, and tighten the strap. Slide the
buckle cover back over the buckle.
8. Route the strap under the rear crossbars, and
around the kayak as shown. Slide the buckle
cover away from the buckle, route the strap
through the buckle, and tighten the strap. Slide the
buckle cover back over the buckle.
4617080Y
ROPE
HOOK
4617070Y
BUCKLE COVER
BUCKLE
KAYAK
REAR
CROSSBAR
STRAP
HYDRO-GLIDE
ASSEMBLY
9. Attach a rope to the end of each hook. Tie a knot
in the rope to secure the rope to the hook.
KNOT
