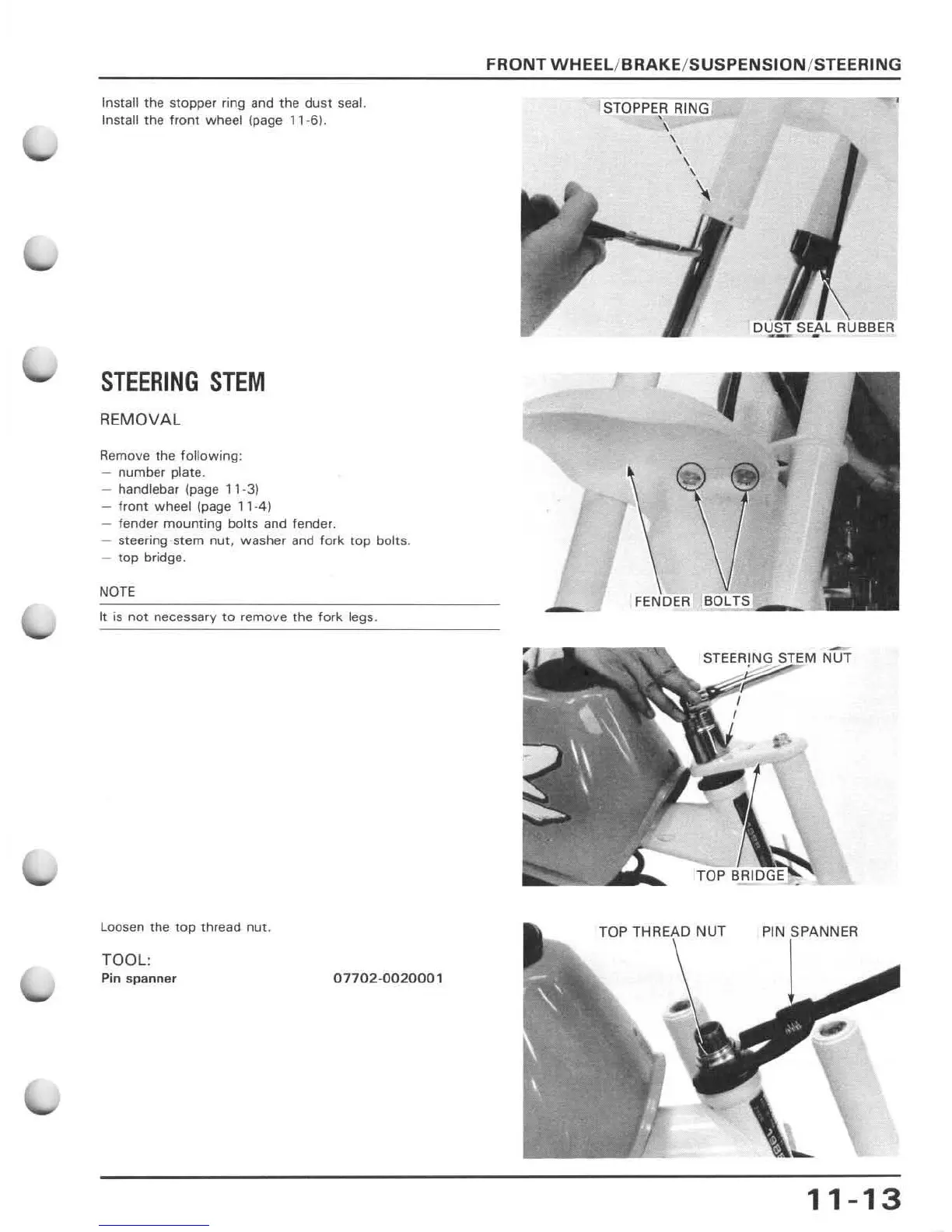

Install the stopper ring and the dust seal.
Install
the front wheel (page 1 1-6 ).
STEERING STEM
REMOVAL
Remove the following:
- number plate.
- handlebar (page 11 -3)
-
front wheel (page 11·4)
- fender mounting bolts and fender.
- steering stem nut , washer and fork top bolts.
- top bridge.
NOTE
It is not necessary to remove the fork legs.
Loosen the top thread nut.
TOOL:
Pin spa nn er 07702·002000 1
FRONT WHEEL / BRAKE/ SUSPENSION /STEERING
ISTOPPER RING
,
\
\
\
\
\
FENDER
\
NUT
11-13
