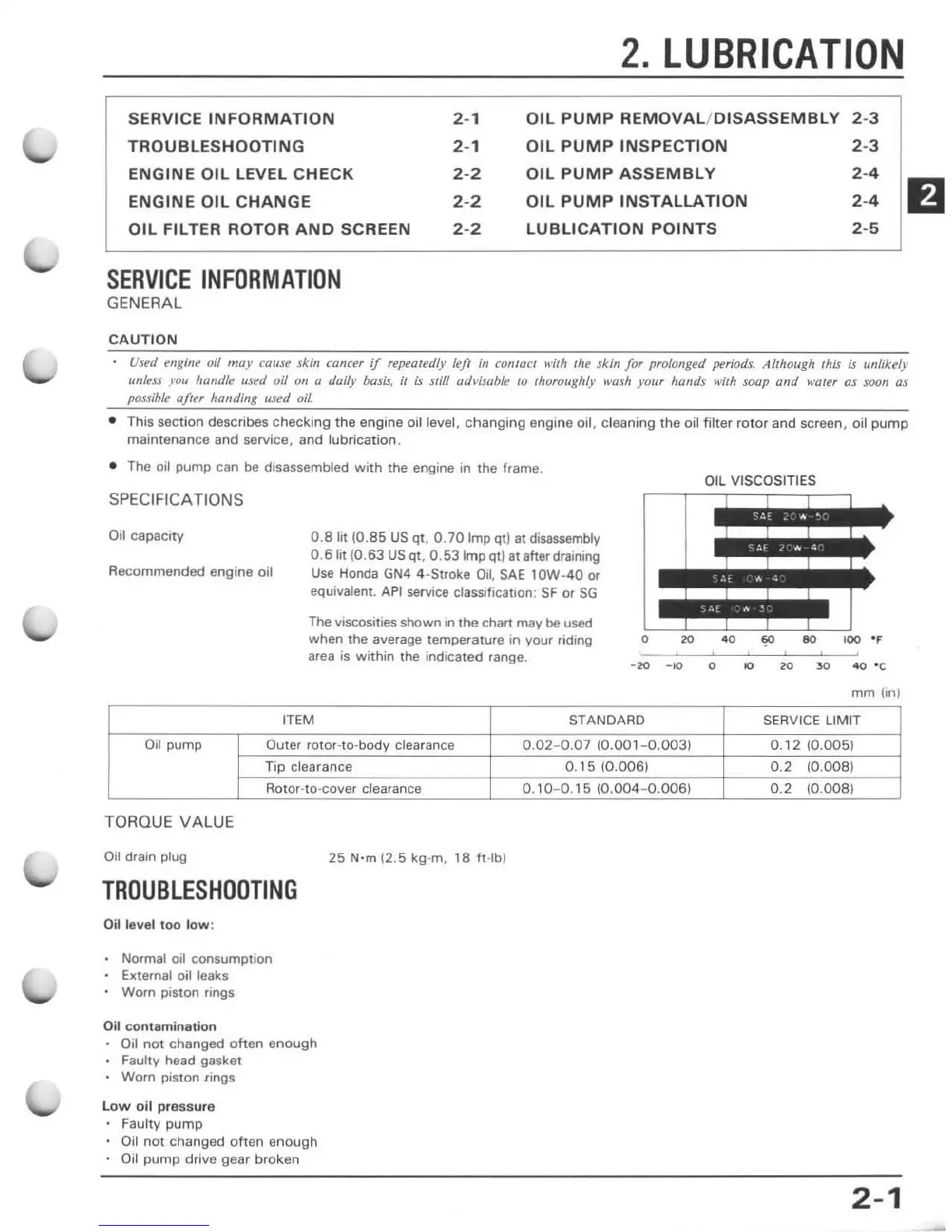

2. LUBRICATION
SERVICE INFORMATION
TROUBLESHOOTING
ENGINE OIL LEVEL CHECK
ENGINE OIL CHANGE
2-1
2-1
2 -2
2-2
2-2
OIL PUMP REMOVAL/DISASSEMBLY 2-3
OIL PUMP INSPECTION 2-3
OIL FILTER ROTOR AND SCREEN
SERVICE INFORMATION
G ENER AL
CAUT ION
OIL PUMP ASSEMBLY
OIL PUMP INSTALLATION
LUBLICATION POINTS
2-4
2-4
2-5
Used engine oil lIIay ca use skill cancn if repeatedly left {II contact wilh the skin Jar prolonged periods. Although this is IInlikely
IInlns you handle used oil on a daily basis , il is Sli/! ad~'isab{e /0 (haroughly wash your hands with soap and water as Sooll as
pillsible a/ler handing used oil
• This section describes checking the engine oil level, changing engine oil, cleaning the oil filter rot or and screen, oil pump
maintenance and service, and lubrication.
• The oil pump can be disassembled with the engine in th e frame.
SPEC IFI CATIONS
Oil capacity
Recommended engine oil
0.8 lit
(0.85 US qt , 0.70 Imp qt) 81 disassemblv
a.
Slit (0.63 US qt , O. 53Impqt ) at aherdraining
Use Honda GN4 4-Stroke Oil, SAE 10W-40 Of'
equivalent. API service classificatIOn: SF or SG
OIL VI SCOSITIES
The viscosities shown in the chart may be used
when the average temperature in your
riding
area is Within the indicated range.
-20 -10 a
20 30 4O'C
ITEM
Oil
pump
Ouler rotOHo-bodV clearance
Tip clearance
Rotor-
la -cover clearance
TORQUE VALUE
O il dratn plug
TROUBLESHOOTING
Oil level too low :
Normal oil consumption
External oil leaks
Worn piston rings
Oil co ntamination
011 not changed often enough
• Faulty head gasket
• Worn piston ling s
l ow oil pressure
Faulty
pump
Oil not changed often enough
Oil pump drive gear broken
25 N'm (2.5 kg-m. 18 ft - lbJ
mm hnl
STANDARD
SERVI CE LIMIT
0. 02 - 0.07 (0.00 1 -0.003)
0.12 10.005)
0. 15 (0.006)
0.2
(0.008)
0_ 1 0- 0.15 (O.004 0 . 006)
0.2
(0.008)
2-1
