Honda 2006 CRF50F User Manual

(4)

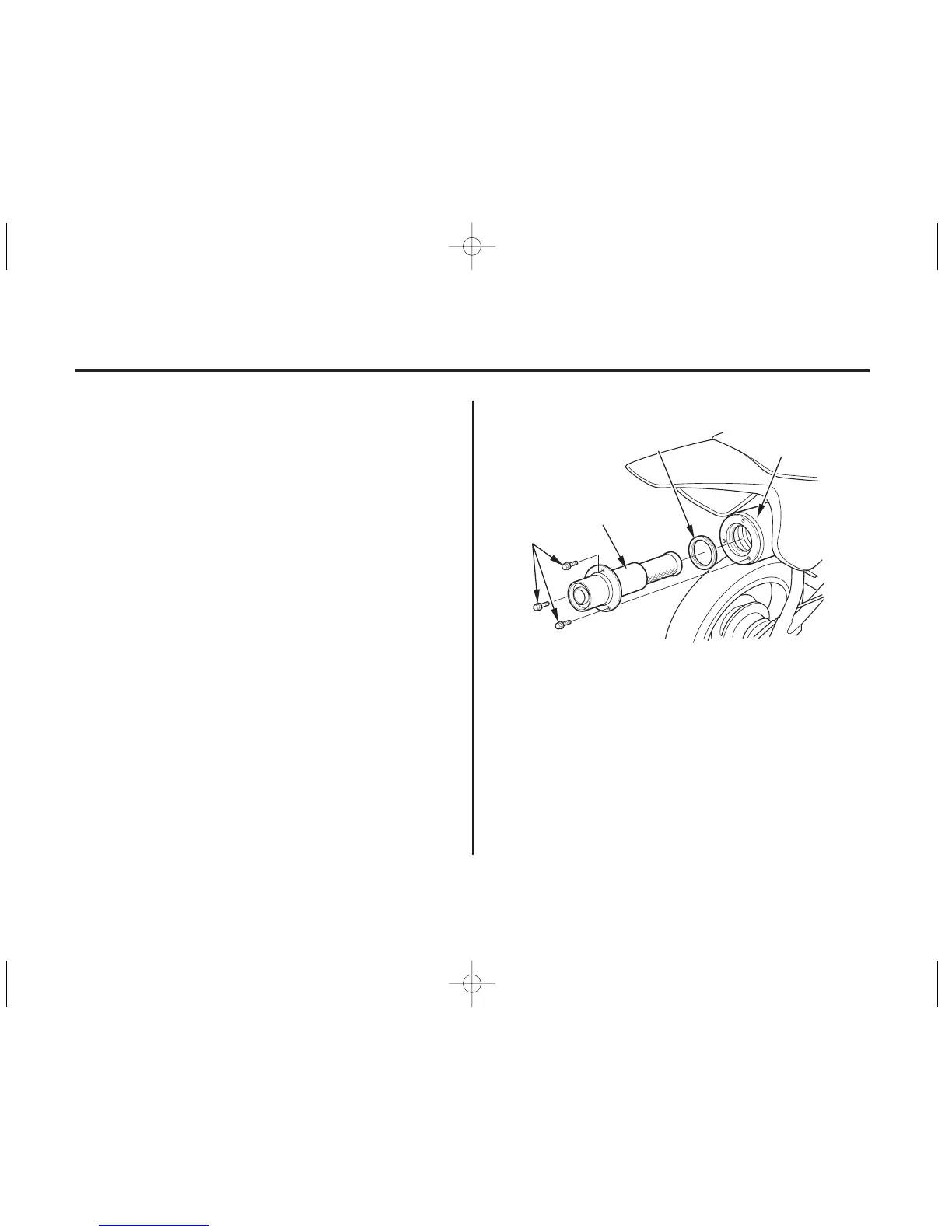

RIGHT REAR
(3) gasket
(4) muffler
(3)
(1)
(2)
(1) bolts
(2) spark arrester
81
Spark Arrester
Servicing Your Honda
Saf ety PrecautionsRefer to on page .
The spark arrester must be serviced every 100
operating hours to maintain its efficiency.
Regular servicing prevents carbon buildup
(which can diminish engine performance) and
also complies with USDA regulations for
regular maintenance to assure proper function.
The spark arrester prevents random sparks
from the combustion process in your engine
from reaching the environment.
Remove the three bolts ( ), the spark
arrester ( ), and the gasket ( ) from the
muffler ( ).
Allow the engine and muffler to cool.
(cont’d)
1.
2.
4
3
45
2
1
05/03/15 17:54:25 31GEL660_090

Honda 2006 CRF50F Specifications

General

Engine Type	49cc air-cooled single-cylinder four-stroke
Bore x Stroke	39.0mm x 41.4mm
Compression Ratio	10.0:1
Induction	13mm piston-valve carburetor
Ignition	CDI
Transmission	Three-speed with automatic clutch
Front Suspension	Inverted telescopic fork; 3.5 inches travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Wheelbase	36.0 inches
Seat Height	21.6 inches
Curb Weight	110 pounds
Fuel Capacity	0.7 gallons
Final Drive	420 chain; 14T/37T
Rear Suspension	Single shock; 2.8 inches travel
Rake	25.0°
