THROTTLE
REEL
(R1, R2, R3 type)
THROTTLE ARM/
SHIFT ARM SHAFT
(R1, R2, R3 type)
SHIFT ARM/
CLICK
ROLLER/
NEUTRAL
SWITCH
TILT SHAFT
TILT LOCK LEVER/SHAFT CAM
PROPELLER
SHAFT
SWIVEL
PTT THRUST RECEIVER
(each side)

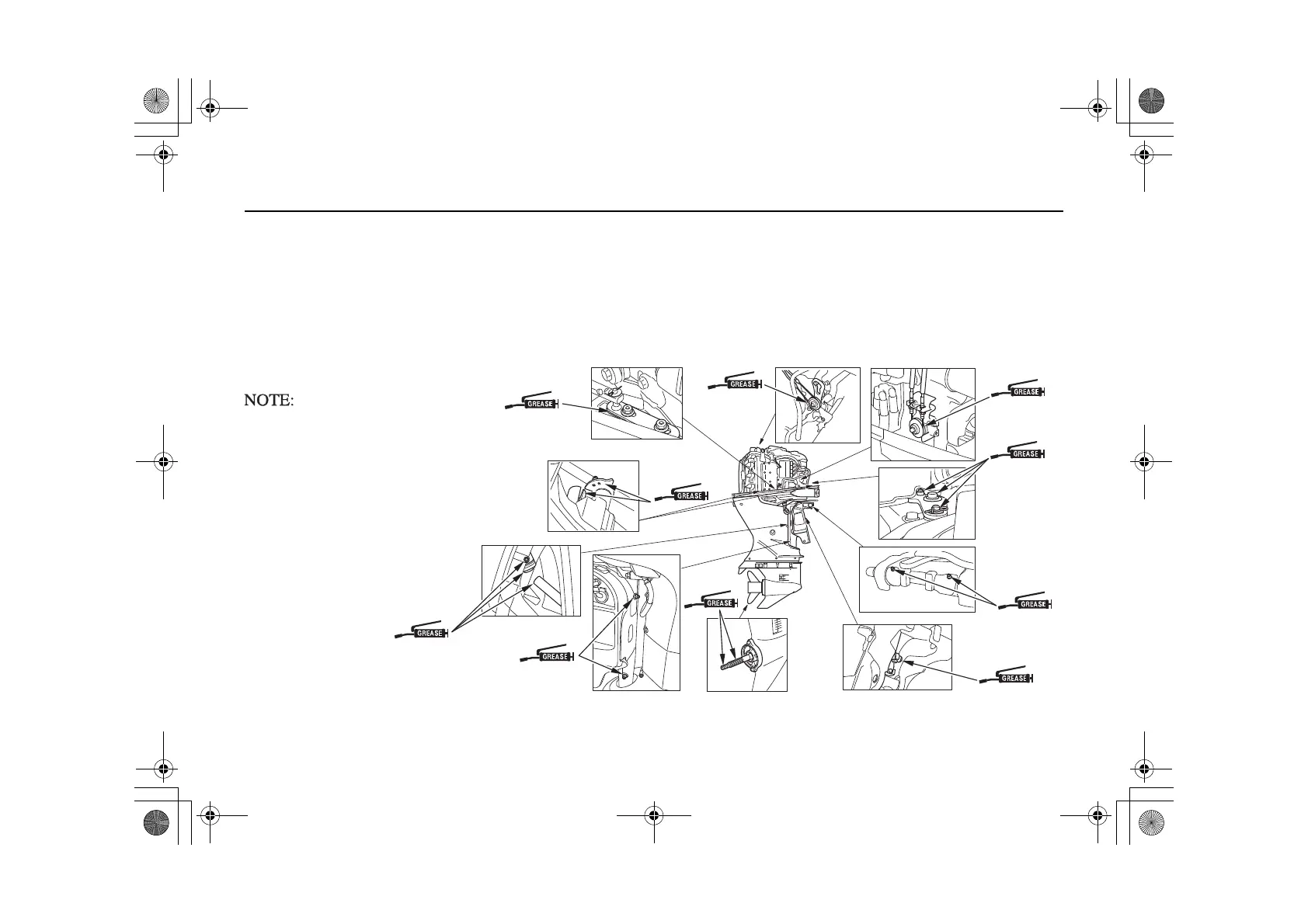

Lubrication
Wipe the outside of the engine with a cloth dipped in
clean oil. Apply marine anticorrosion grease to the
following parts:
Lubrication interval:
20 hours or a month after the date of purchase
for initial lubrication, then every 100 hours or
6 months.
• Apply anticorrosion oil to pivot
surfaces where grease cannot
penetrate.
• Lubricate more frequently
when used in salt water.
ENGINE COVER LATCH/ LOCK
(each side)
SHIFT LINK PIVOT/
SHIFT LINK GUIDE
(DBW type)
To Next Page
