Honda BF2D Series User Manual

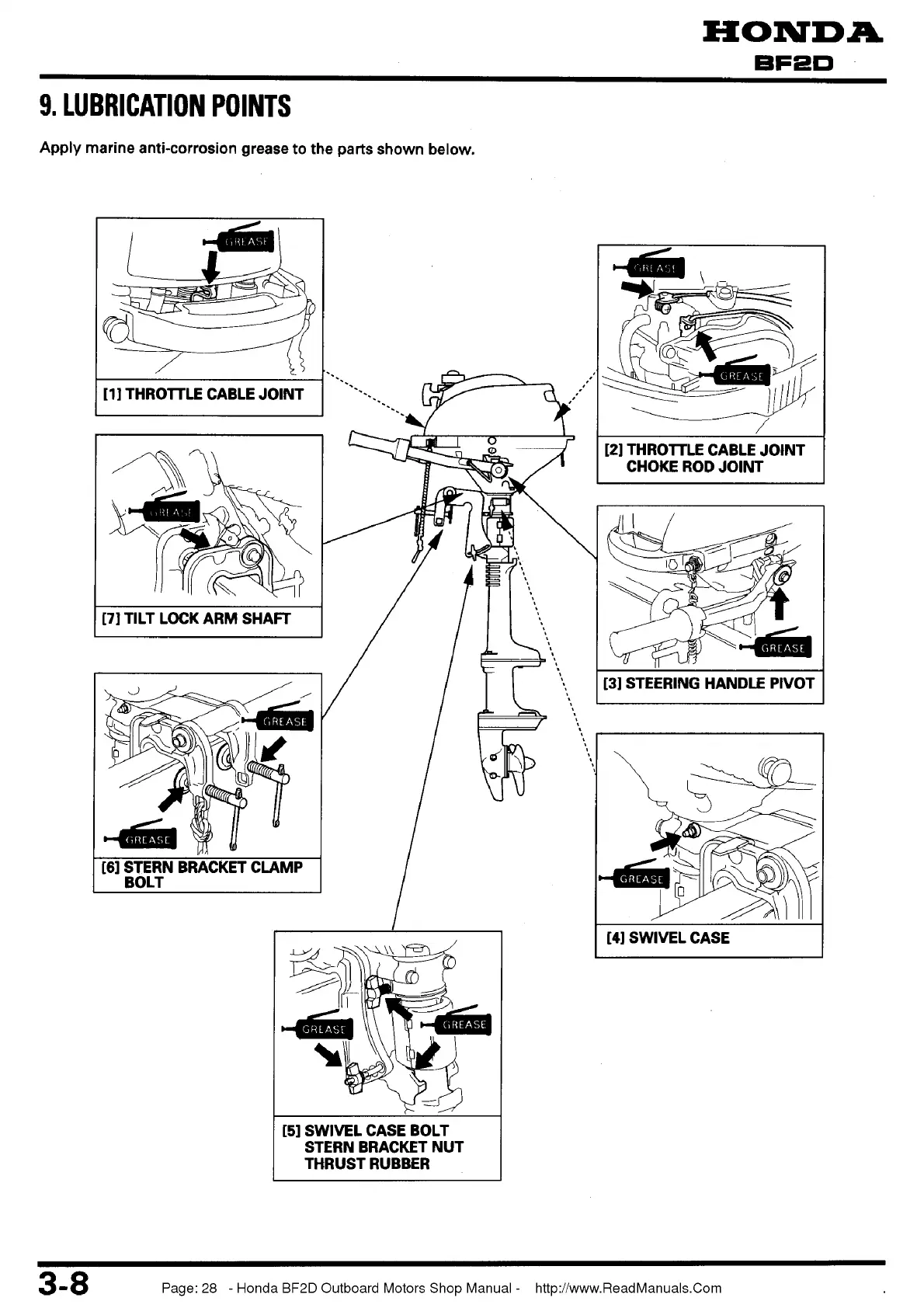

9. LUBRICATION POINTS
Apply marine anti-corrosion grease to the parts shown below.
[7] TilT lOCK ARM SHAFT
[5]
SWIVEL CASE BOLT
STERN BRACKET NUT
THRUST RUBBER
,
,
,
,
,
,
,
,
,
,
H:OlVDA.
BFaD
[2] THROTTLE CABLE JOINT
CHOKE ROD JOINT
[4] SWIVEL CASE
3-8
Page: 28 - Honda BF2D Outboard Motors Shop Manual - http://www.ReadManuals.Com

Honda BF2D Series Specifications

General

Full Throttle RPM Range	5, 000-6, 000 RPM
HP Rating	2 hp
Ignition System	Transistorized magneto
Starting System	Recoil
Gear Ratio	2.42:1
Fuel Delivery	Carburetor
Exhaust	Above propeller
Lubrication	Splash
Bore x Stroke	45 mm x 36 mm
Dry Weight	13 kg
Propeller	3-blade
Displacement	57.2 cc (3.5 cu in)
