Honda BF2D Series User Manual

HONDA
BFBD

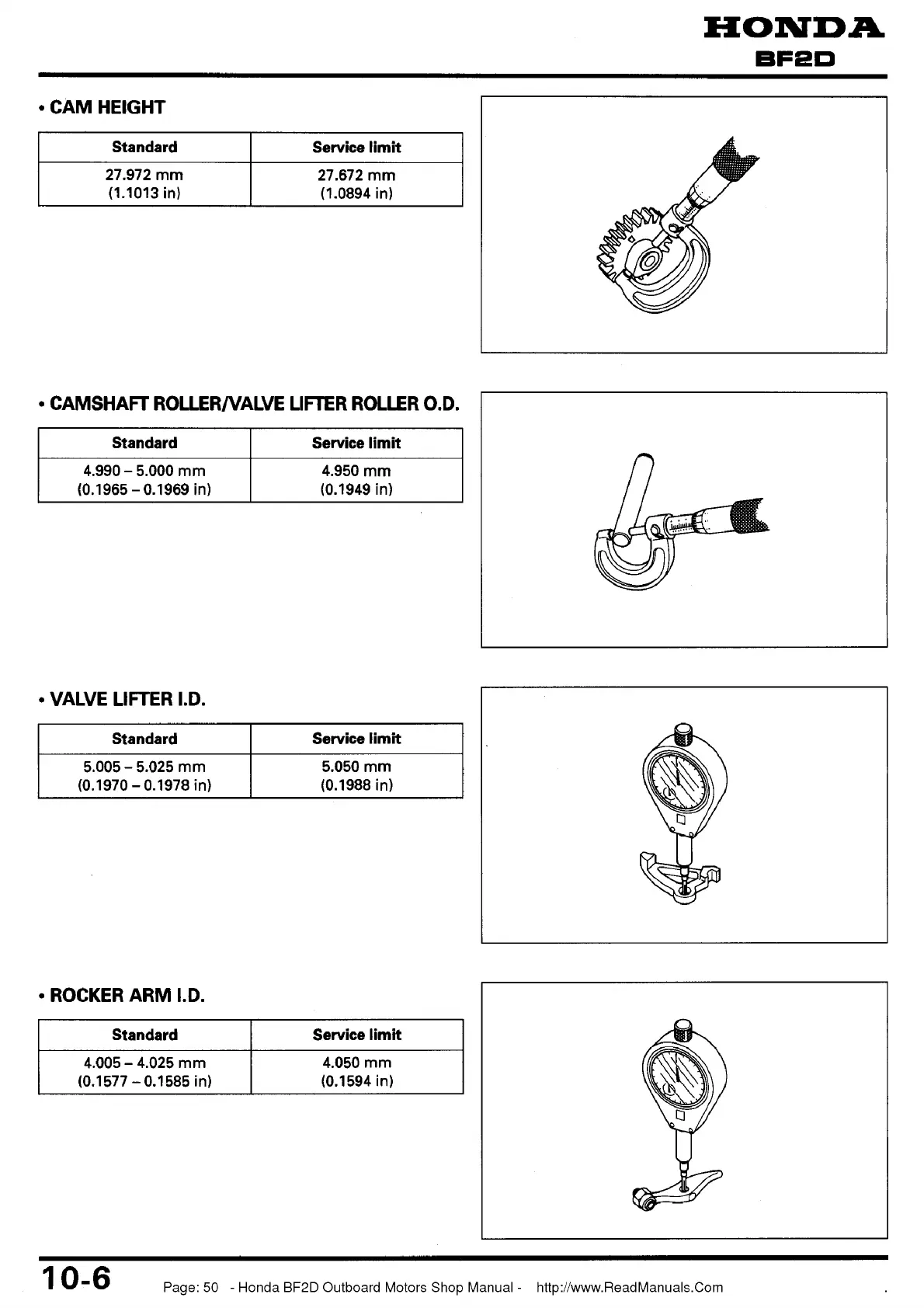

CAM HEIGHT 1
CAMSHAFT ROLLERIVALVE LIFTER ROLLER O.D. 0
Standard
27.972 mm
(1.1013 in)
Service limit
27.672 mm
(1.0894 in)
VALVE LIFTER I.D. 1
Standard
4.990 - 5.000 mm
(0.1965
- 0.1969 in)
Service limit
4.950 mm
(0.1949 in)
ROCKER ARM I.D.
Standard
5.005 - 5.025 mm
(0.1970
- 0.1978 in)
Service limit
5.050 mm
(0.1988 in)
1 0-6
Page: 50 - Honda BF2D Outboard Motors Shop Manual -
http:llwww.ReadManuals.Corn
Standard
4.005 - 4.025 mm
(0.1577
- 0.1585 in)
Service limit
4.050 mm
(0.1594 in)

Honda BF2D Series Specifications

General

Full Throttle RPM Range	5, 000-6, 000 RPM
HP Rating	2 hp
Ignition System	Transistorized magneto
Starting System	Recoil
Gear Ratio	2.42:1
Fuel Delivery	Carburetor
Exhaust	Above propeller
Lubrication	Splash
Bore x Stroke	45 mm x 36 mm
Dry Weight	13 kg
Propeller	3-blade
Displacement	57.2 cc (3.5 cu in)
