Honda BF2D Series User Manual

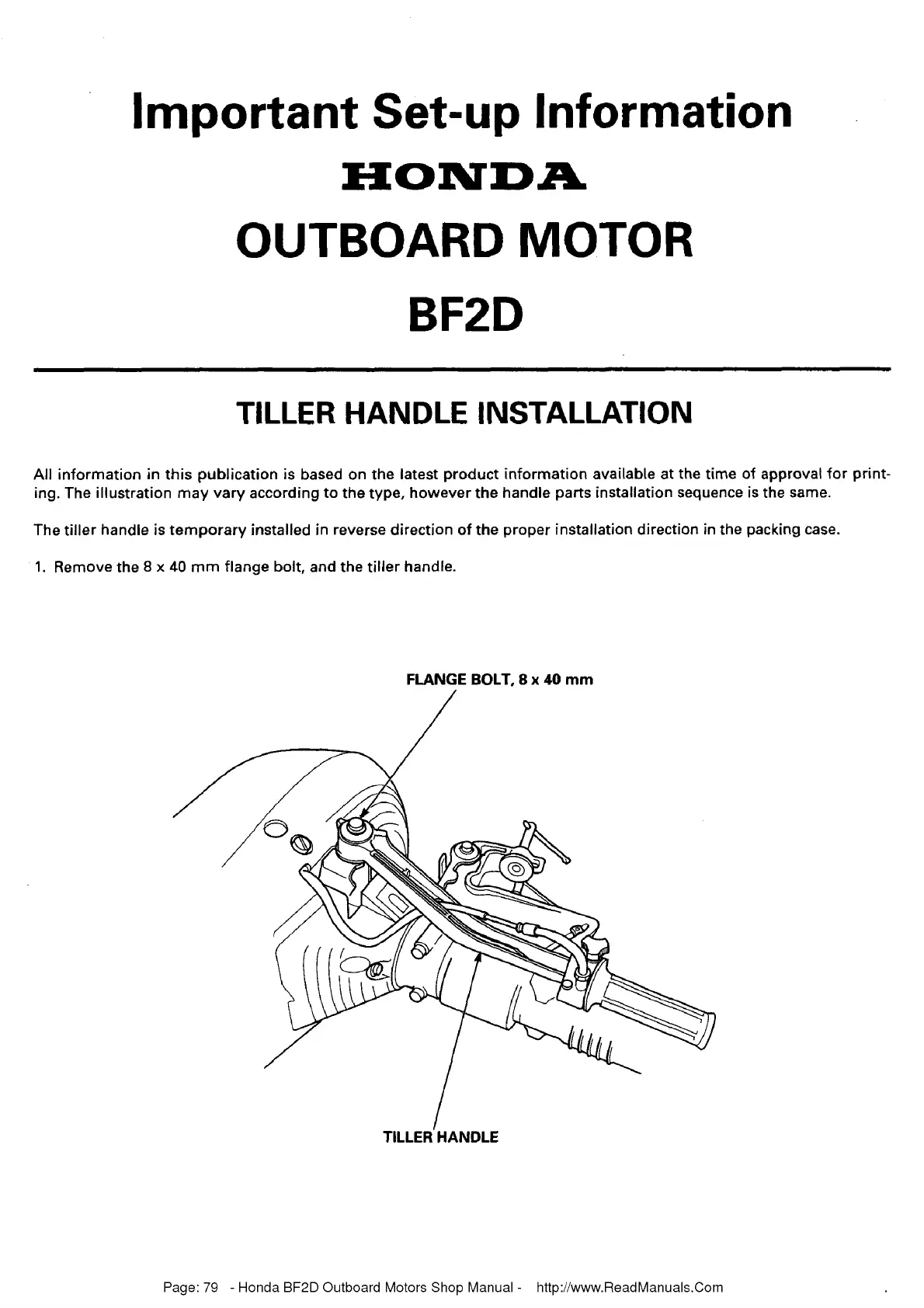

Important Set-up Information
HONDA.
OUTBOARD MOTOR
BF2D
TILLER HANDLE INSTALLATION
All information in this publication is based on the latest product information available at the time of approval for print-
ing. The illustration may vary according to the type, however the handle parts installation sequence is the same.
The
tiller handle is temporary installed in reverse direction of the proper installation direction in the packing case.
1. Remove the 8 x 40 mm flange bolt, and the tiller handle.
FLANGE BOLT. 8 x 40 mm
TILLER HANDLE
Page: 79 - Honda BF2D Outboard Motors Shop Manual - http://www.ReadManuals.Com

Honda BF2D Series Specifications

General

Full Throttle RPM Range	5, 000-6, 000 RPM
HP Rating	2 hp
Ignition System	Transistorized magneto
Starting System	Recoil
Gear Ratio	2.42:1
Fuel Delivery	Carburetor
Exhaust	Above propeller
Lubrication	Splash
Bore x Stroke	45 mm x 36 mm
Dry Weight	13 kg
Propeller	3-blade
Displacement	57.2 cc (3.5 cu in)
