I. OIL CASElCRANKSHAFr
2, PISTON
3. VALVEICYLINDER BLOCK
4. INSPECTION

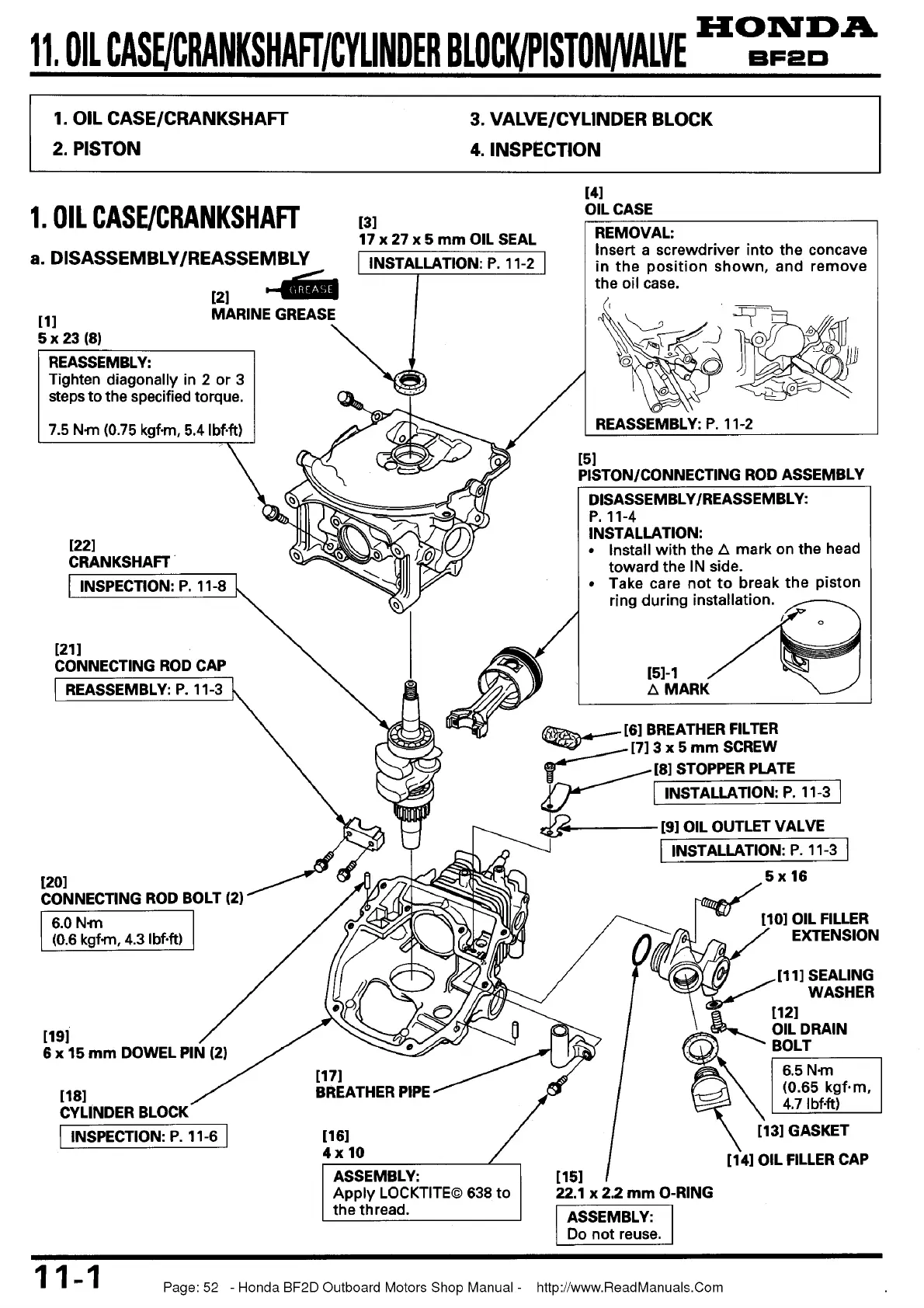

I. OIL CASEKRANKSHAFT 131
17 x 27 x 5 mm OIL SEAL
a. DISASSEMBLYIREASSEMBLY
121
111
MARINE GREASE
\
5 x 23 (8)
REASSEMBLY:
Tighten diagonally in 2 or 3
steps to the specified torque.
7.5 Nm (0.75 kgf-m, 5.4 lbf-fi)
141
OIL CASE
REMOVAL:
Insert a screwdriver into the concave
in the position shown, and remove
the oil case.
REASSEMBLY: P. I 1-2
151
PISTONICONNECTING ROD ASSEMBLY
DISASSEMBLYIREASSEMBLY:
P. 11-4
INSTALLATION:
Install with the A mark on the head
toward the IN side.
Take care not to break the piston
ring during installation.
/
121 I
I 3 x 5 mm SCREW
1201
CONNECTING ROD BOLT (2)
EXTENSION
1 INSPECTION: P. I 1-6 1
] OiL FILLER CAP
114
Page: 52 - Honda BF2D Outboard Motors Shop Manual - http:llwww.ReadManuals.Com

Honda BF2D Series Specifications

General

Full Throttle RPM Range	5, 000-6, 000 RPM
HP Rating	2 hp
Ignition System	Transistorized magneto
Starting System	Recoil
Gear Ratio	2.42:1
Fuel Delivery	Carburetor
Exhaust	Above propeller
Lubrication	Splash
Bore x Stroke	45 mm x 36 mm
Dry Weight	13 kg
Propeller	3-blade
Displacement	57.2 cc (3.5 cu in)
