Honda CB200 - Page 32

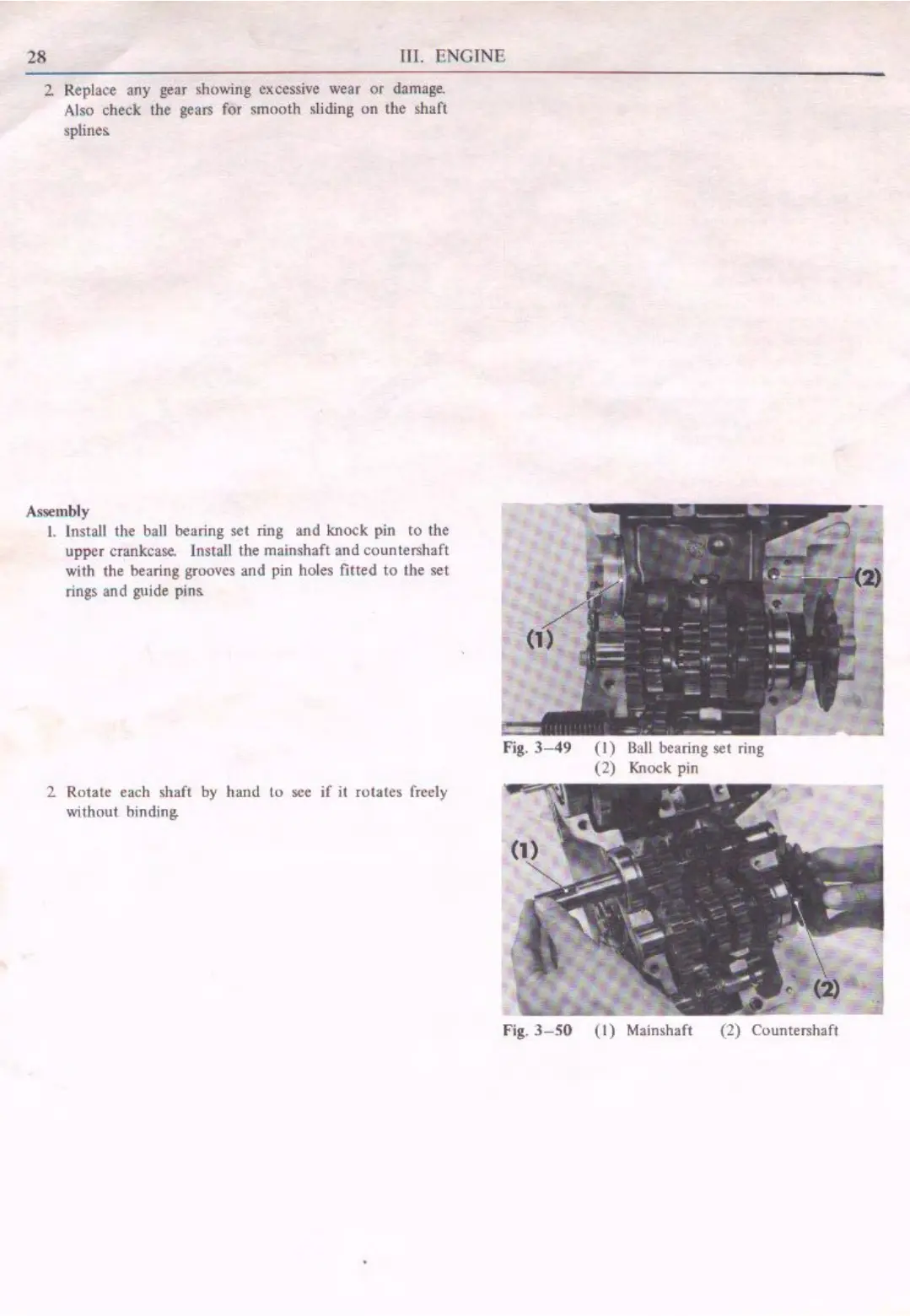

28
llI. ENGINE
2 Replace any gear showing excessive wear or damage.
Also check the gears for
smooth sliding on the shaft
splines
Assembly
I. Install the ball bearing set ring and knock pin ro the
upper crankcase. Install the mainshaft and countershaft
with the bearing groo"es and piJl holes fitted to the set
rings and guide pins
2 Rotate each shaft by hand lo see if it rotates freely
without binding
f
ig. 3-49 (I) Ball bearing set ring
(2) Knock pin
fig. 3-50 (I) Mainshaft (2) Countershaft
