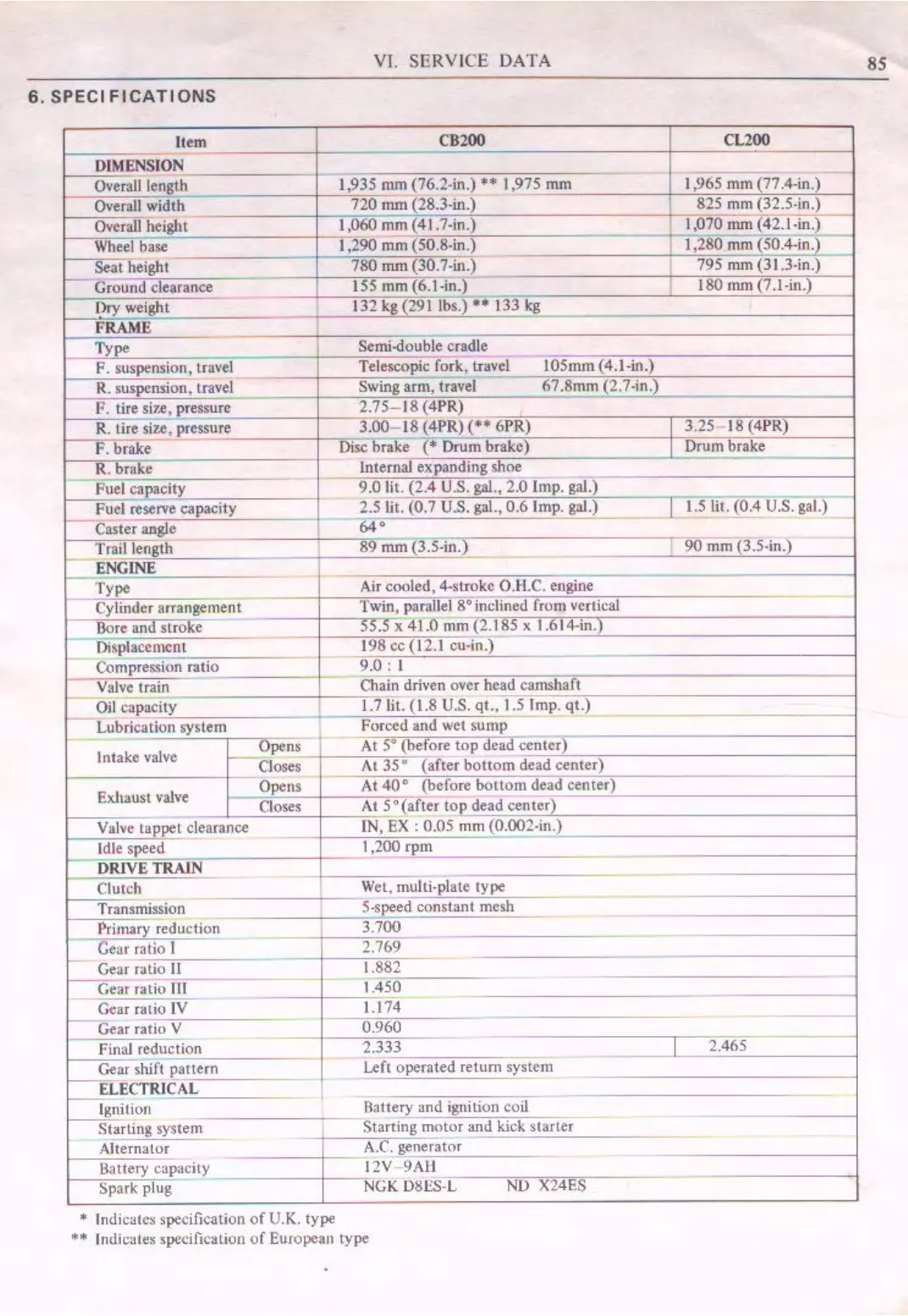

VI. SERVICE DATA
85
6.
SPECIFICATIONS
Uem
CB200
CL200
DIMENSION
Overall length.
1,935 mm (76.2-in.)
••
1,975
mm
1,965
mm
(77.4-in.)
Overall width
720
mm (i8.3-in.) 825 mm (32.5-in.)
Overall height
1,060 mm
(41
.7-in.)
1,070 nun ( 42.1-in.)
Wheel
base
1,290 mm (50.8-in.)
1,280 mm (50.4-in.l
Seat height
780
mm
(30.7-i.n.)
795
mm (31.3-in.)
- Ground clearance
155 mm (6.1-in.J
180
mm(7.l-in.)
Dry
weight
132
kg
(291
lbs.)••
133 kg
FRAME
Type
Semi-double cradle
F. suspension, travel
Telescopic fork, travel
105,run (4.1-in.)
R.
suspension, travel
Swing arm, travel
67
.8mm (2.7-in.)
F.
tire
size,
pressure
2.75
- 18
(4PR)
R.
lire
size,
pressure
3.00-
18
(4PR)
(**
6PR)
3.25- 18 (4PR)
F.
brake
Disc hrake
(•
Drum brake) Drum brake
R. brake
Internal expanding shoe
Fuel capaci
ty
9.0
lit.
(2.4
U.S. gal., 2.0 Imp. gal.)
Fuel reserve capacity
2.5 lit. (0.7 U.S. gal.,
0.6
Imp. gal.)
I
1.5 litj
0.4
U.S
. gal.)
~ -
64•
Caster angle
Trail length
.
89
mm
(3.5-in.}
90
mm (3.5
-i
n.)
-
ENGINE
Type
Air cooled, 4-stroke O.H.C. engine
Cylinder arrangement
Twin, patallel 8°inclined
from
\
1
Crlical
Bore ana stroke•
'i'i.5 x
41.0
mm (2.185 x 1.614-i.n.l
Di$placemcnt
198
CC
(12.1
CU
•in ,)
-
Compression ratio
9.0
: I
Valve train
Chain driven over head camshaft
~
--
1.7
Gt.
(1.8 U.
S.
qt.,
1.5 Imp.
qt.)
Oil capacity
- Lubrication system
Forced and wet sump
Intake valve
Opens
At
5° (before
top
dead center l
- Closes At
35•
(after
bottom
dead center)
Exhaust valve
Opens
At40°
(before
bottom
dead center)
Closes
At
5°(after
top
dead center)
Valv
e tappet clearance
IN, EX :
0.05
mm (0.002-in.)
Idle speed
1,200
rpm
DRIVE TRAIN
Clutch
Wet, multi-plate type
Transmission
S-speed constant mesh
Primary
reduction
3.700
Gear ratio I
2.769
-Gear ratio
11
1.882
-
Gear ratio
Ill
1.450
Gear
raliO
IV
1.1
74
1--
Gear
ratio V 0.960
-
Final reduction
2.333
2.465
('.ear shift pattern
Left operated return system
~LECT
RJCAL
Ignition
Rattery and ignition coil
Starting system
Starting motor and kick starter
Alternator
A.
C.
generator
Battery capacity
12V- 9AU
Spark plug
NGK O81!S-L ND X24ES
• Indicates specification
of
U.K. type
**
fndical~s specification
of
European
type
To Next Page
