HONDA

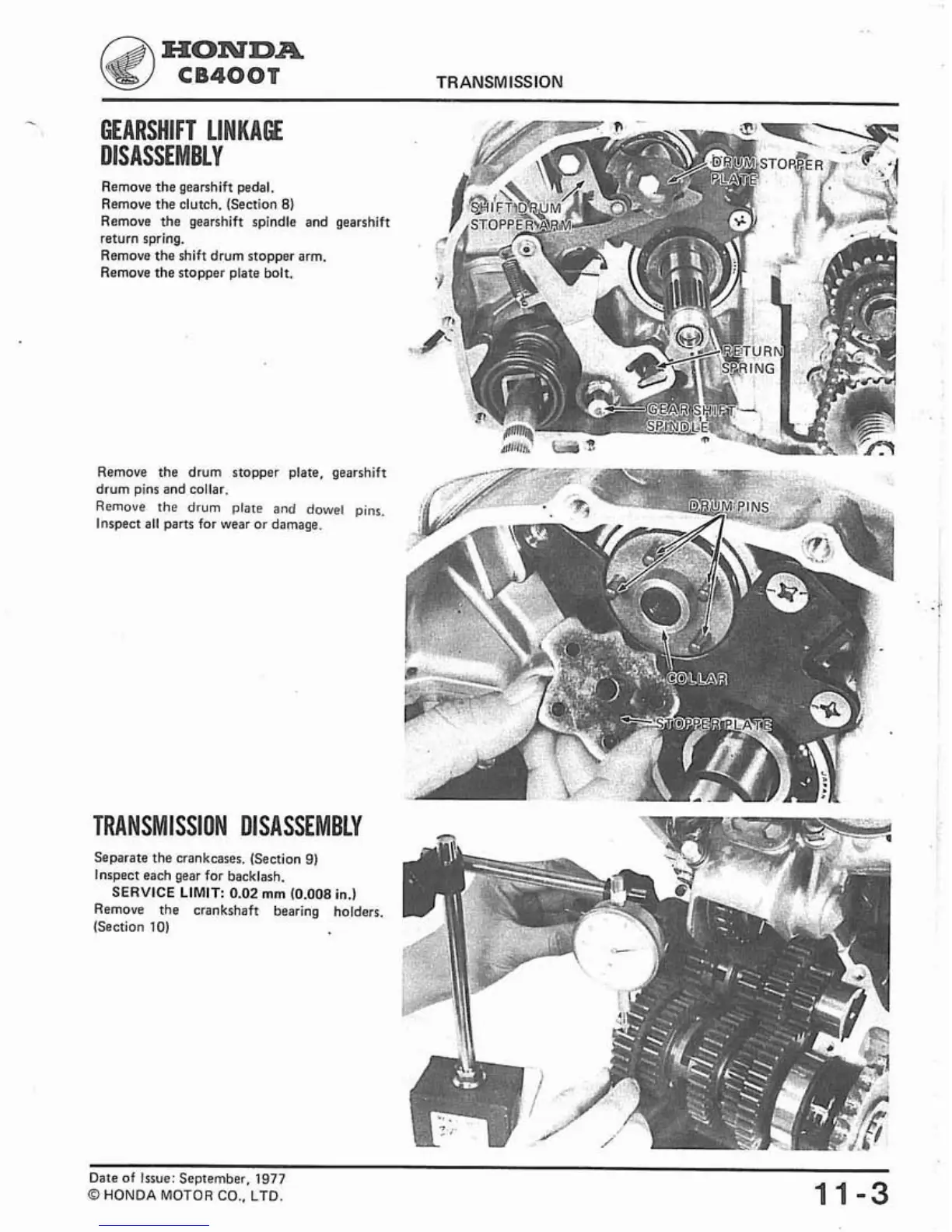

CB400T TRANSMISSION
GEARSHIFT LINKAGE
BPSASSEMBLK
Remove the gearshift pedal.
Remove the clutch. (Section
8)
Remove the gearshift spindle and gearshift
return spring.
Remove the shift drum stopper arm.
Remove the stopper plate bolt.
Remove the drum stopper plate, gearshift
drum pins and collar.
Remove the drum plate and dowel
pins.
Inspect all parts for wear or damage.
TRANSMISSION DISASSEMBLY
Separate the crankcases, (Section 9)
Inspect each gear for backlash.
SERVICE LIMIT: 0.02 mm 10.008 in.)
Remove the crankshaft bearing holders.
(Section
10)
Date of Issue: September, 1977
o HONDA MOTOR co.. LTD.
11-3

Honda CB400T Specifications

General

Displacement	395 cc
Bore x Stroke	70.5 mm x 50.6 mm
Compression Ratio	9.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Air-cooled, 4-stroke, parallel twin
Fuel System	2 x Keihin carburetors
Rear Suspension	Dual shocks
