HONDA

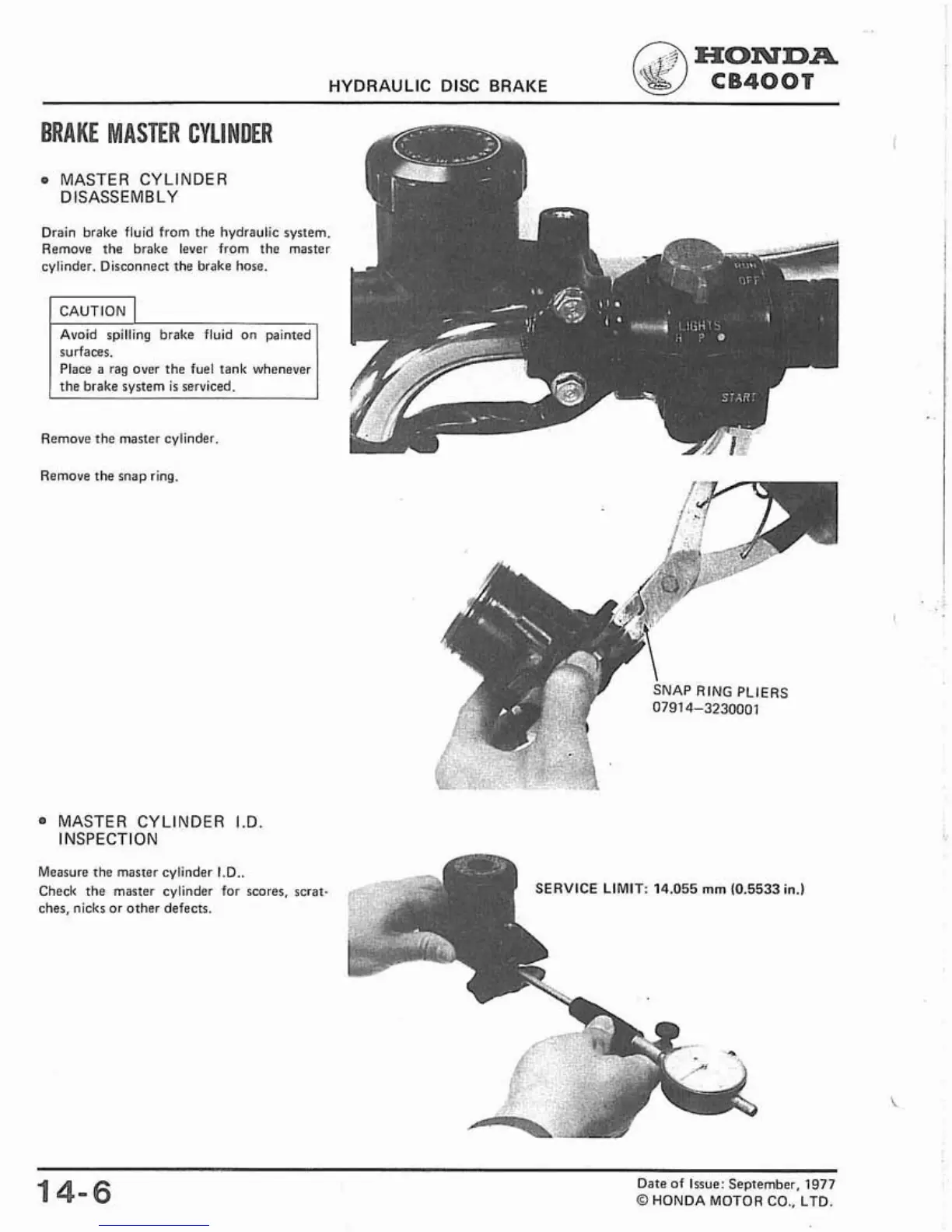

HYDRAULIC DISC BRAKE CB4OOT
BRAKE MASTER CYLINDER
MASTER CYLINDER
DISASSEMBLY
Drain brake fluid from the hydraulic system.
Remove the brake lever from the master
cylinder. Disconnect the brake hose.
Avoid spilling brake fluid on painted
surfaces.
Place a rag over the fuel tank whenever
Remove the master cylinder
Remove the snap ring
MASTER CYLINDER I.D.
INSPECTION
Measure the master cylinder I.D..
Check the master cylinder for scores, scrat-
SERVICE LIMIT: 14.055 mm 10.5533 in.)
ches, nicks or other defects.
Date of Issue: September,
1977
O HONOA MOTOR CO., LTD.

Honda CB400T Specifications

General

Displacement	395 cc
Bore x Stroke	70.5 mm x 50.6 mm
Compression Ratio	9.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Air-cooled, 4-stroke, parallel twin
Fuel System	2 x Keihin carburetors
Rear Suspension	Dual shocks
