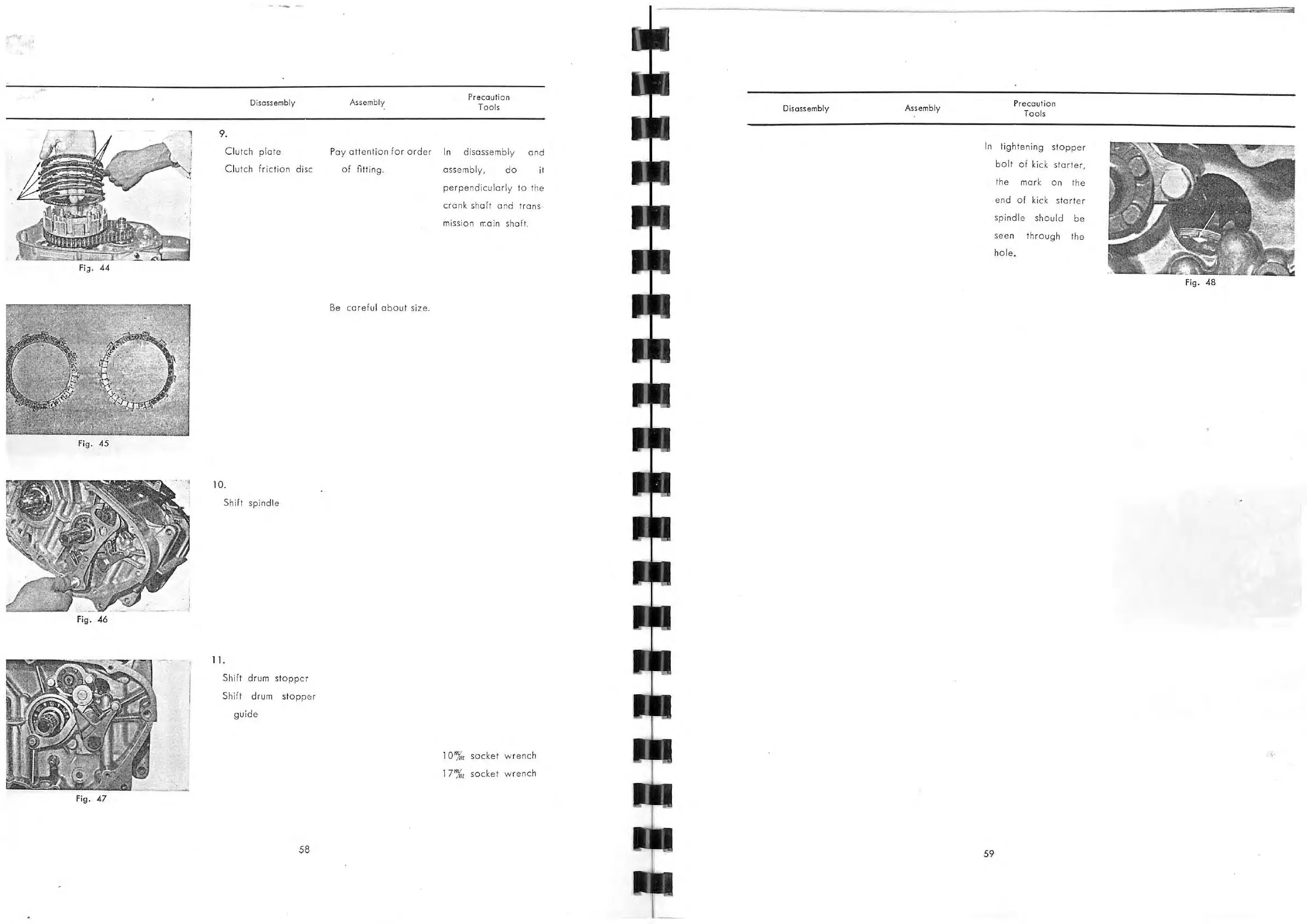

Honda CB77 - Page 31

Fi .;J. 44
Fi g. 45
Fig. 46
fig. 47
Disassembly
9.
Clutch plate
Clutch friction disc
10.
Shift spindle
11.
Shift drum stopper
Shift drum stoppc::r
guide
58
Assembly
Precaution
Tools
Pay attention for order In disassembly and
of fitting .
Be care ful about size.
assembly,
do it
perpendicular ly to the
cro nk sha ft and trans
mission
rr.o in shaft.
10"%11 socket wrench
1 7~'j{}/ socket wrench
Disassembly
Assembly
Precautio n
T ools
In tightening stopper
bolt of kick starter,
the mark on the
end
of kick sl arter
spindle should be
seen through the
ho le.
59
