B. Muffl~r

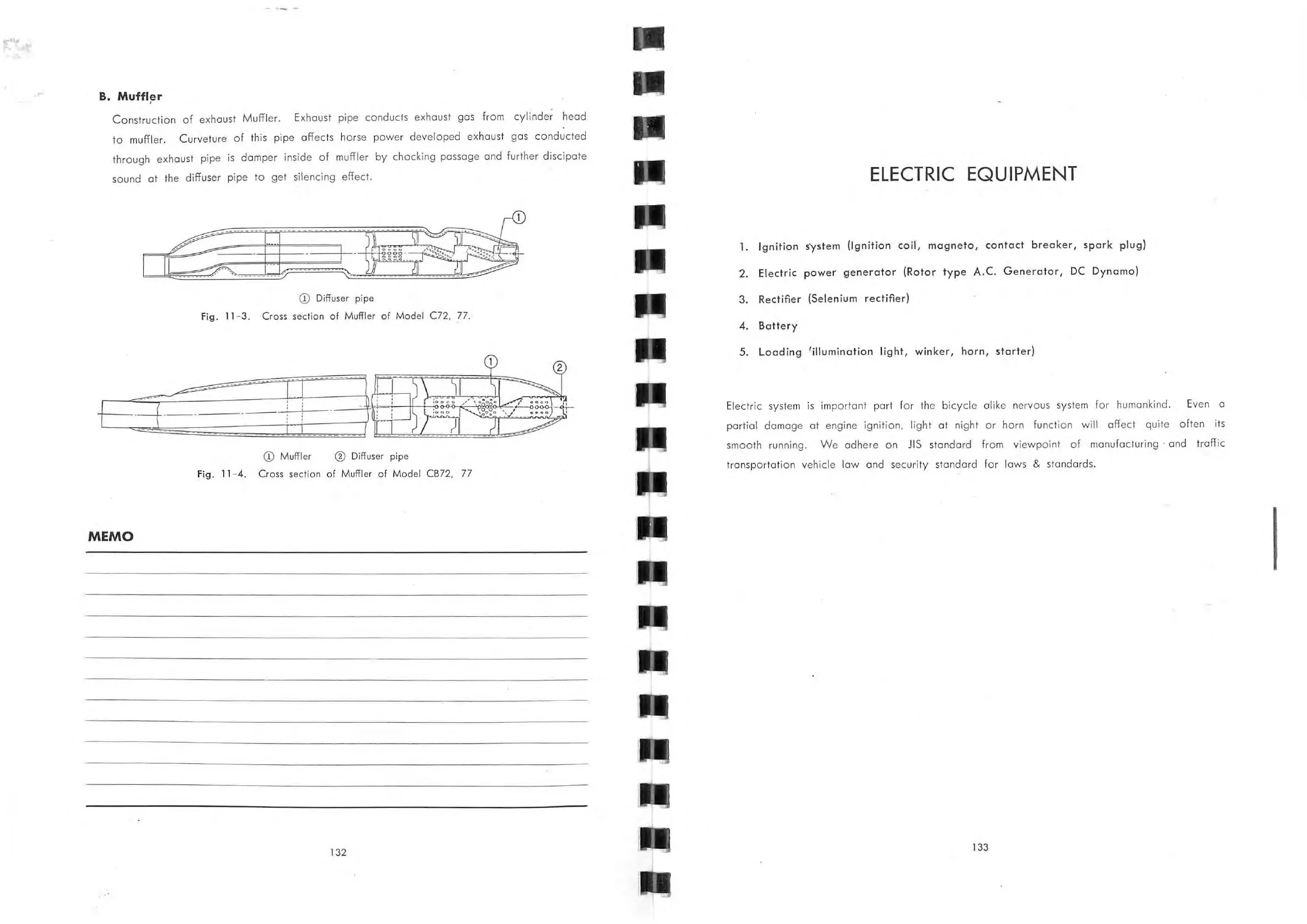

Construction of exhaust Muffler. Exhaust pipe conducts exhaust gas from cylinder head
to muffler. Curv eture of this pipe affects horse power d eveloped exhaust gas c onducted
thr ough exhaust pipe is damper inside of muffler by chocking passage and further discipate
sound at the diffuser pipe to get silencing effect.
CD Diffuser pipe
Fig .
11 - 3. Cross section of Muffler of Model C72, 77.
CD Muffler
® Diffuser pipe
Fig . 11 - 4.
Cross seclion of Mu ff ler of Model CB72, 77
MEMO
1 32
ELECTRIC EQUIPMENT
1. Ignition syst em (Ignition coil, magn e to, contact breaker, spark plug)
2. El e ctric po wer generator (Rotor typ e A.C. Generator, DC Dynamo)
3. Rectifi er (Selenium rectifier)
4. B atte ry
5. Loading 'illum in at ion light , winker, h orn, s tart er)
El ectric system is imp or t ant par! for th e bicycle alike nervOus system for humankind. Ev en a
partial damag e at engine ignition, l ight at ni ght or horn function will affect quite often i ts
smooth running. We adhere on JI S standard from viewp oint of manufacturing ' and traffic
transportation vehicle law and security standard for law s & standards.
1 33
