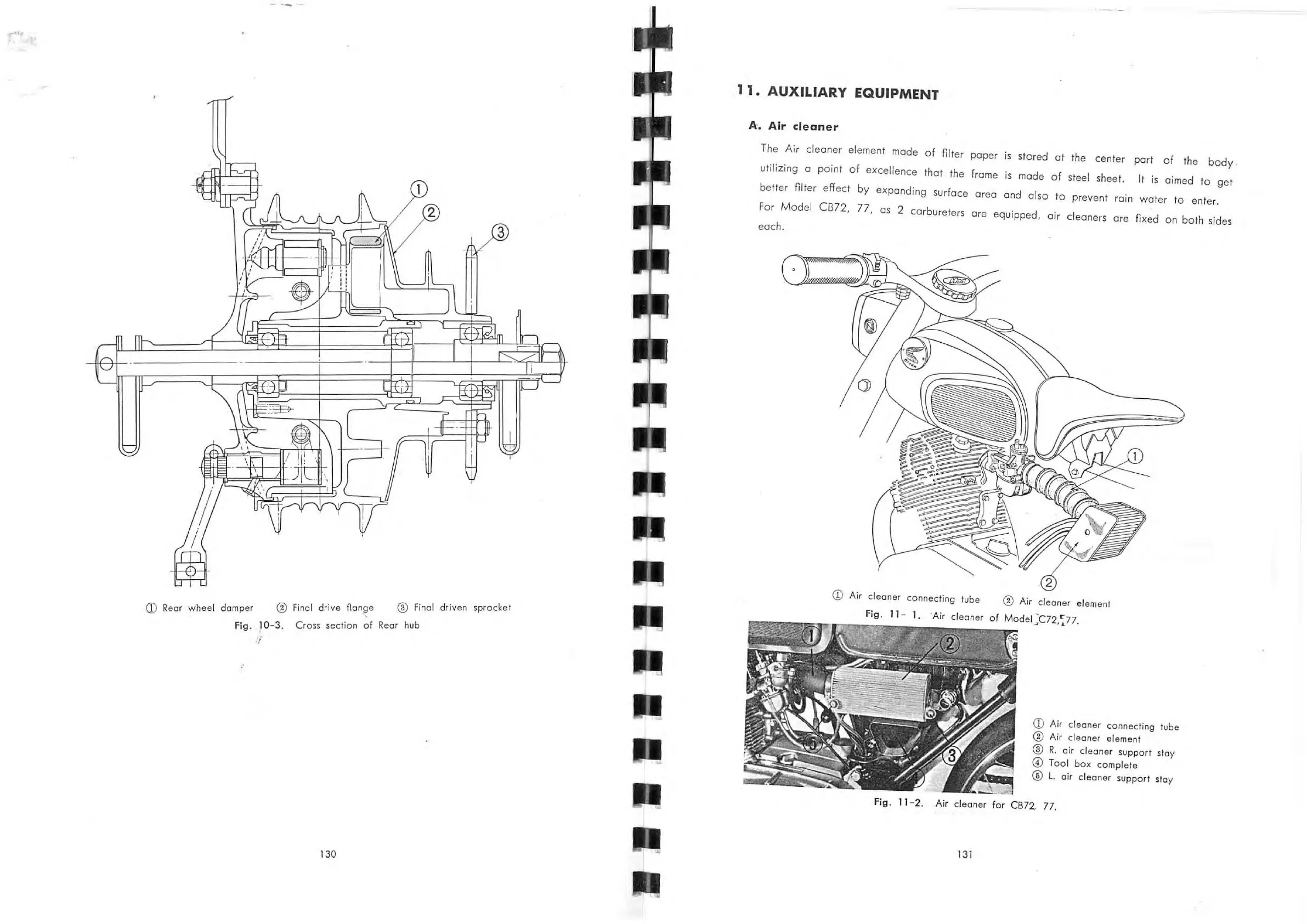

CD Rea r wheel damper
® Final drive flan,ge
® Final driven sprocket
Fig . 10 - 3.
Cross section of Rear hub
-/
1 30
1 1. AUX ILIARY EQUIPMENT
A. Air cleaner
Th e Air cleaner element made of niter paper is stored at the center part of the body .
utilizing a point of excellence that the frame is made of steel sheet. It is aimed to get
better niter effect by expanding surface area and also to prevent rain water to enter.
For
Model CB72, 77, as 2 carbureters are equipped, air cleaners are nxed on both sides
each.
CD Air cleaner connecting tube ® Air cleaner el ement
Fig , 11 - 1. 'Air cleaner of Model :C72, ~77,
CD Air cleaner connecting tube
® Air clea ner element
® R. a ir cl eaner support stay
@) T oo l box comp l ete
® l. air cl eaner support stay
Fig. 1.1 -2. Air cl ea ne r for CB 72, 77.
