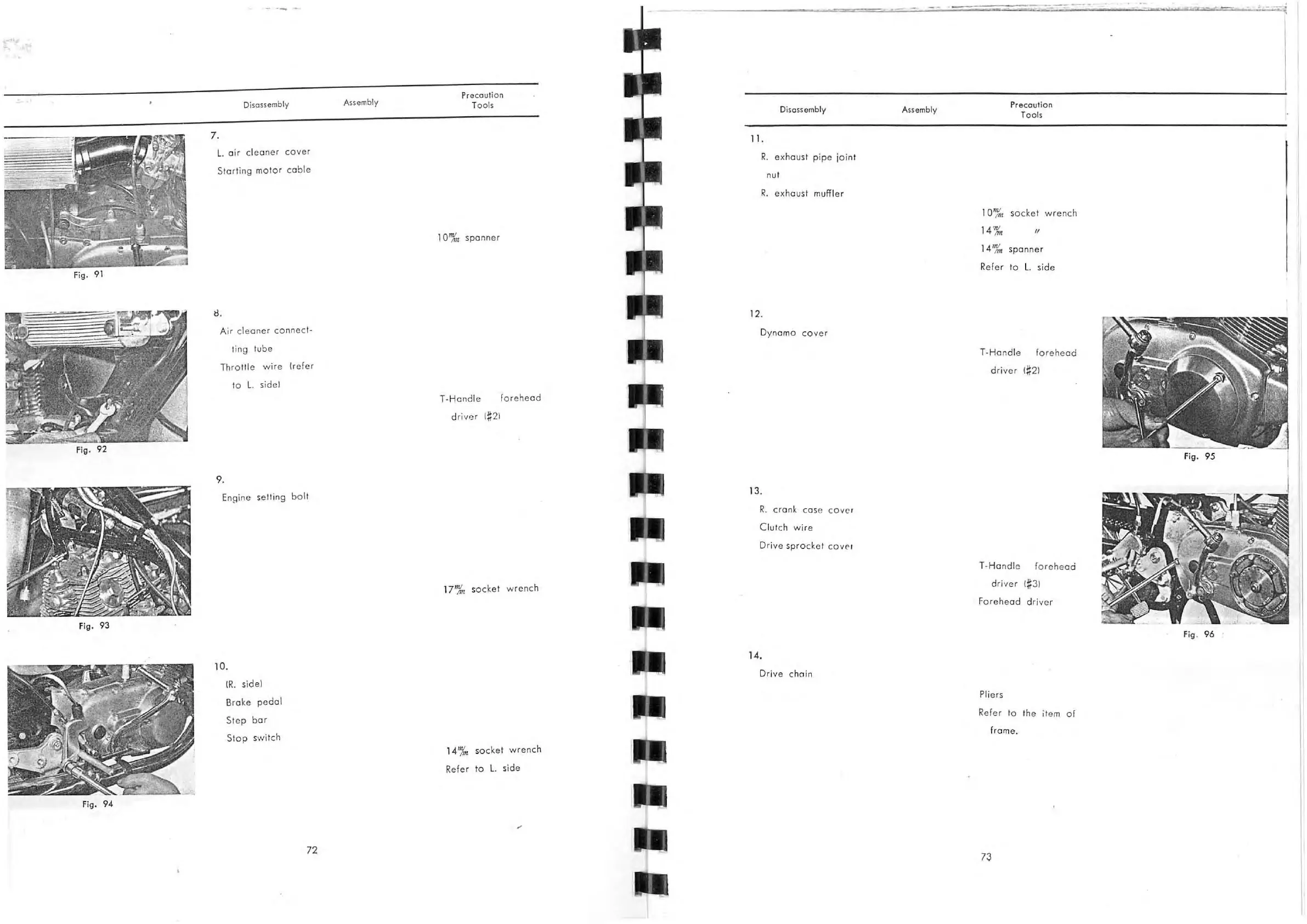

Disassembly
7.
l. a ir cle a ner cover
Starling motor cable
tl.
Air cl eaner connect-
ting lube
Throt1le wire (refer
to l. sidel
9.
Enfjine selling bolt
10.
IR. sidel
Brake pedal
Slep bar
Stop switch
72
Assembly
Precaution
Tools
1 0""n spanner
T-Handle
forehead
driver 1~21
17 ""11 s ocket wrench
1 4' %t s ocket wrench
Refer to l. side
Disassembly
11.
R. exhaust pipe joint
nul
R. exhaust muffle r
12.
Dynamo cover
13.
R. crank case COver
Clutch wire
Dr ive spr ocket COV(' I
14.
Drive chain
Assembly
Precaution
T ools
10
'
%1 socket wrench
14 ''%11 "
14 '% 1 spanner
Refer
to l. side
T -Hand le forehead
driver (~21
T- Ha ndle forehead
driver 1#31
Forehead driv er
Pliers
Refer to the item of
frame.
73
