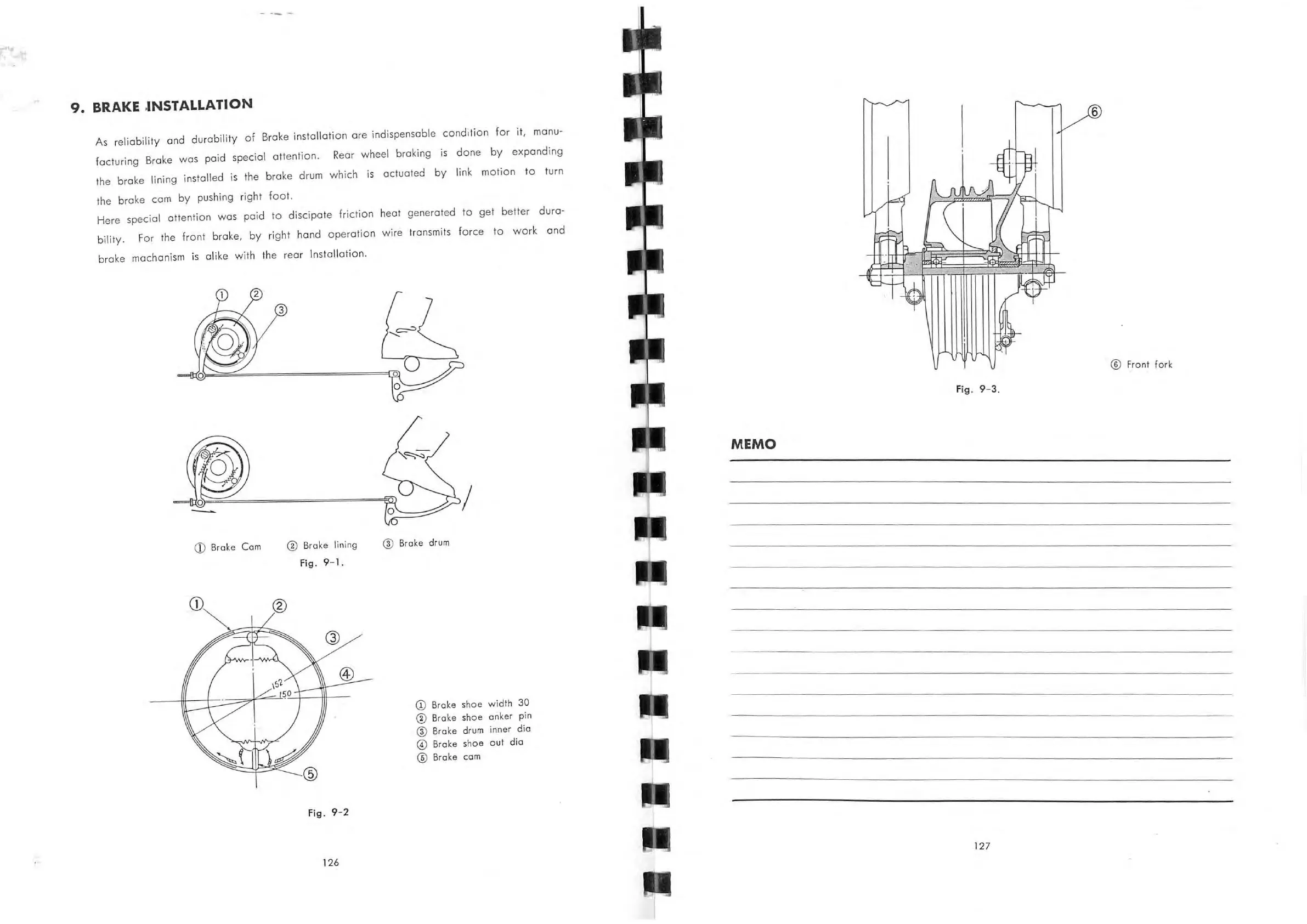

9. BRAKE . INSTALLATION
As reliability and durability of Brake installation ore indispensable cond,tion for it, manu-
facturing Brake was paid special attention. Reor wheel braking is done by expanding
the brake lining installed is the brake drum which is actuated by link motion to tUrn
the brake cam by pushing right foot.
Her e sp ecial attention was paid to disci pate fr icti on heat generated to get better dura-
bility. For the fro nt brake, by right hand operation wire transmits force to work and
brake machanism is alike with the rear I nstallation.
3
-
CD Broke Cam
® Brake lining
Fig . 9- 1.
Fig. 9- 2
126
@ Brake drum
CD Brake
® Brake
@
Brake
0
Brake
®
Broke
/
shoe width 30
s hoe onker pin
drum
inner dio
shoe
out dio
cam
6
® Front fork
Fig . 9-3.
MEMO
12 7
