Honda EU65is Service Manual

2-51

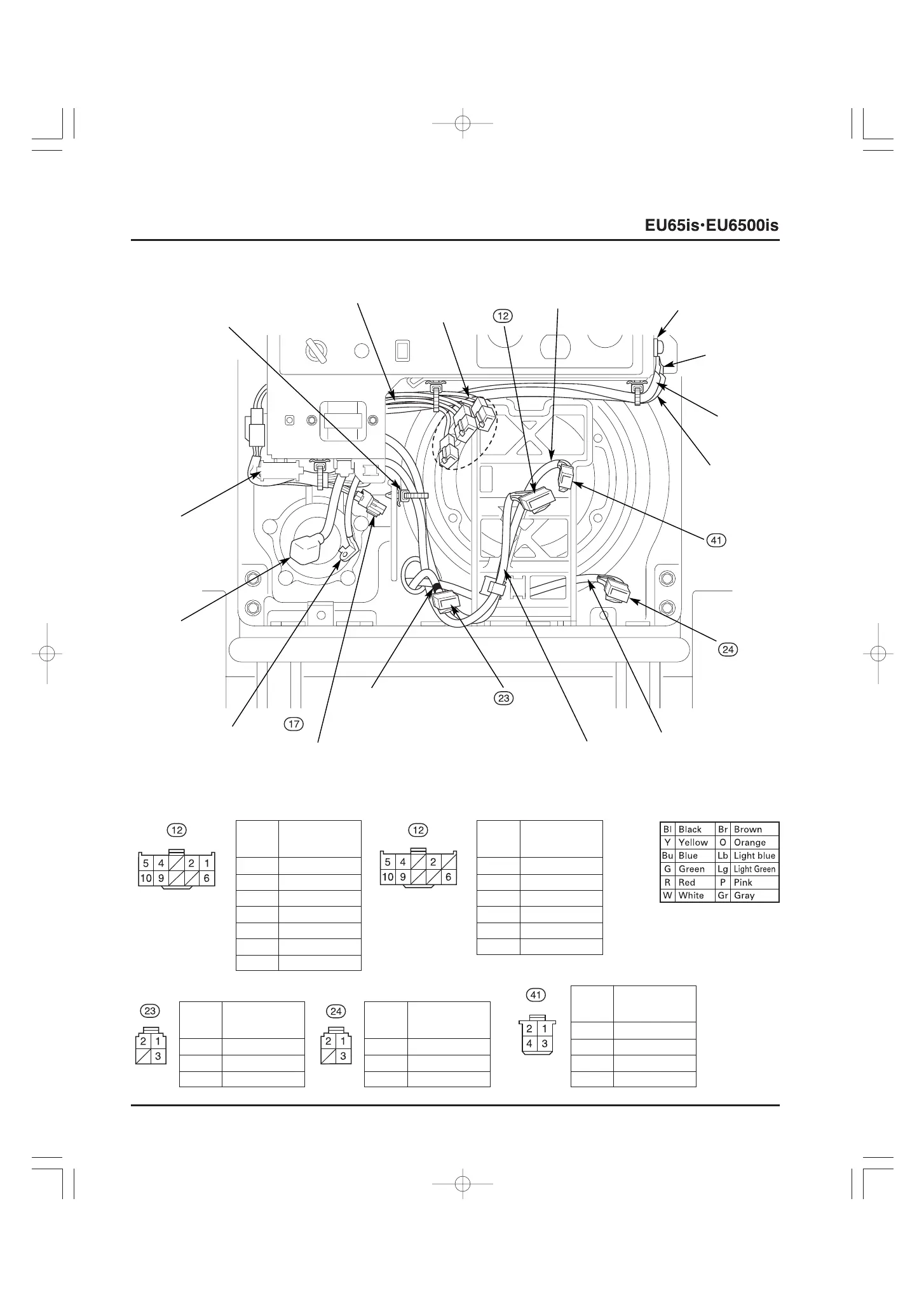

10. CABLE/HARNESS ROUTING
[13]
T42 (Bl):
BATTERY
POSITIVE (+)
TERMINAL
[12]
T41 (Bl):
BATTERY NEGATIVE
(–) TERMINAL
[10]
GENERATOR WIRE
HARNESS
(RED TAPE MARK)
[8]
GENERATOR WIRE
HARNESS
[14]
FUSE BOX
[9]
CONTROL WIRE
HARNESS
[3]
See P. 2-60
[11]
See P. 2-52
through 58
[2] CONTROL WIRE
HARNESS
[4]
ENGINE WIRE
HARNESS
[4]
ENGINE
WIRE
HARNESS
[7]
MAIN WIRE
HARNESS
(C type only)
[1]
WIRE HARNESS
BAND (4)
[5]
GND3
(G: C and L types)
(Y/G: U, R and SK types)
[6]
GND9
(Y/G: C type
only)
• CONNECTORS (Terminal Arrangement)
Viewed from terminal side:
[2]
Terminal [3] Wire color
number
1W, *:R/W
2Y, *:R/Y
4O/W
5O/Y
6W, *:R/W
9O/Bu
10 O/G
[2]
Terminal [3] Wire color
number
1W
2R
3Bu
[2]
Terminal [3] Wire color
number
1W
2R
3Bu
[4] *: SK type only
[1]: C, L and SK
types only
[2]
Terminal [3] Wire color
number
2 R/Y
4O/W
5O/Y
6 R/W
9O/Bu
10 O/G
[2]
Terminal [3] Wire color
number
1Bu
2Y
3R
4W
[5]: U and R types
only
cap.02EU65is6500is(Eu).qxd07.12.175:58PMページ2-51

Honda EU65is Specifications

General

Model	EU65is
Type	Inverter
Maximum AC Output	6500W
Rated AC Output	5500W
Noise Level at 1/4 Load	52 dB(A)
Noise Level at Rated Load	60 dB(A)
Starter System	Electric
Engine Displacement	389 cc
i-Monitor	Yes
AVR	Yes
DC Output	12V, 8.3A
Engine	Honda GX390
Run Time at Rated Load	5.1 hours
AC Output	120/240V
Fuel Type	Gasoline
