Honda EU65is Service Manual

8-3

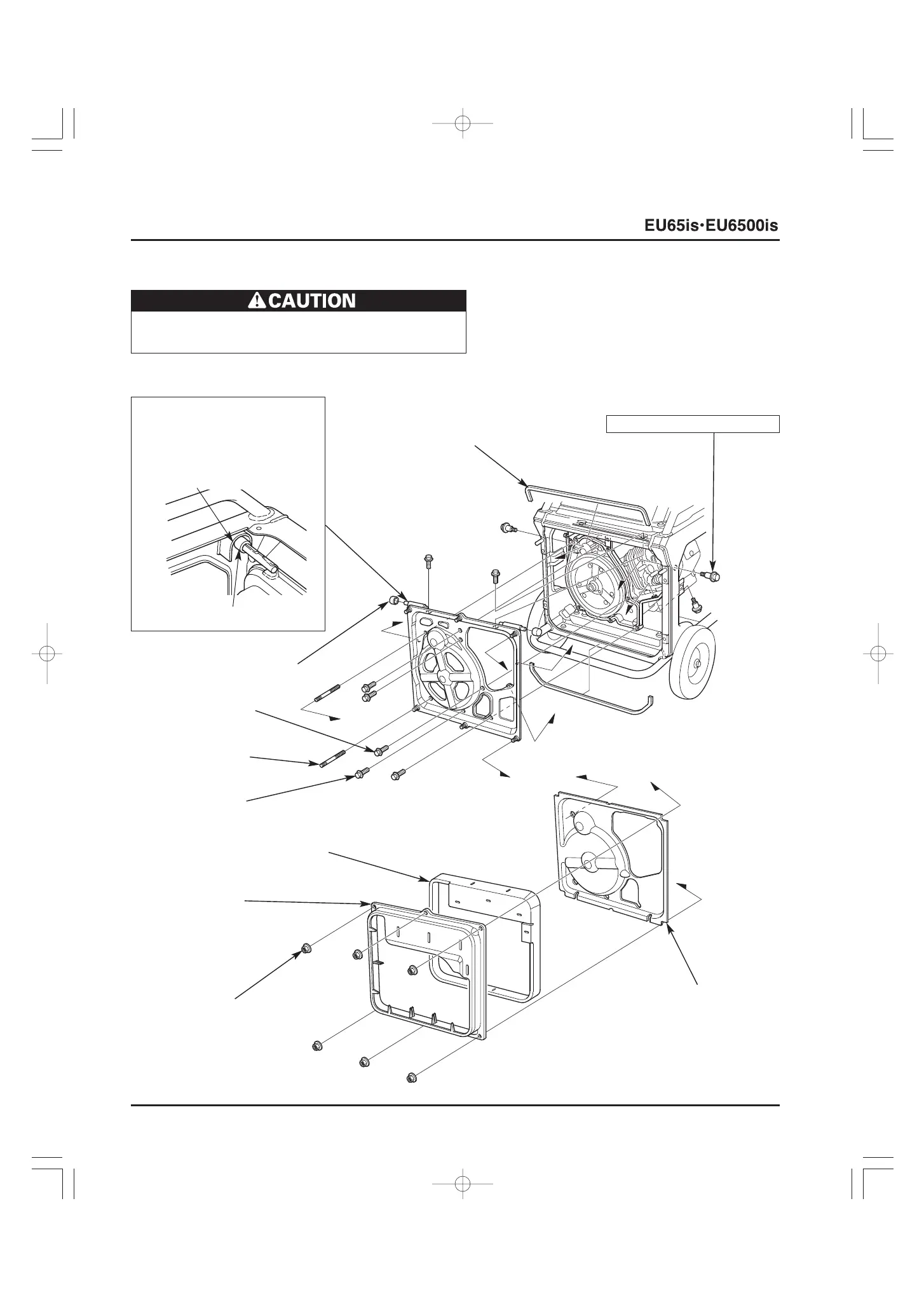

3. INNER MUFFLER PROTECTOR
[6]
AIR GUIDE
[7]
AIR GUIDE
INSULATOR
[4]
INSULATOR
[2]
SEAL RUBBER (2)
Do not touch the insulator with bare hands. The glass wool
of the material sticks in the skin and is dangerous.
6 x 12 (5)
[8]
8 mm STUD BOLT (2)
[5]
6 mm FLANGE NUT (6)
[9]
STOPPER RUBBER (2)
[3]
6 mm SPECIAL BOLT (3)
8.5 N
.
m (0.9 kgf
.
m, 6.3 lbf
.
ft)
[1]
INNER MUFFLER PROTECTOR
INSTALLATION:
Install the inner muffler protector
by aligning the stopper rubber
with the cutout on the frame side
channel.
[1]-1 CUTOUT
[1]-2 STOPPER RUBBER
8 x 16 (2)
cap.08EU65is6500is07.12.174:54PMページ8-3

Honda EU65is Specifications

General

Model	EU65is
Type	Inverter
Maximum AC Output	6500W
Rated AC Output	5500W
Noise Level at 1/4 Load	52 dB(A)
Noise Level at Rated Load	60 dB(A)
Starter System	Electric
Engine Displacement	389 cc
i-Monitor	Yes
AVR	Yes
DC Output	12V, 8.3A
Engine	Honda GX390
Run Time at Rated Load	5.1 hours
AC Output	120/240V
Fuel Type	Gasoline
