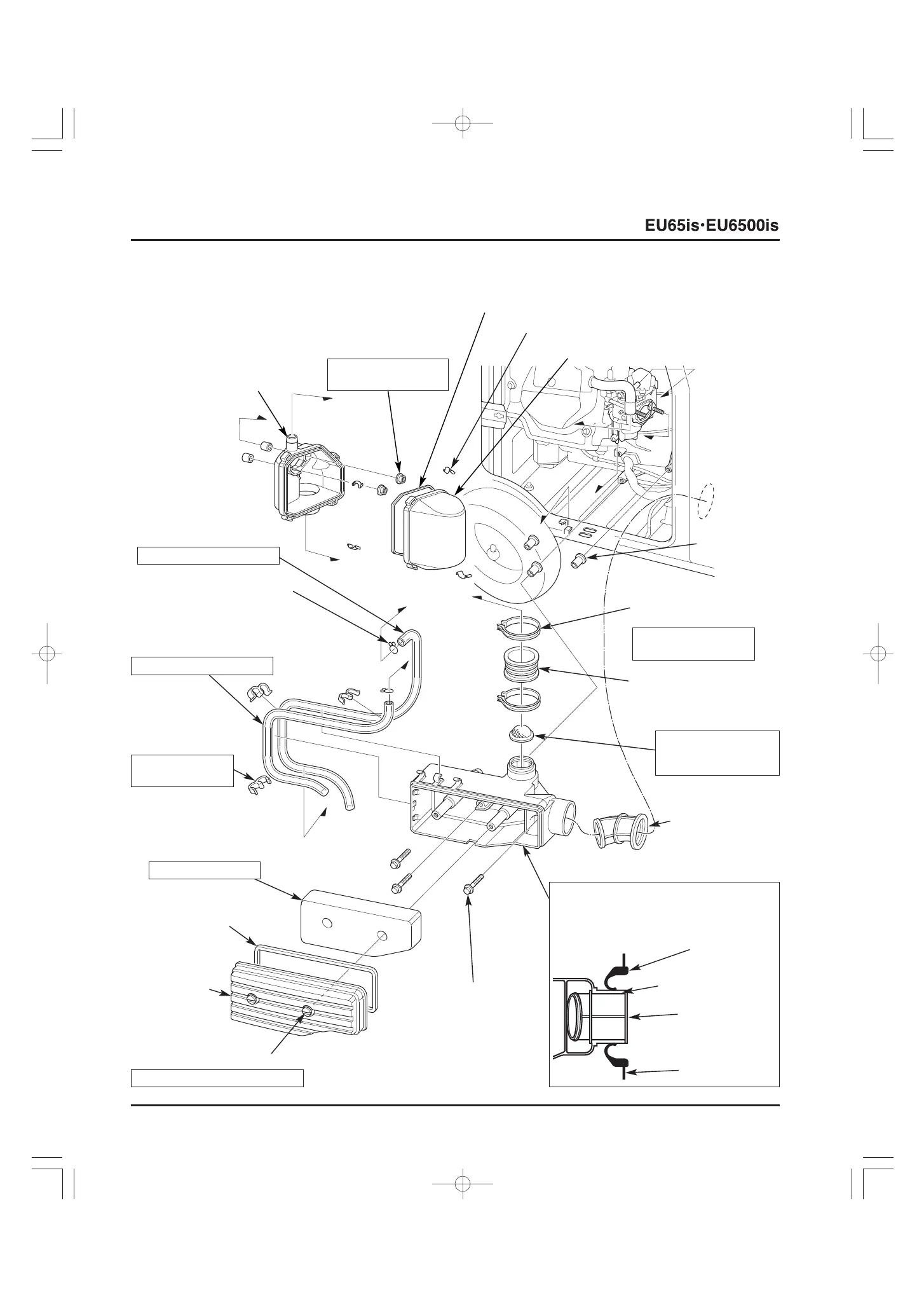

2. AIR CLEANER
a. DISASSEMBLY/REASSEMBLY
Remove the left maintenance cover (P. 4-1).
[1]
SILENCER CHAMBER
[3]
SILENCER CHAMBER SEAL
[5] SILENCER COVER
[4] COVER CLIP (4)
[18] TUBE CLIP C8 (2)
6 x 23 (3)
[10]
INTAKE AIR GUIDE
TUBE
[6]
COLLAR (3)
[8] AIR CLEANER
CONNECTING TUBE
[13]
AIR CLEANER
COVER
[14] AIR CLEANER
COVER SEAL
[12]
AIR CLEANER COVER BOLT (2)
2.3 N
.
m (0.2 kgf
.
m, 1.7 Ibf
.
ft)
[7]
54 mm AIR CLEANER
CONNECTING TUBE
BAND (2)
0.7 N
.
m (0.1 kgf
.
m,
0.5 Ibf
.
ft)
[2]
6 mm FLANGE NUT(2)
[11] AIR CLEANER CASE
INSTALLATION:
Insert the intake port of the air cleaner
case into the separator seal B on the
front frame as shown.
[11]-1
SEPARATOR
SEAL B
[11]-2 INTAKE PORT
[9] FLAME TRAP
8.5 N
.
m (0.9 kgf
.
m,
6.3 Ibf
.
ft)
[15]
AIR CLEANER
ELEMENT
CLEANING: P. 3-4
[17]
4.5 x 8 x 400 mm VINYL TUBE
(CARBURETOR DRAIN TUBE)
INSTALLATION: P. 4-3
[16] TUBE CLAMP (3)
INSTALLATION:
P. 4-3
[19]
4.5 x 8 x 610 mm
VINYL TUBE
(AIR VENT TUBE)
INSTALLATION: P. 4-3
INSTALLATION:
Note the installation
direction.
[11]-3
INTAKE AIR
GUIDE TUBE
[11]-4
FRONT FRAME
cap.04EU65is6500is(Eu).qxd07.12.174:46PMページ4-2
