GX240 • GX270 • GX340 • GX390 (UT2/RT2) Technical Manual
8 © 2010 American Honda Motor Co., Inc — All Rights Reserved
Carburetor Controls
Types of cable:
Two types can be used, flexible wire core or solid wire.
Installation:

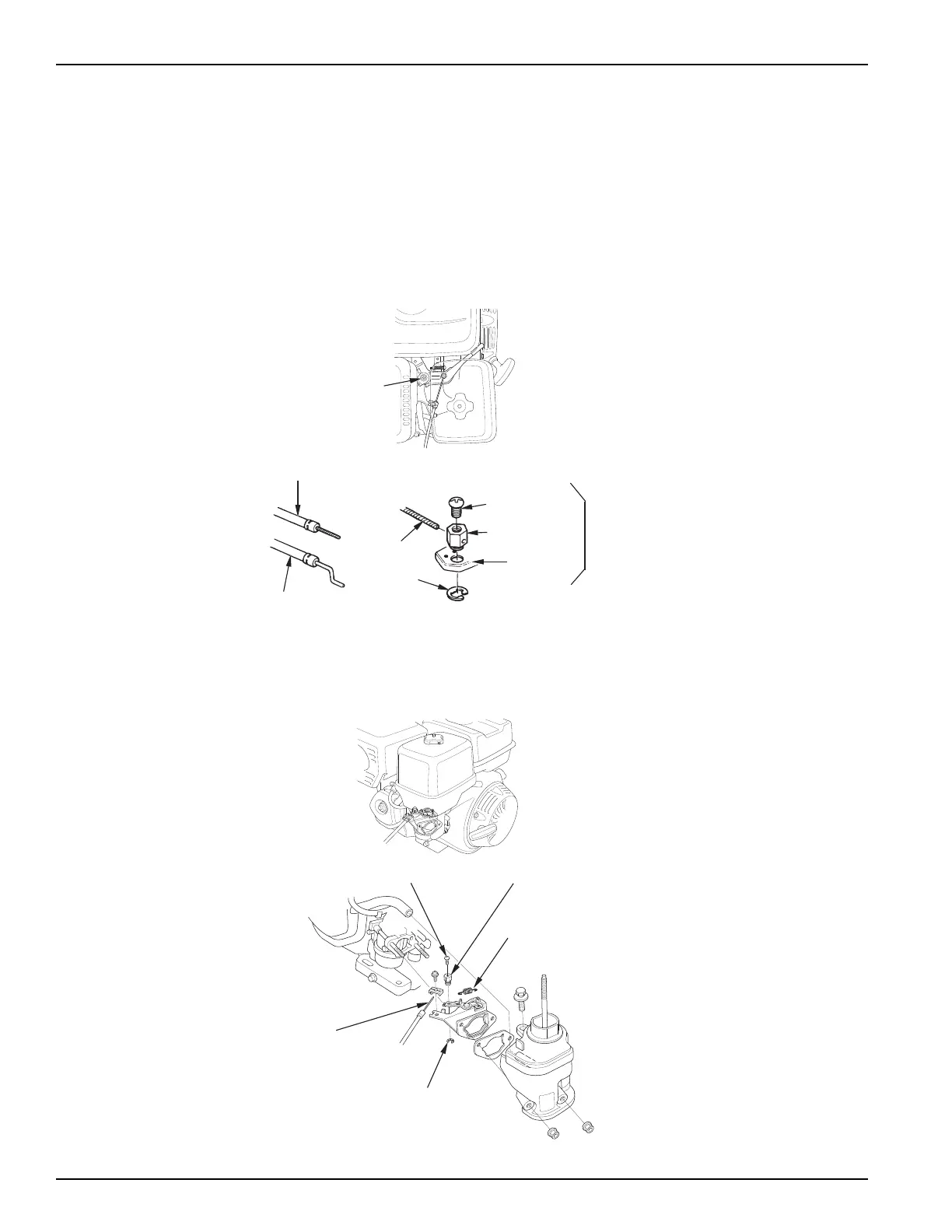

The throttle and choke control levers are provided with holes for optional cable attachment. The following illustrations
show installation examples for a solid wire cable and for a flexible, braided wire cable. If using a flexible, braided wire
cable, add a return spring as shown. It is necessary to loosen the throttle lever friction nut when operating the throttle
with a remote-mounted control.
Remote Control Throttle
Remote Control Choke.
Flexible wire core
mounting
Solid wire core
mounting
WIRE
5mm
CIRCLIP
4 mm SCREW
WIRE HOLDER
THROTTLE
LEVER
OPTIONAL
THROTTLE LEVER
FRICTION NUT
WIRE HOLDER
4 mm SCREW
WIRE
5 mm CIRCLIP
SPRING

Table of Contents

Other manuals for Honda GX240

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honda GX240 and is the answer not in the manual?

Honda GX240 Specifications

General IconGeneral
Compression Ratio8.2:1
PTO Shaft RotationCounterclockwise (from PTO shaft side)
Ignition SystemTransistorized magneto ignition
Fuel SystemCarburetor
Lubrication SystemForced splash
Displacement242 cm³
Net Power Output3, 600 rpm
Net Torque2, 500 rpm
Fuel Tank Capacity5.3 liters
Oil Capacity1.1 liters
Starting SystemRecoil starter
Dry Weight25 kg (55 lbs)
Bore x Stroke73.0 x 58.0 mm (2.9 x 2.3 in)
