Honda HRN216VYC User Manual

8-13

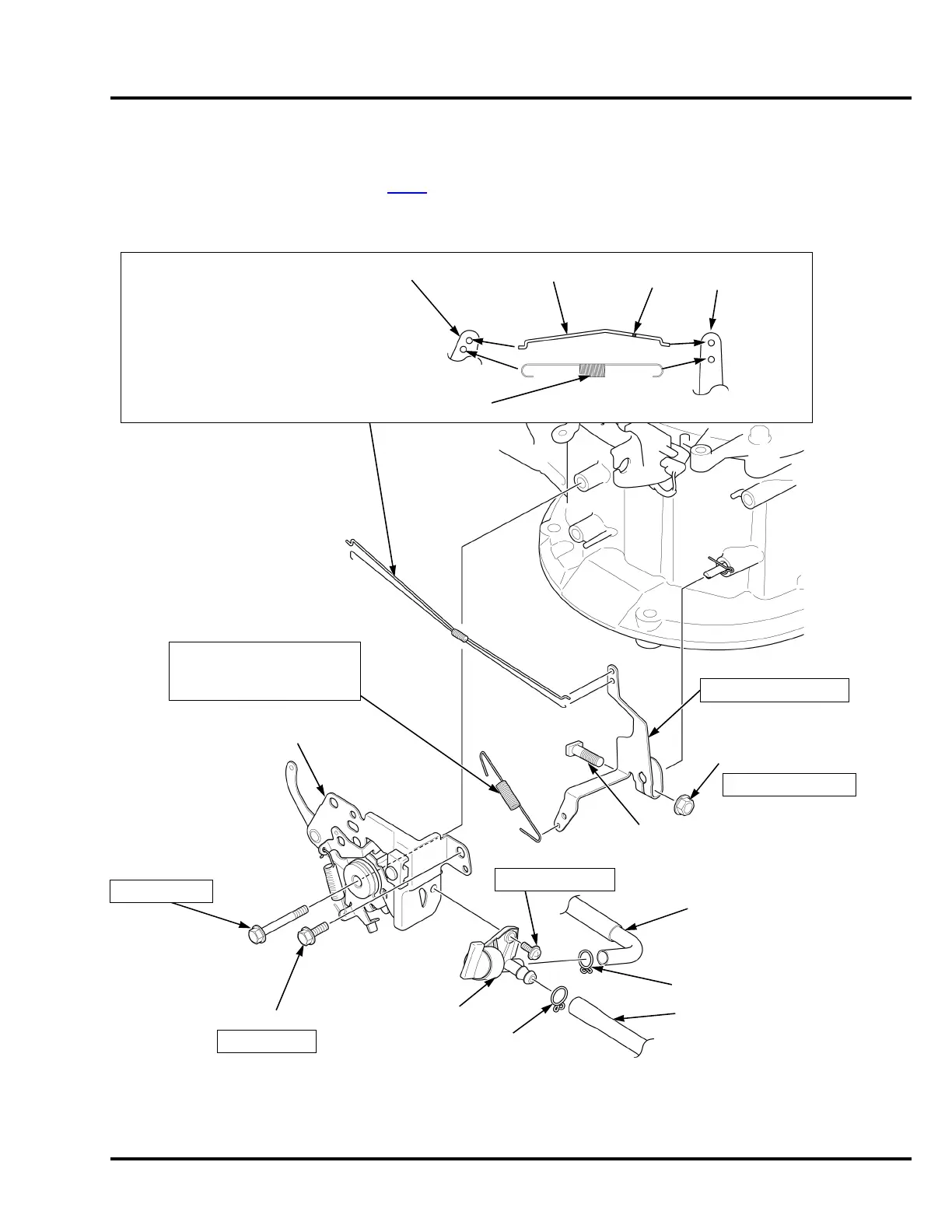

HRN216 FUEL SYSTEM
VYA TYPE
REMOVAL/INSTALLATION
Remove the air cleaner and carburetor (P. 8 -2
).
INSTALLATION:
Install with the short end side
toward the governor arm.
2.5 N•m (1.8 ft-lb)
GOVERNOR SPRING
SCREW (5 x 10 mm)
GOVERNOR ARM BOLT
GOVERNOR ARM NUT
FUEL VALVE
B12 TUBE CLIP
B8 TUBE CLIP
BOLT (CT bolt ; 6 x 14 mm)
CONTROL BASE
FUEL TUBE
GOVERNOR ARM
INSTALLATION:
Install the governor rod through the
throttle return spring as shown.
Connect each to the governor arm and
carburetor throttle arm as shown.
GOVERNOR ARM/THROTTLE RETURN SPRING
THROTTLE ARM GOVERNOR ROD
GOVERNOR
ARM
THROTTLE RETURN SPRING
12 N•m (9 ft-lb)
PAINT
FUEL TUBE
BOLT (CT bolt ; 6 x 50 mm)
12 N•m (9 ft-lb)
ADJUSTMENT: P. 3-21
12 N•m (9 ft-lb)

Honda HRN216VYC Specifications

General

Engine Type	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Weight	84 lbs
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Discharge	Rear
Side Discharge Capability	Yes
Cutting Height Adjustment	Lever
Cutting Height	1-4 inches
Drive Type	Variable Speed
