HRN216 SERVICE INFORMATION
10. TUBE AND HARNESS ROUTING
PKA/VKA/VLA TYPES
BREATHER TUBE
FUEL TUBE
FUEL TUBE
BREATHER TUBE

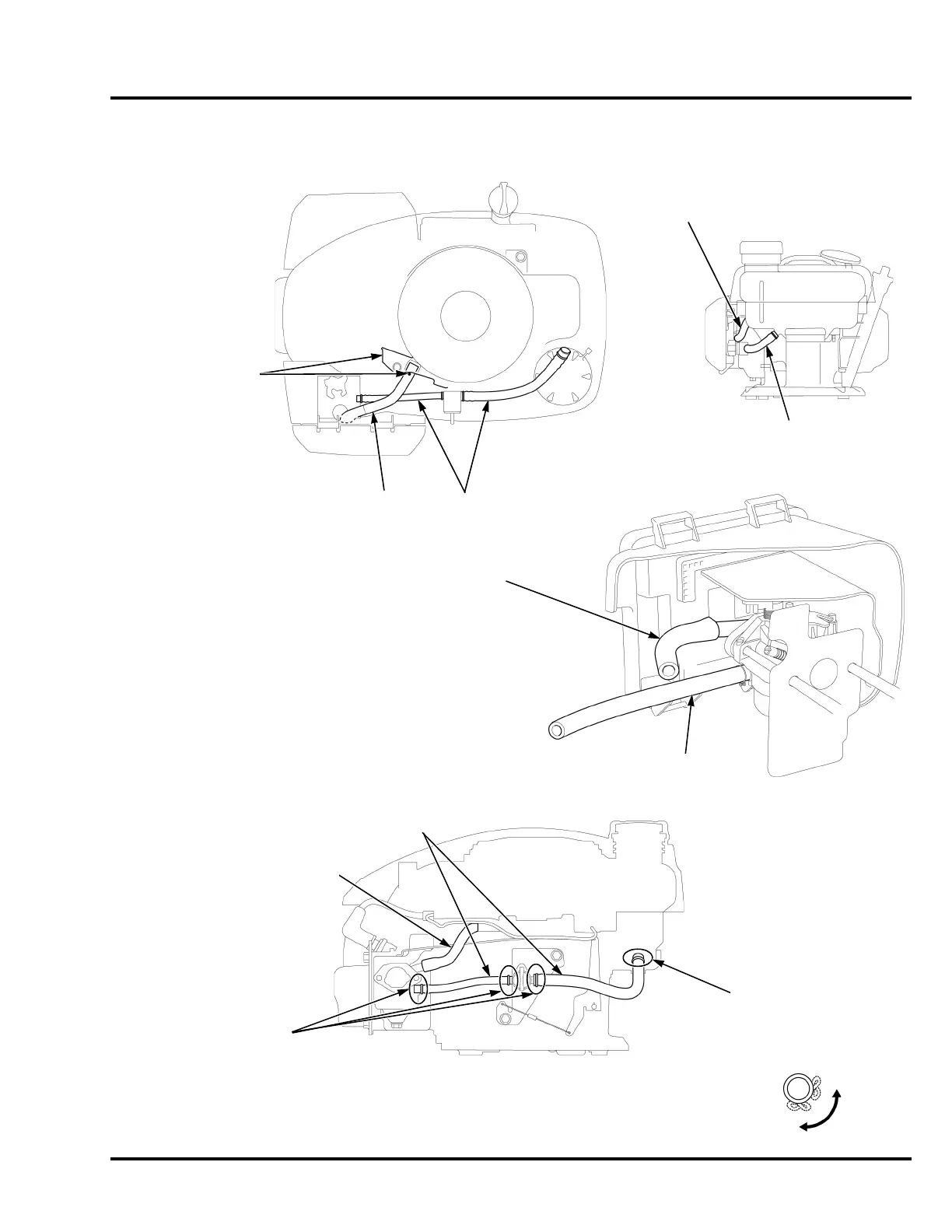

Insert the breather tube
to the crankcase cover
until the paint mark on
the tube aligns with the
edge of the brake assy.
BREATHER TUBE
FUEL TUBE
Attach the clip at 5.0 ± 3.0
mm (0.20 ± 0.11 in) from
the tube edge with the clip
lever facing down.
Attach the clip at 5.0 ± 3.0
mm (0.20 ± 0.11 in) from
the tube edge with the
center of the clip lever
within the range shown
below.
90°
FUEL TUBE
BREATHER TUBE
