11-13

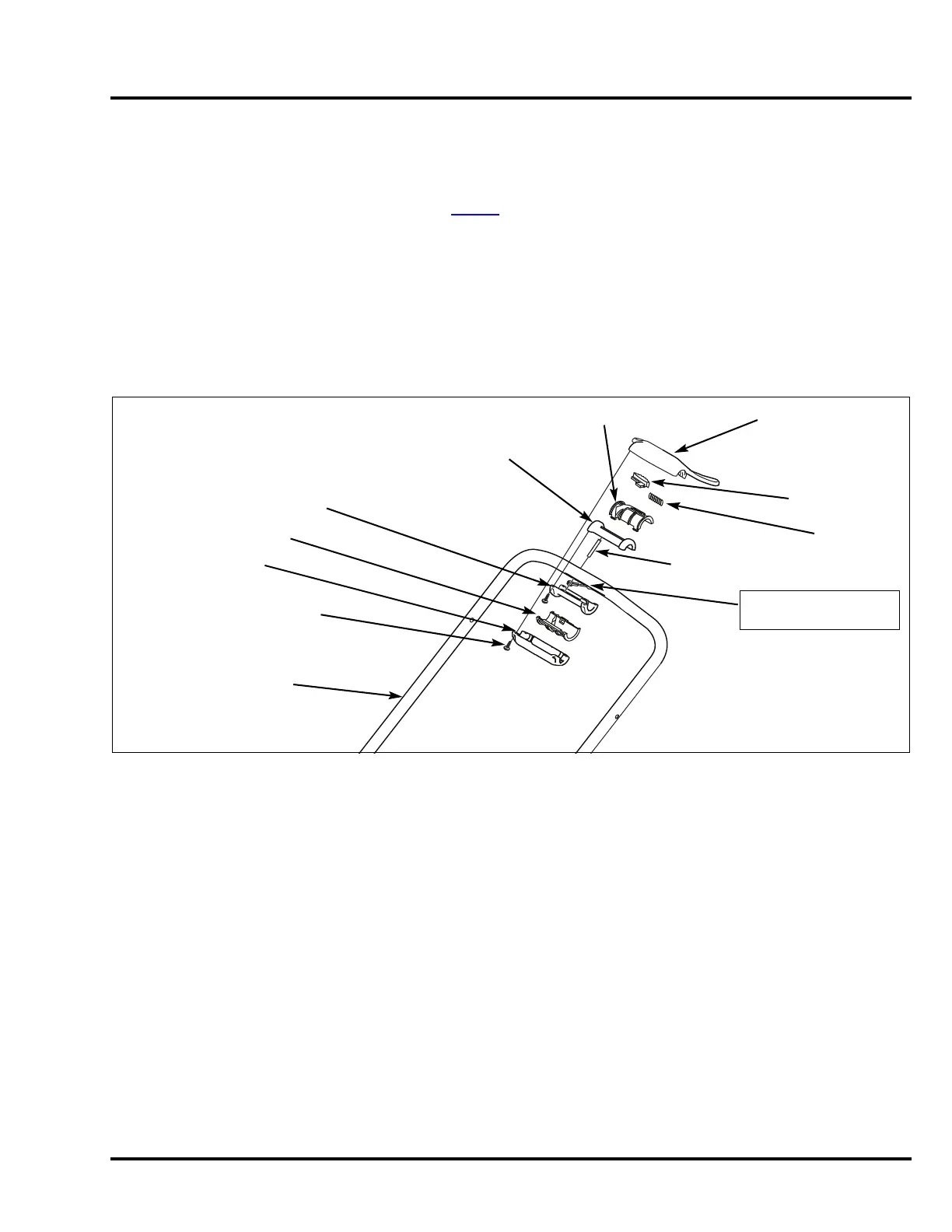

HRN216 HANDLEBAR/ CABLES/CONTROLS

2. SMART DRIVE CONTROL

REMOVAL

1. Fully loosen the Smart Drive cable adjuster (P. 3-10).

2. Remove the four 4 mm self-tapping screws and the upper and lower clutch grips.

3. Carefully remove the multi-position adjuster and spring.

4. Unsnap and remove the upper and lower bracket covers.

5. Remove the 5 x 37 mm roller pin, the four 4 mm self-tapping screws, and the upper and lower grip brackets

SMART DRIVE CABLE

REMOVAL/

INSTALLATION: P. 11 -1 6

SPRING

LOWER CLUTCH GRIP

MULTI-POSITION

ADJUSTER

UPPER GRIP BRACKET

5 x 37 mm

ROLLER PIN

4 mm SELF-TAPPING SCREW (8)

UPPER BRACKET COVER

UPPER CLUTCH GRIP

HANDLEBAR

LOWER BRACKET COVER

LOWER GRIP BRACKET

(the flywheel brake lever and cable

are shown removed for clarity.)
