Honda HRN216VYC User Manual

2-30
SERVICE INFORMATION HRN216

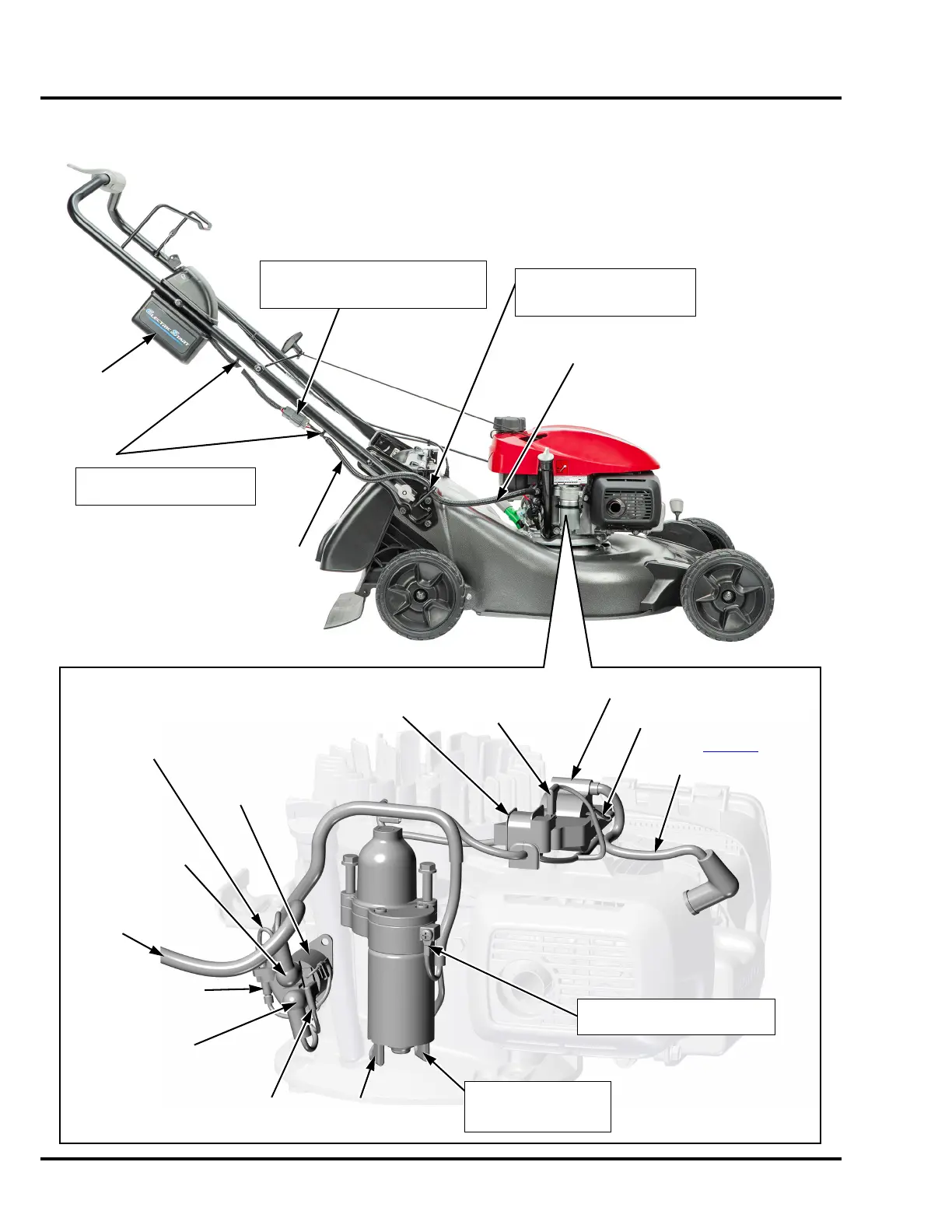

11. MAIN HARNESS ROUTING (VLA TYPE)
CLIPS
Clip harness securely to the
handle pipe.
STARTER HARNESS
HARNESS GUIDE
Route the starter harness
through the metal harness
guide.
BATTERY BOX
BATTERY CHARGER CONNECTOR
Disconnect the connector, and plug the
battery charger into the side of the
connector closest to the battery box.
STARTER MOTOR
POSITIVE TERMINAL
(WHITE WIRE)
ENGINE STOP SWITCH
WIRE CONNECTOR
(YELLOW WIRE)
WHITE WIRE TO
STARTER MOTOR
POSITIVE TERMINAL
BATTERY WIRE FROM
STARTER SWITCH
(RED WIRE)
STOP SWITCH NEGATIVE
GROUND WIRE (BLACK)
(also see page 9-11
)
STARTER
HARNESS
SPARK PLUG WIRE
CHARGE COIL WIRE
(WHITE WIRE)
CHARGE COIL
(built into
ignition coil)
IGNITION COIL
STARTER
MAGNETIC
SWITCH
START SWITCH AND BATTERY
GROUND (BLACK WIRE)
STARTER MOTOR
NEGATIVE TERMINAL
(BLACK WIRE)
YELLOW WIRE
(from key switch)
BULLET CONNECTOR
(yellow wire to black wire)

Honda HRN216VYC Specifications

General

Engine Type	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Weight	84 lbs
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Discharge	Rear
Side Discharge Capability	Yes
Cutting Height Adjustment	Lever
Cutting Height	1-4 inches
Drive Type	Variable Speed
