CAMSHAFT/CRANKSHAFT/ PISTON/CYLINDER HRN216
CRANKSHAFT OIL SEAL
CRANKCASE COVER SIDE
Remove the oil seal.

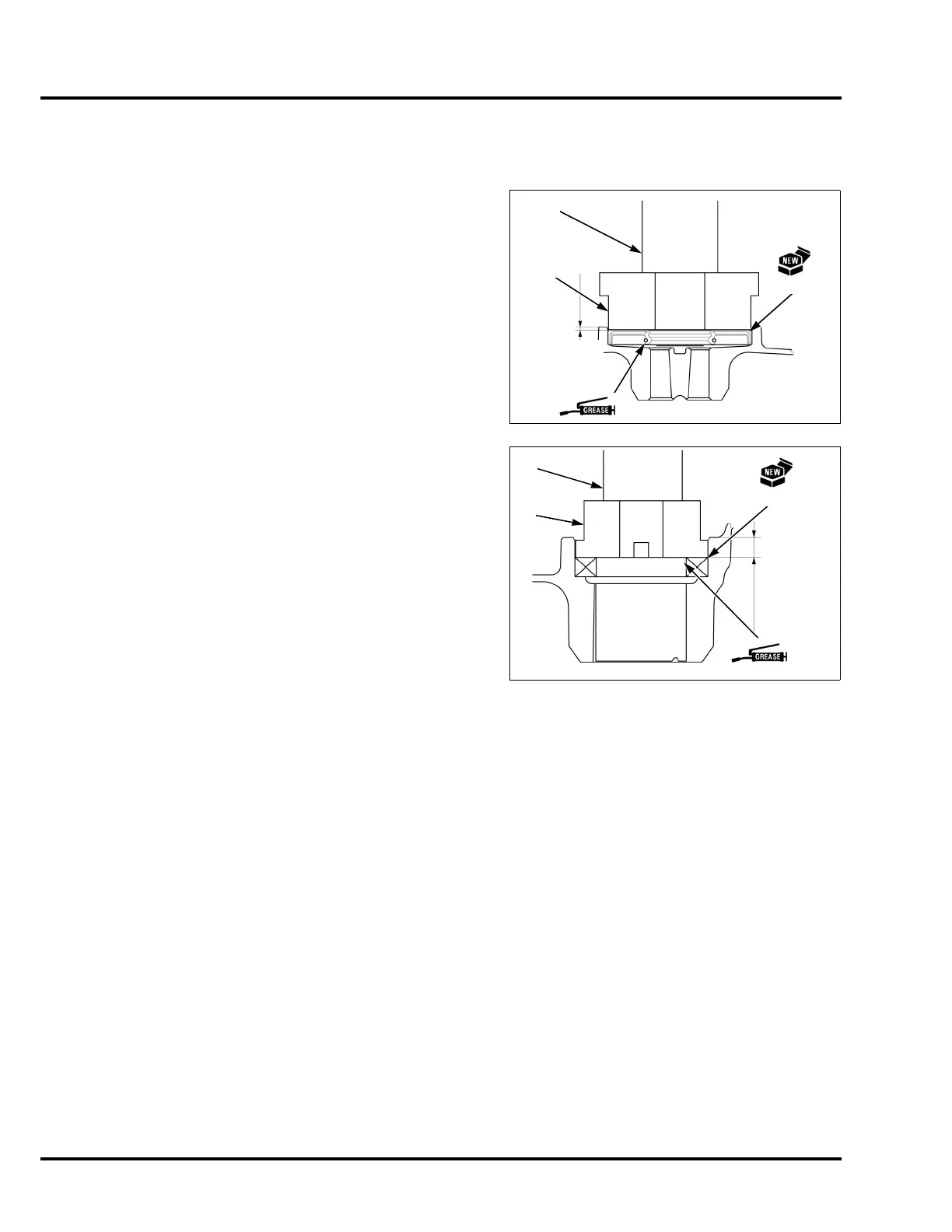

Drive a new oil seal [1] in the position as shown using the special
tools.
CRANKCASE SIDE
Remove the oil seal.
Drive a new oil seal [1] in the position as shown using the special
tools.
INSTALLATION HEIGHT: 1.0 – 1.5 mm (0.04 – 0.06 in)
TOOLS:
Bearing driver attachment,
62 x 64 mm [2]
07947-6340400
Driver handle [3] 07749-0010000
INSTALLATION HEIGHT: 5.5 – 6.0 mm (0.22 – 0.24 in)
TOOLS:
Bearing driver attachment,
37 x 40 mm [2]
07746-0010200
Driver handle [3] 07749-0010000
1.0 – 1.5 mm
(0.04 – 0.06 in)
[3]
[2]
[1]
5.5 – 6.0 mm
(0.22 – 0.24 in)
[3]
[2]
[1]
