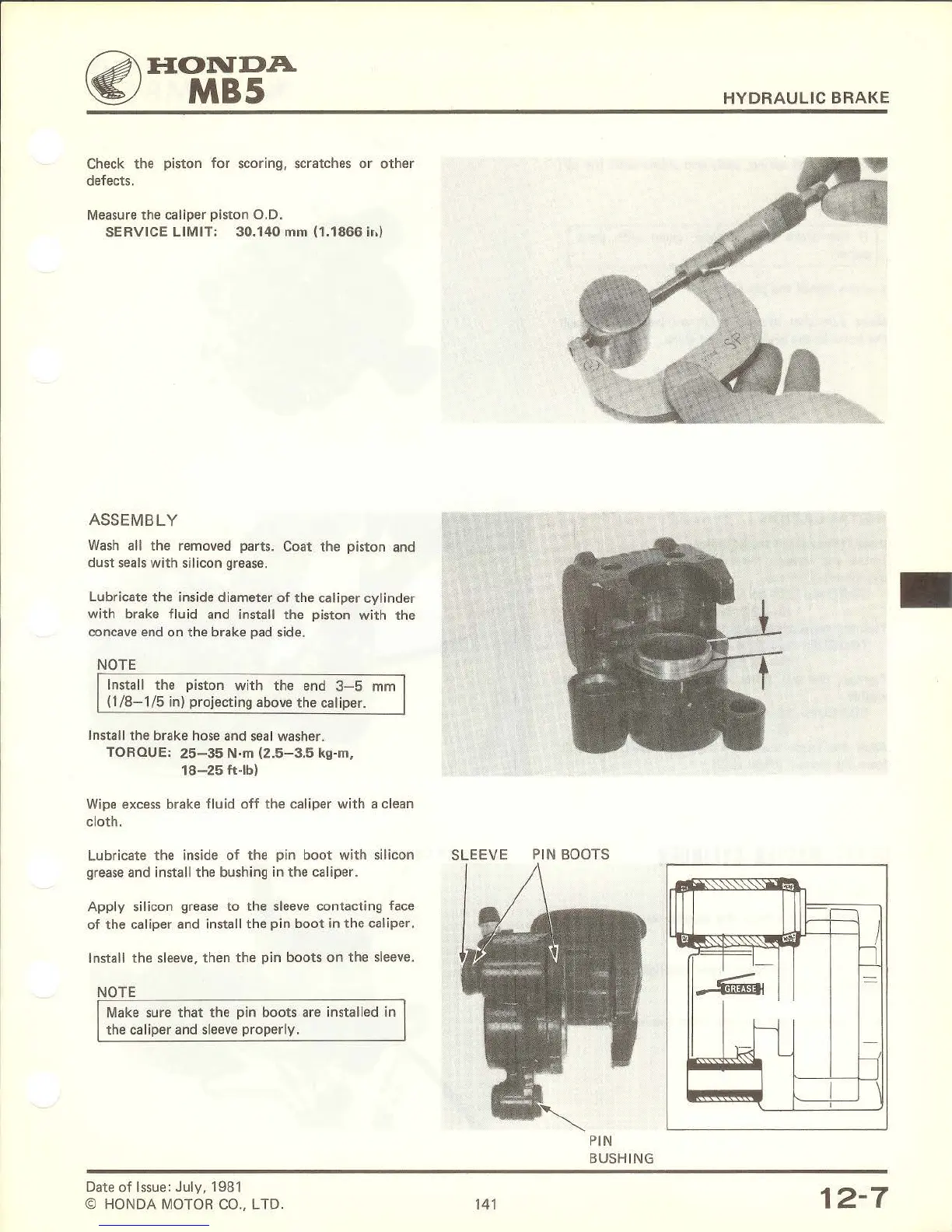

Honda MB5 1982 Shop Manual

~HONDA
~ MB5
Check the piston for scoring, scratches or other
defects.
Measure
the caliper piston O.D.
SERVICE LIMIT: 30.140 mm (1.1866 ir,)
ASSEMBLY
Wash all the removed parts. Coat the piston and
dust seals with silicon grease.
Lubricate the insi de d ia meter of the caliper cylinder
with brake fluid and
install the piston with the
concave end on the brake pad side.
NOTE
Install the piston with the end 3-5 mm
(1/8-1/5 in) projecting above the caliper.
Install the brake hose and seal washer.
TORQUE: 25-35 N·m (2.5-3.5 kg- m,
18-25 ft-lb)
Wipe excess brake fluid off the caliper with a clean
cloth.
Lubricate the inside of the pin boot with silicon
grease and install the bushing in the caliper.
Apply
silicon grease to the sleeve contacting face
of the caliper and install the pin boot in the caliper.
Install the sleeve, then the pin boots on the sleeve.
NOTE
Make sure that the pin boots are installed in
the caliper and sleeve properly.
Date
of Issue: July, 1981
© HONDA MOTOR CO ., LTD.
SLEEVE PIN BOOTS
141
PIN
BUSHING
HYDRAULIC BRAKE
• "- "-' '"" -.....
---,
d
.1:;1~"-.'\.. ' """'''""""
I r._
... ~
-
-
~~
-
H
I
I
12-7
