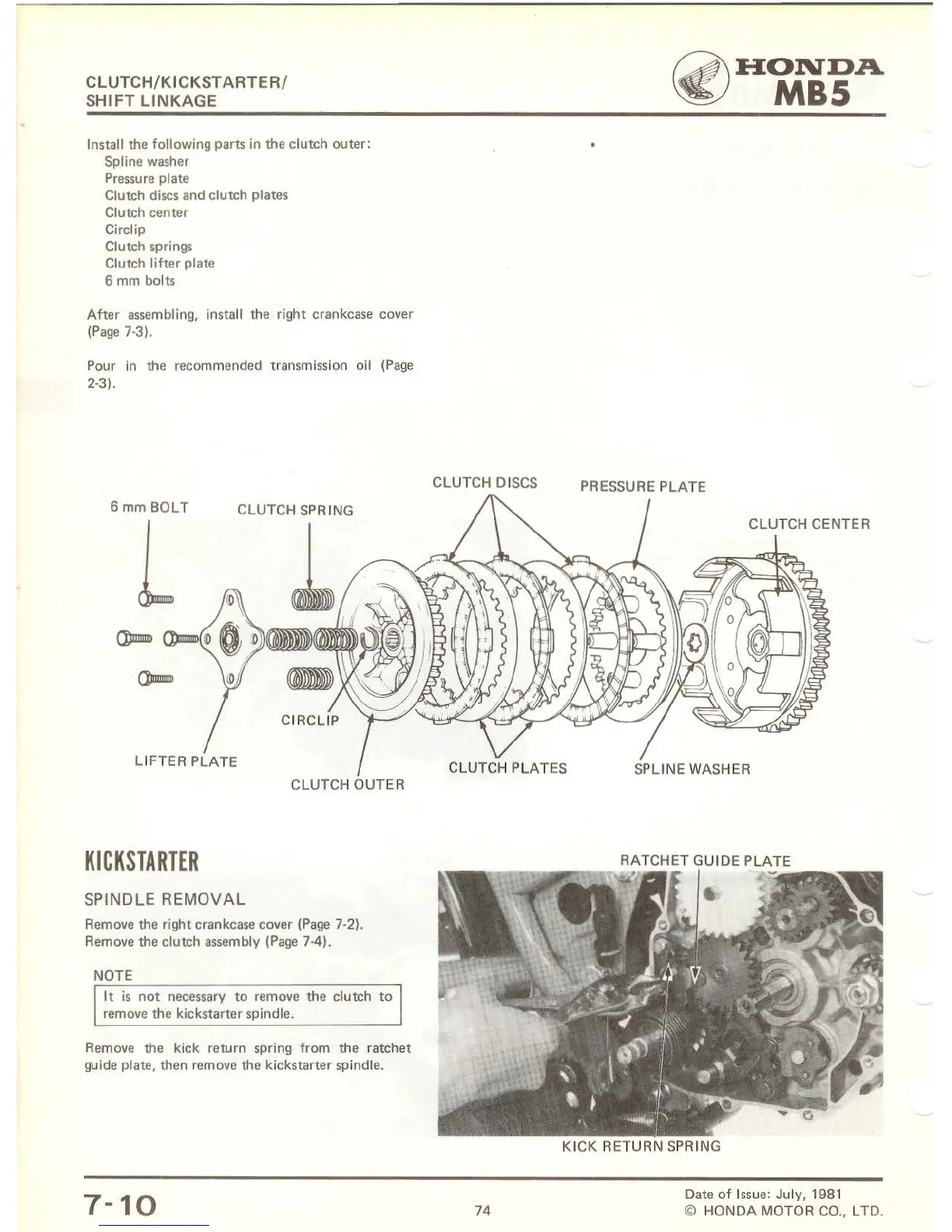

CLUTCH/KICKSTARTER/
SHIFT LINKAGE
Install the following parts in the clutch outer:
Spline washer
Pressure
plate
Clutch
discs
and clutch plates
Clutch center
Circlip
Clutch springs
Clutch
lifter
plate
6 mm bolts
After
assembling, install the right crankcase cover
(Page
7-3).
Pour in the recommended transmission oil
(Page
2-3).
6mmBOLT
CLUTCH SPRING
L
~
LIFTER
PLATE
CLUTCH OUTER
KICKSTARTER
SPINDLE
REMOVAL
Remove
the right crankcase cover
(Page
7-2).
Remove
the clutch assembly
(Page
7-4).
NOTE
It
is
not
necessary
to
remove the clutch
to
remove the kickstarter spindle.
Remove the kick return spring
from
the ratchet
guide
plate, then remove the kickstarter spindle.
7-10
CLUTCH DISCS
74
~HONDA
~
MBS
PRESSURE PLATE
CLUTCH
CENTER
RATCHET GUIDE PLATE
~l
KICK
RETURN SPRING
Date
of
I
ssue:
July, 1981
©
HONDA
MOTOR
CO.,
L TO.
