FUEL SYSTEM (Programmed Fuel Injection)
6-11

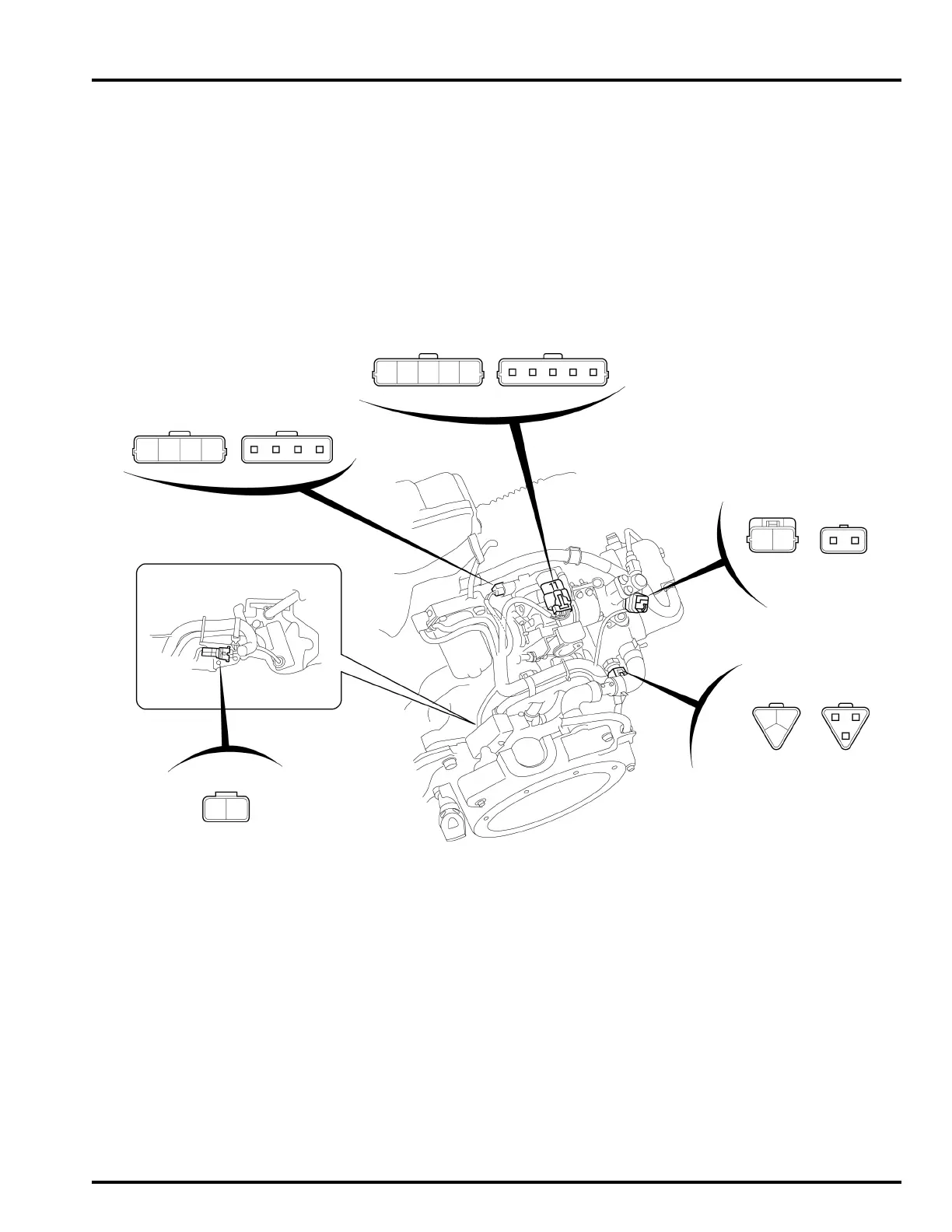

CONNECTOR LOCATION
NOTE 1: Remove the luggage box (page 3-8).
ECT SENSOR 3P (Gray)
CONNECTOR
(NOTE 1)
IACV 4P CONNECTOR
(NOTE 1)
O2 SENSOR 2P CONNECTOR
(NOTE 1)
SENSOR UNIT 5P
CONNECTOR (NOTE 1)
Wire side of
female terminal
Sensor side of
male terminal
Wire side of
female terminal
Sensor side of
male terminal
Wire side of
male terminal
Wire side of
female
terminal
Sensor side
of male
terminal
INJECTOR 2P
CONNECTOR
(NOTE 1)
Wire side of
female
terminal
Injector side
of male
terminal
