FUEL SYSTEM (Programmed Fuel Injection)
6-49

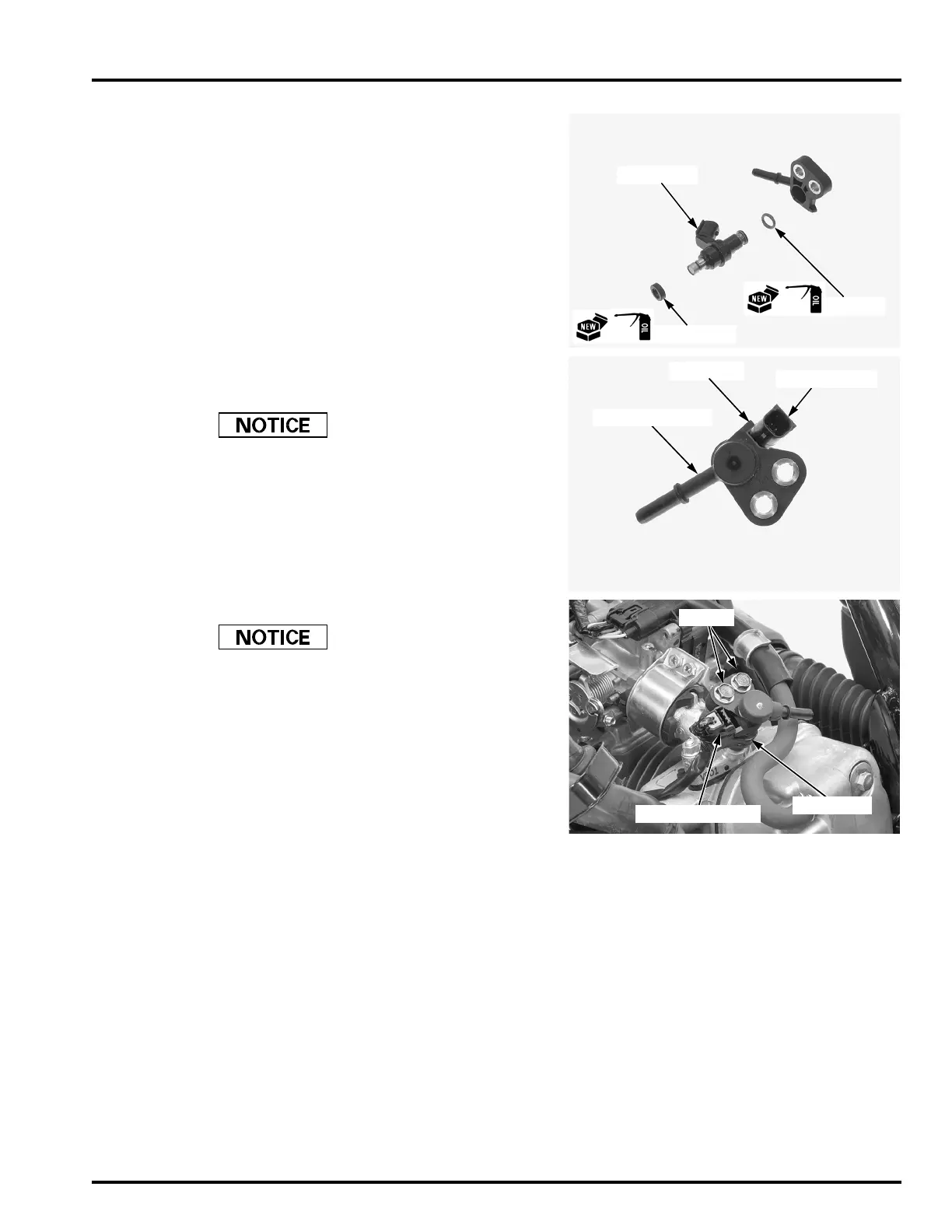

INSTALLATION
Coat the new O-ring and seal ring with engine oil.
Install the O-ring and seal ring to the injector.
• Replace the O-ring and seal ring with new ones
as a set.
• Be careful not to damage the O-ring and seal
ring.
Install the fuel feed pipe to the injector so that con-
nector is between the stopper and body of the feed
pipe.
Be careful not to allow dirt and debris between the
fuel feed pipe and O-ring.
Install the injector to the intake pipe.
Be careful not to allow dirt and debris between the
intake pipe and seal ring.
Install and tighten the bolts.
Connect the injector 2P connector.
Connect the quick connect fitting (page 6-33).
STOPPER
FUEL FEED PIPE
CONNECTOR
BOLTS
INJECTOR
2P CONNECTOR
To Next Page
