FUEL SYSTEM (Programmed Fuel Injection)
6-55
INSTALLATION

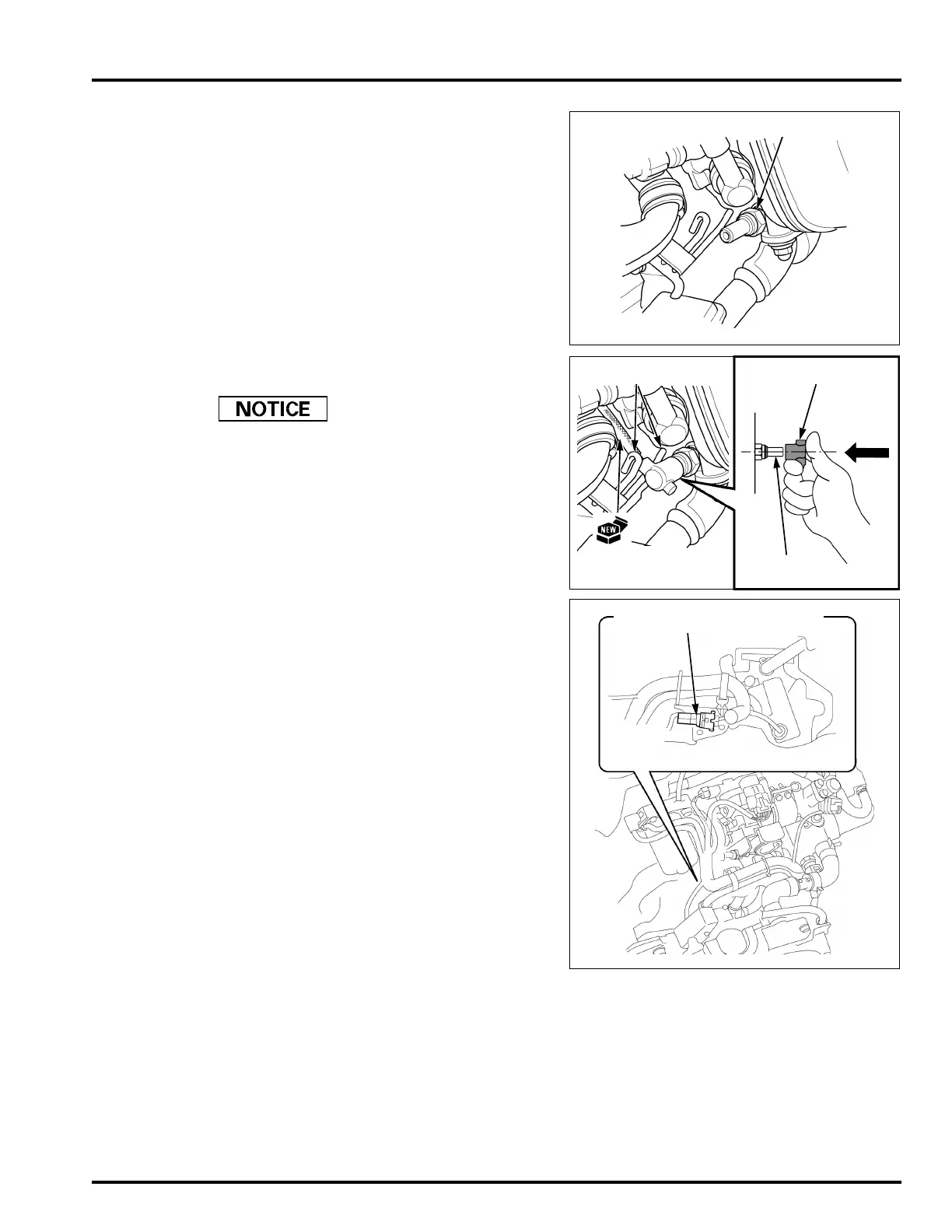

Install and tighten the O2 sensor to the cylinder head
to the specified torque.
Connect the O2 sensor cap by installing a new O2
sensor cord between the wire guide legs.
• Take care not to tilt the O2 sensor cap when con-
necting the cap to the O
2 sensor.
• Do not turn the O
2 sensor cap, after connecting it.
Connect the O2 sensor 2P connector.
After installation, make sure the exhaust gas does
not leak.
Install the following:
– Floor panel side cover (page 3-5)
– Luggage box (page 3-8)
TORQUE: 25 N·m (2.5 kgf·m, 18 lbf·ft)
WIRE GUIDE LEGS
O2 SENSOR
O2 SENSOR
CORD
O2 SENSOR CAP
To Next Page
