FINAL REDUCTION
12-13

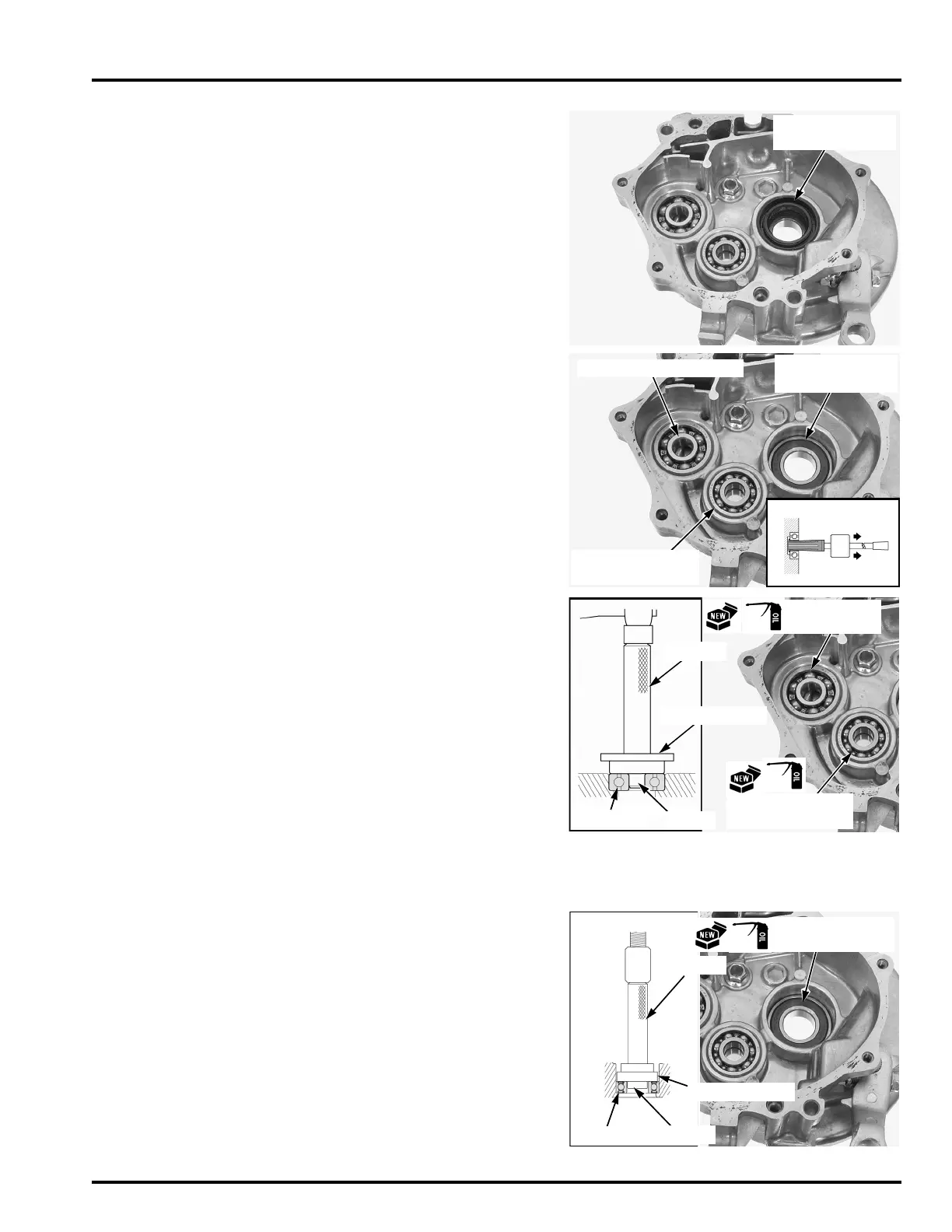

FINAL REDUCTION CASE
Remove the final gear shaft oil seal.
Be careful not to
damage the final
reduction case mat-
ing surface.
Remove the final gear shaft bearing.
Remove the driveshaft and countershaft bearings
using the special tools.
Apply engine oil to the bearing cavity.
Drive a new driveshaft bearing into the final reduction
case squarely with its marked side facing up until it is
fully seated, using the special tools.
Drive a new countershaft bearing into the final reduc-
tion case squarely until it is fully seated, using the spe-
cial tools.
Apply engine oil to the bearing cavity.
Press a new driveshaft bearing into the final reduction
case squarely with its marked side facing up until it is
fully seated, using the special tools and hydraulic
press.
FINAL GEAR
SHAFT OIL SEAL
TOOLS:
Bearing remover head, 12 mm 07936-1660110
Bearing remover shaft, 12 mm 07936-1660120
Remover weight 07741-0010201
COUNTERSHAFT
BEARING
DRIVESHAFT BEARING
FINAL GEAR
SHAFT BEARING
TOOLS:
Driver 07749-0010000
Attachment, 37 x 40 mm 07746-0010200
Pilot, 12 mm 07746-0040200
TOOLS:
Driver 07749-0010000
Attachment, 32 x 35 mm 07746-0010100
Pilot, 12 mm 07746-0040200
COUNTERSHAFT
BEARING
DRIVESHAFT
BEARING
BEARING
ATTACHMENT
DRIVER
PILOT
TOOLS:
Driver 07749-0010000
Attachment, 40 x 42 mm 07746-0010900
Pilot, 20 mm 07746-0040500
FINAL GEAR
SHAFT BEARING
DRIVER
ATTACHMENT
PILOT
BEARING
