Brake System

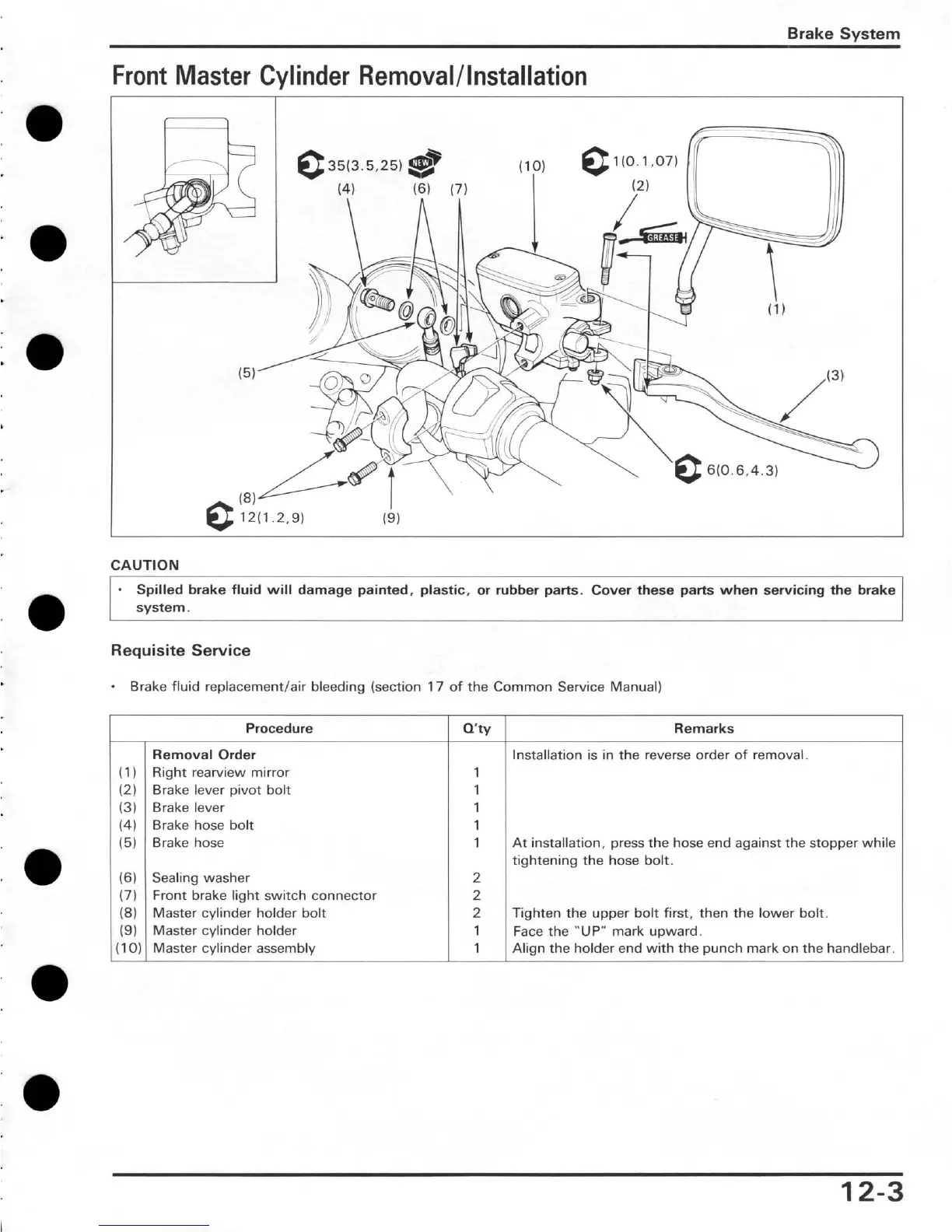

Front Master Cylinder Removal/lnstallation
CAUTION
-
Spilled brake fluid
will
damage painted. plastic, or rubber parts. Cover these parts when servicing the brake
system.
Requisite Service
-
Brake fluid replacementlair bleeding (section
17
of the Common Service Manual)
1
Procedure
Removal Order
Right
rearview mirror
Brake lever pivot bolt
Brake lever
Brake hose bolt
Brake hose
Sealing washer
Front brake light switch
connectol
Master cylinder holder bolt
Master cylinder holder
Master cylinder assembly
Remarks
/
Installation is in the reverse order of removal
At installation, press the hose end against the stopper while
tightening the hose bolt.
2
Tighten the upper bolt first, then the lower bolt.
1
Face the
"UP"
mark upward.
1
Align the holder end with the punch mark on the handlebar.
