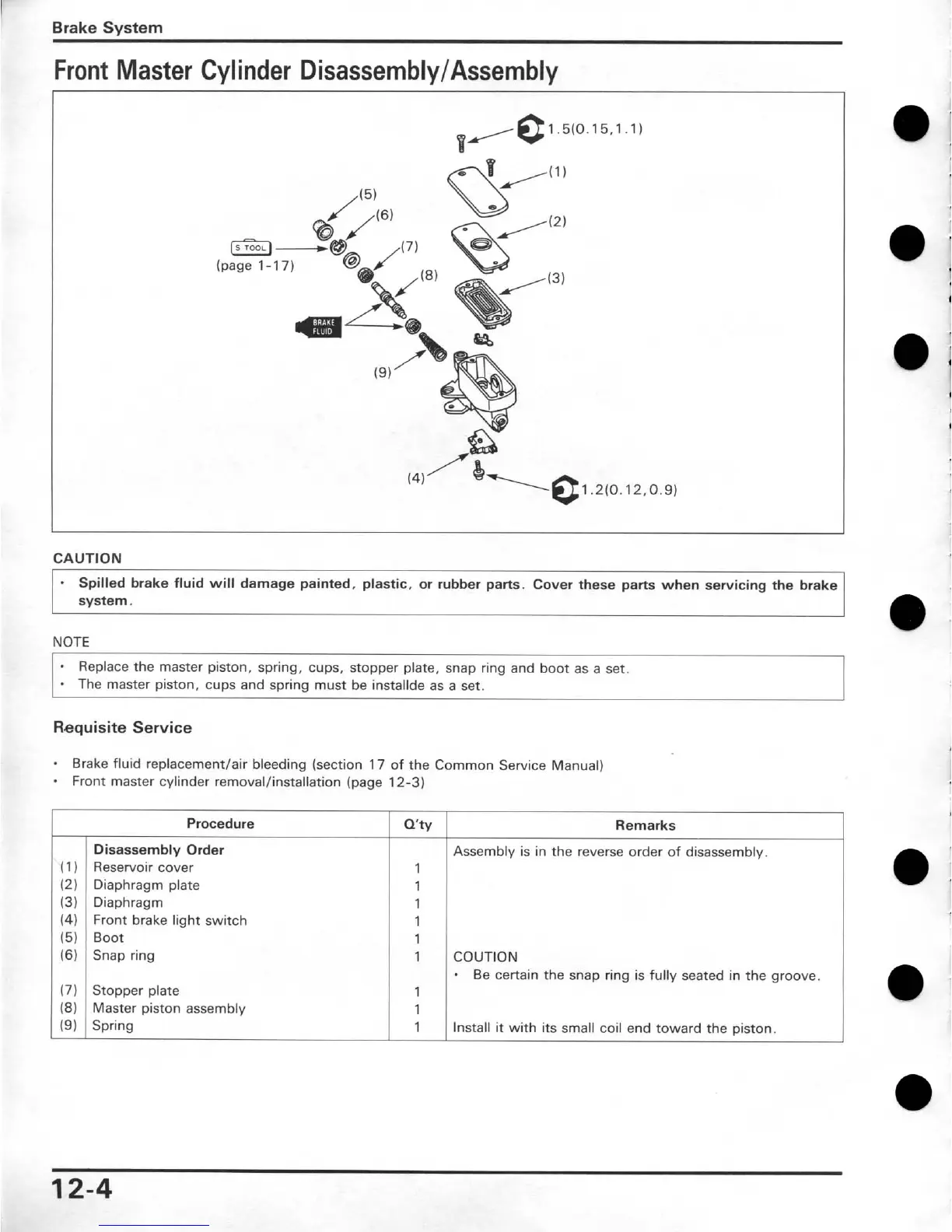

Brake System
Front Master Cylinder Disassembly/Assembly
0'
1
I
1
,
I
.
j
CAUTION
I
.
Spilled brake fluid will damage painted, plastic, or rubber parts. Cover these Darts when servicins the brake
/
-
system.
NOTE
Replace the master piston, spring. cups, stopper plate, snap ring and boot as a set.
-
The master piston, cups and spring must be installde as a set.
Requisite Service
Brake fluid replacementlair bleeding (section 17 of the Common Service Manual)
Front master cylinder
removal/installation (page 12-3)
Procedure
Q'W
Remarks
Disassembly Order
Assembly is in the reverse order of disassembly.
Y
1
)
ReSe~oir cover 1
12) Diaphragm plate
1
(3) Diaphragm
1
(4) Front brake light switch 1
(5) Boot
1
(6) Snap ring
1
COUTION
Be certain the snap ring is fully seated in the groove.
(7)
Stopper plate
1
(8)
Master piston assembly 1
19) Spring
1 Install
it
with its small coil end toward the piston.
To Next Page
