lanition Svstem

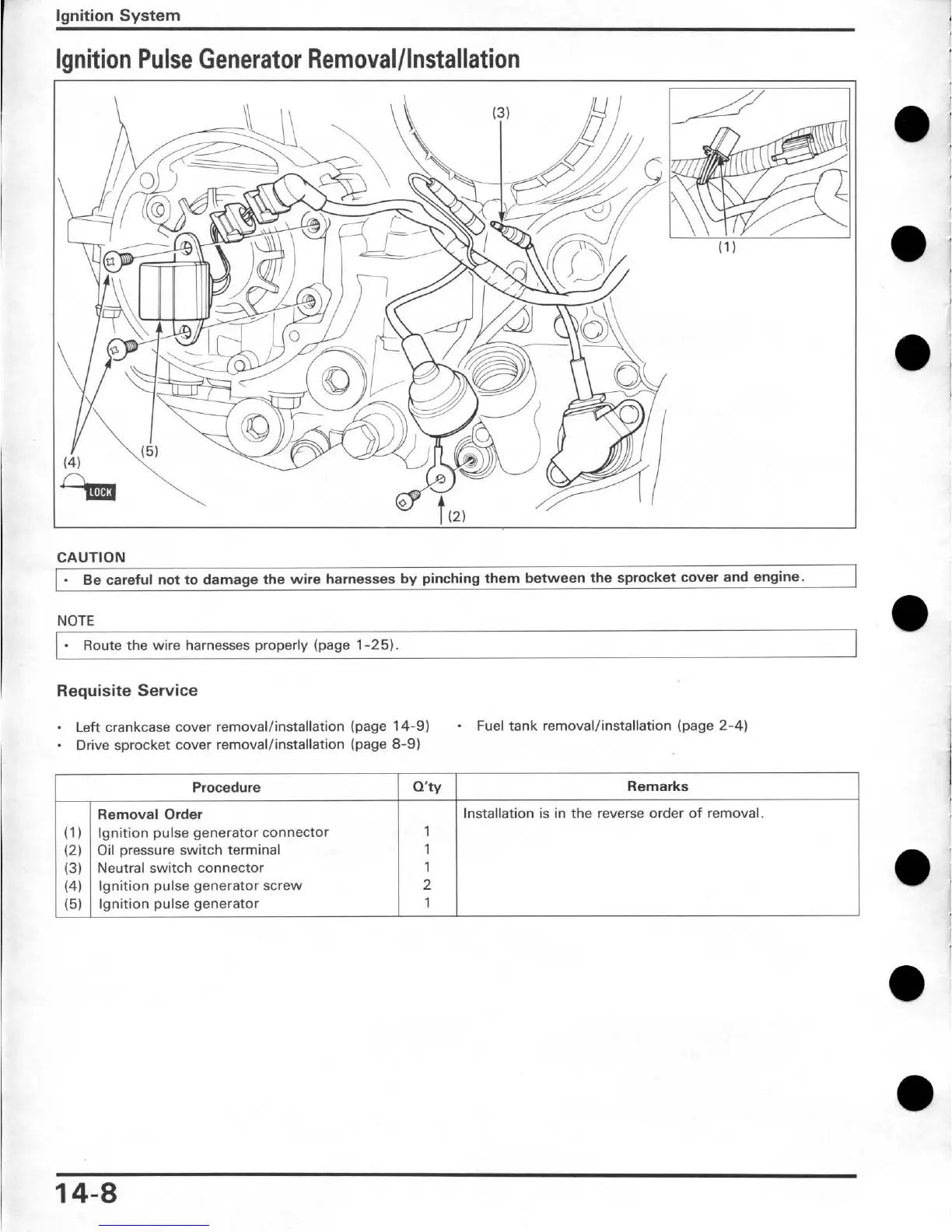

Ignition Pulse Generator Removal/lnstallation

CAUTION

Be careful not to damage the wire harnesses by pinching them between the sprocket cover and engine.

NOTE

Route the wire harnesses properly (page 1-25).

Requisite Service

Left crankcase cover removal/installation (page 14-9)

Fuel tank removal/installation (page 2-4)

Drive sprocket cover removal/installation (page 8-9)

Procedure

Q'W

(1)

(2)

(3)

(4)

(5)

Remarks

Installation is in the reverse order of removal.

Removal Order

Ignition pulse generator connector

Oil pressure switch terminal

Neutral switch connector

Ignition pulse generator screw

Ignition pulse generator
