BRAKE SHOE WEAR
Refer to the Safety Precautions on page 83 .
The rear brake
is equipped with a brake
wear indicator.
When the brake is applied, an arrow (1)
attached to the brake arm (2) moves
toward a reference mark (3)
on the brake
panel (4).
If the arrow aligns with the
reference mark on full application of the
brake, the brake shoes must be replaced.
See your Honda dealer for this service.
When the brake service is necessmy, see
yonr Honda dealer. Use only Honda
Genuine Parts or its equivalent.
106

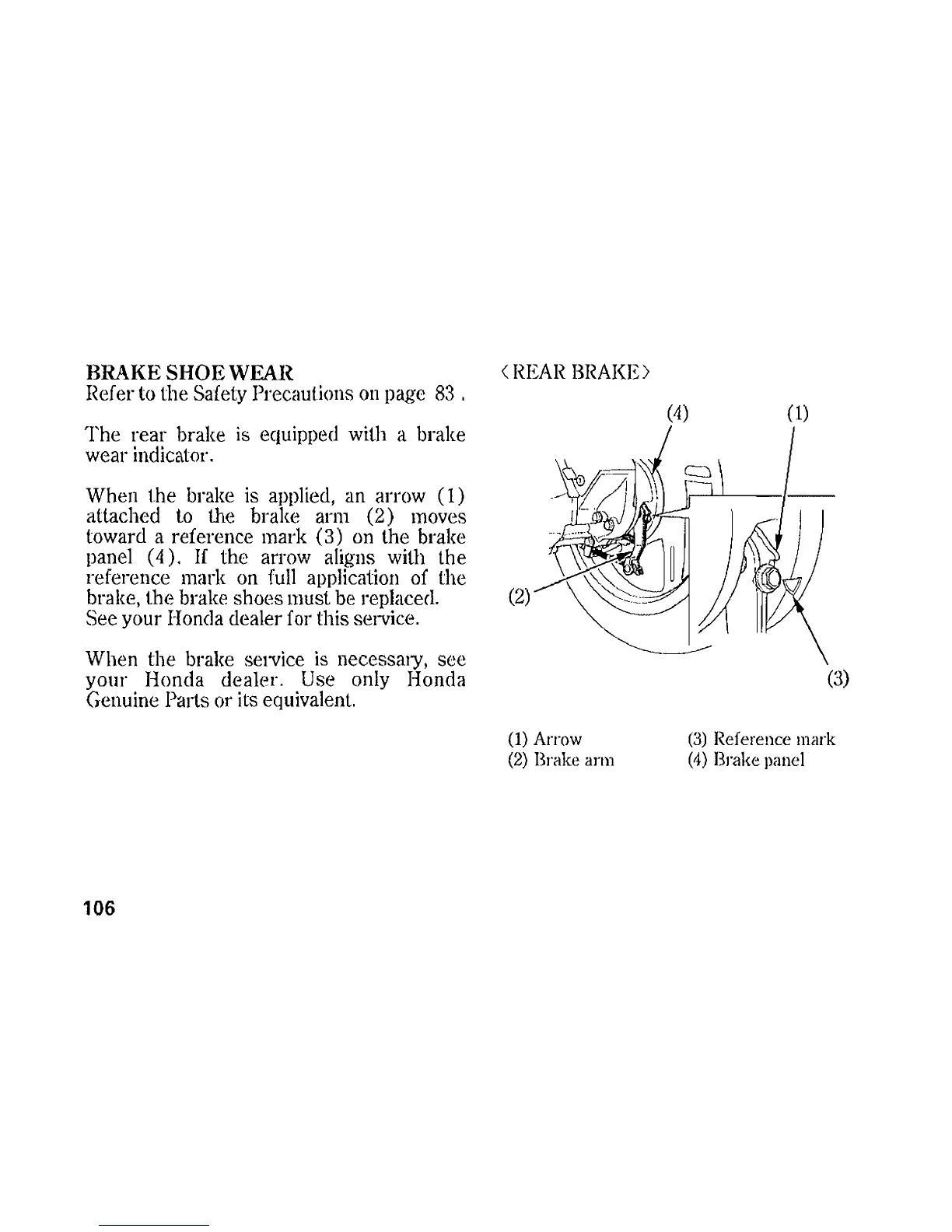

(REAR BI,AKE)
(2)
(1) Arrow
(2) Brake ann
(3)
(3) Reference mark
(4) Brake panel
